Huadong Cable Group can custom the 1/35kv single core, 3core, 4 core 120mm, 150mm, 240mm, 300mm, 400mm, 630mm xlpe/pvc cable base on differ internation standard.

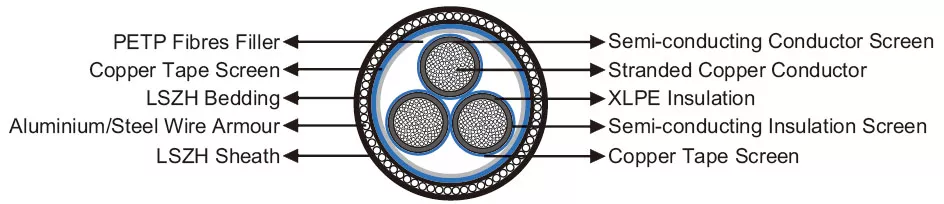

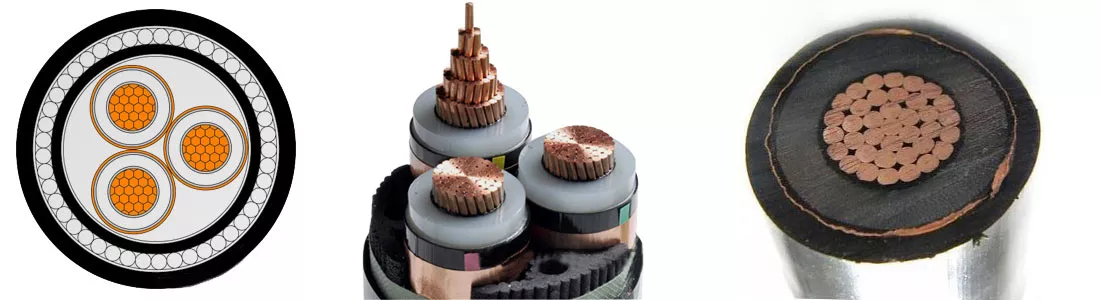

1.8KV~35KV 120mm, 150mm, 185mm, 240mm, 300mm, 400mm, 630mm XLPE Armoured Cable
Voltage: 1.8/3KV,3.6/6KV,6/10KV,10KV,11KV,15kv,8.7/15KV, 18/30KV,19/33KV, 26/35KV
Conductor: Aluminum/Copper/Tinned Copper for class 2.
Cores: Single core or 3 Core
Cross-sectional area: 25mm, 35mm, 50mm, 70mm, 95mm, 120mm, 150mm, 185mm, 240mm, 300mm, 400mm, 630mm.
Insulation: XLPE
Outer sheath: PE/PVC
Armoured: 1. Galvanized steel wires/steel tape for 3 core;
2. Stainless steel wire/Steel tape or Aluminium wire/tape for single core.
Internation Standards: Bs6622, Bs7835, Bs7870, ASTM, IEC60502 Etc. or according to your requirement.
Application: suitable for direct burial in the ground, building, substation, power engineering, power install and so on.
Get quote by email: trade@huadongcablegroup.com

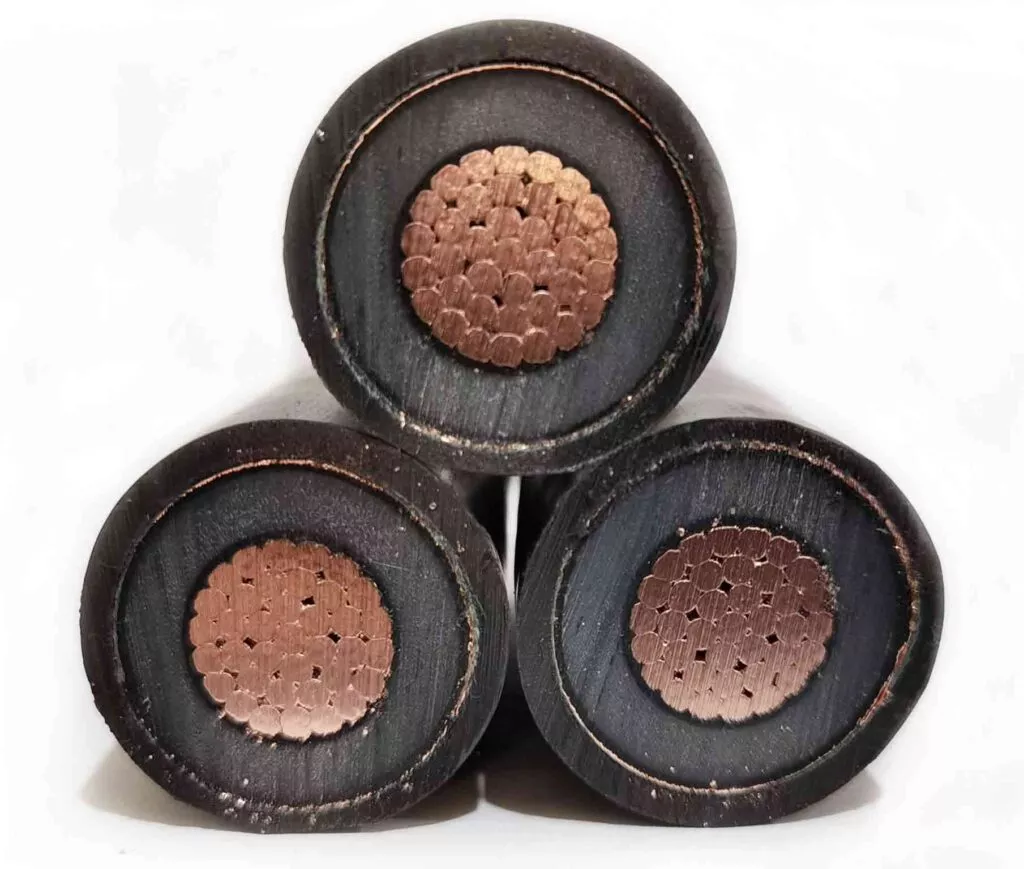

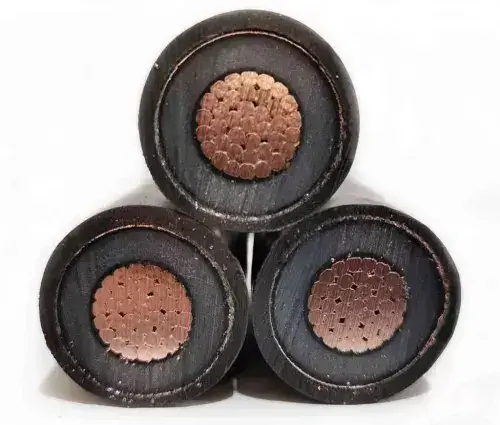

Our 10kV, 11kV, 20kV, 30kV and 33kV cables are available in the following cross-sectional size ranges. Larger sizes are available upon request.
| 10kV single core | 35mm2 to 500mm2 |
| 10kV 3-core | 35mm2 to 240mm2 |
| 11kV single core | 50mm2 to 1000mm2 |
| 11kV 3-core | 35mm2 to 400mm2 |
| 20kV single core | 50mm2 to 500mm2 |
| 30kV single core | 50mm2 to 500mm2 |
| 33kV single core | 70mm2 to 1000mm2 |

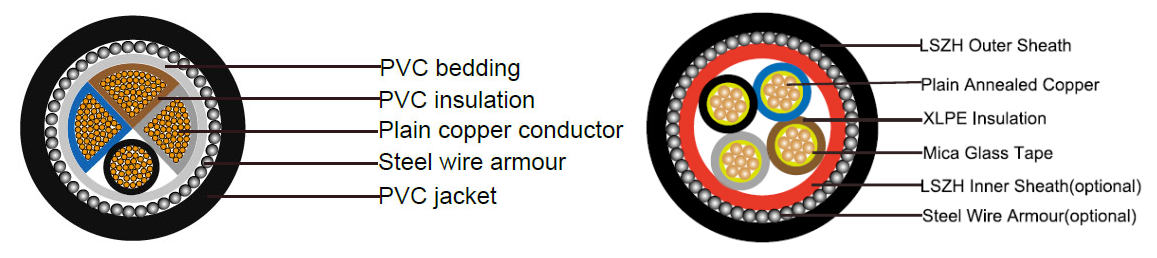

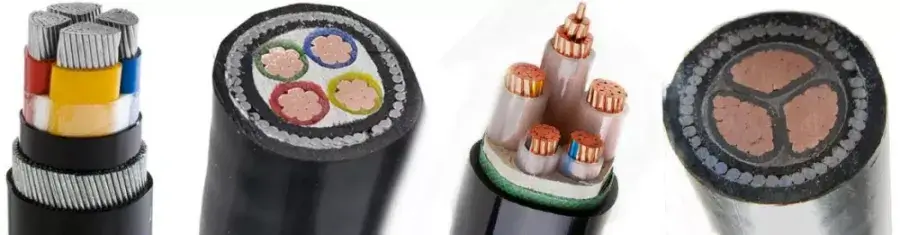

0.6/1kv 120mm, 150mm, 185mm, 240mm, 300mm, 400mm, 630mm XPE/PVC Armoured Cable
Voltage: 0.6/1kv
Core: 1,2,3,4,5,3+1,3+2,4+1, cores
Conductor: Cu or Aluminum/Tinned Copper
Sheath Color: Black or Colors
Insulated: PVC/XLPE
Sheath: PVC, PE or LSZH
Feature: Flame retardant PVC insulated PVC sheathed power cable (FR/PVC/PVC Cable)
Standard: IEC60502,BS 7870,GB/T12706 or other standard can customized.
Application: It applies to electrical power transmission and distribution lines with AC rated voltage U0/U up to and including 0.6/1 kV. For outdoor and indoor installation in damp and wet locations.
Get quote by email: trade@huadongcablegroup.com
| Type | No. of Cores | Nominal cross-section of conductor mm2 |
| Cu(AL)/XLPE/PVC(PE) | 1 | 1.5mm2-1000mm2 |
| Cu(AL)/XLPE/ATA/PVC(PE)Cu(AL)/XLPE/AWA/PVC(PE) | ||
| Cu(AL)/XLPE/STA/PVC(PE) | 2, 3, 4, 5 | 1.5mm2-400mm2 |
| Cu(AL)/XLPE/SWA/PVC(PE) | ||
| Cu(AL)/XLPE/SWA/ATA/PVC(PE) | 3+1, 4+1, 3+2 | 2.5mm2 -400mm2 |
Get quote by email: trade@huadongcablegroup.com
BS 6622 Standard 1Core 3Core Medium Voltag XLPE/PVC Cable Parameter Data:
| NO. OF CORES |
NOMINAL CROSS SECTIONAL AREA mm2 |
CONTINUOUS CURRENT RATING (Amps) | |||||
| In Ground | In Ducts | In Air | |||||
| Trefoil | Flat | Trefoil | Flat | Trefoil | Fla | ||
| 1 | 50 | 220 | 230 | 220 | 220 | 250 | 300 |
| 1 | 70 | 270 | 280 | 260 | 270 | 310 | 370 |
| 1 | 95 | 320 | 335 | 305 | 325 | 375 | 460 |
| 1 | 120 | 360 | 380 | 340 | 370 | 430 | 530 |
| 1 | 150 | 410 | 430 | 375 | 410 | 490 | 600 |
| 1 | 185 | 455 | 485 | 410 | 460 | 550 | 690 |
| 1 | 240 | 520 | 560 | 470 | 540 | 650 | 820 |
| 1 | 300 | 580 | 640 | 500 | 610 | 740 | 940 |
| 1 | 400 | 650 | 730 | 530 | 690 | 840 | 1100 |
| 1 | 500 | 710 | 830 | 570 | 780 | 930 | 1280 |
| 1 | 630 | 760 | 940 | 620 | 890 | 1040 | 1480 |
| 3 | 25 | 140 | 140 | 125 | 125 | 145 | 145 |
| 3 | 35 | 170 | 170 | 150 | 150 | 175 | 175 |
| 3 | 50 | 210 | 210 | 180 | 180 | 220 | 220 |
| 3 | 70 | 250 | 250 | 215 | 215 | 270 | 270 |
| 3 | 95 | 300 | 300 | 255 | 255 | 330 | 330 |
| 3 | 120 | 340 | 340 | 290 | 290 | 380 | 380 |
| 3 | 150 | 380 | 380 | 330 | 330 | 430 | 430 |
| 3 | 185 | 430 | 430 | 370 | 370 | 490 | 490 |
| 3 | 240 | 500 | 500 | 430 | 430 | 570 | 570 |
| 3 | 300 | 540 | 540 | 470 | 470 | 650 | 650 |
The package of armoured power cable from Huadong Cable Group
