38/66kV, 64/110kV, 76/132kV, 127/220kV High Voltage EHV Cable

As an ultra-high voltage cable, Hunever stops researching, designing, developing and manufacturing higher quality products to meet the changing needs of daily life and industry. We are committed to developing and providing solutions to meet customers’ needs and challenges, which our customers highly appreciate. We look forward to working with you.

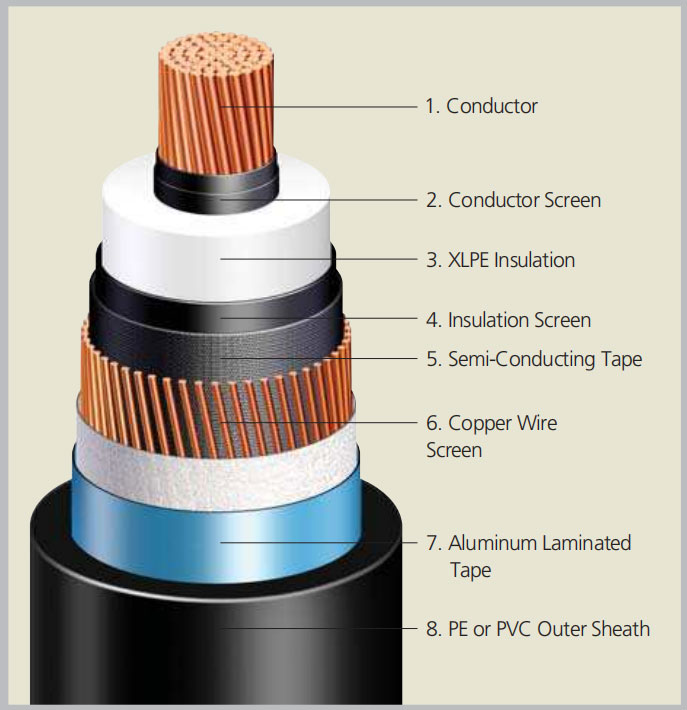

38/66kV, 64/110kV, 76/132kV, 127/220kV Copper Wire Screen AL-Tape PE/PVC Sheath HV Cable

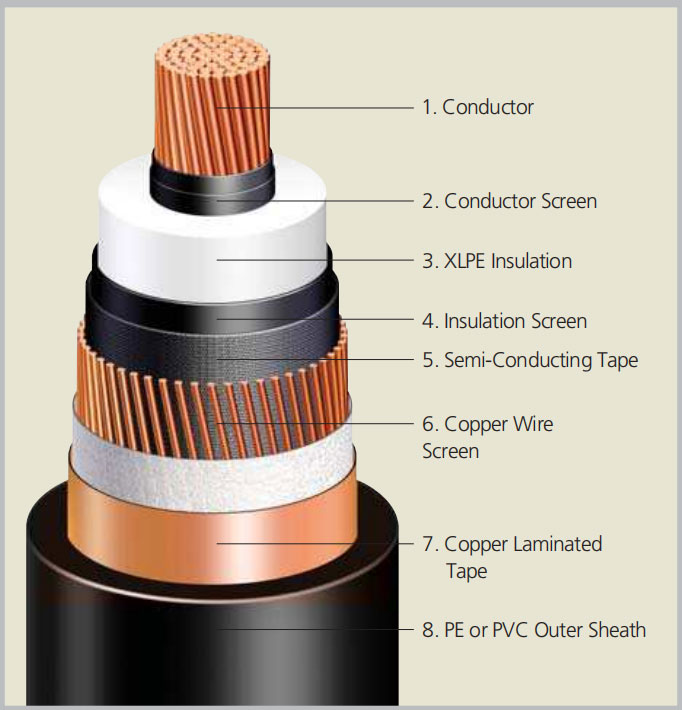

38/66kV, 64/110kV, 76/132kV, 127/220kV Copper Wire Screen Copper-Tape PE/PVC Sheath HV Cable

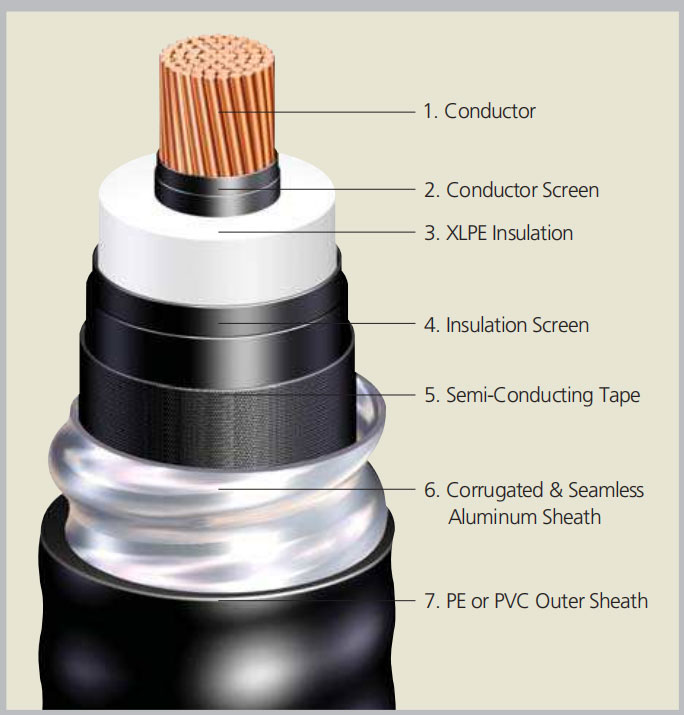

38/66kV, 64/110kV, 76/132kV, 127/220kV XLPE Insulated Corrugated AL Sheath E HV Cable

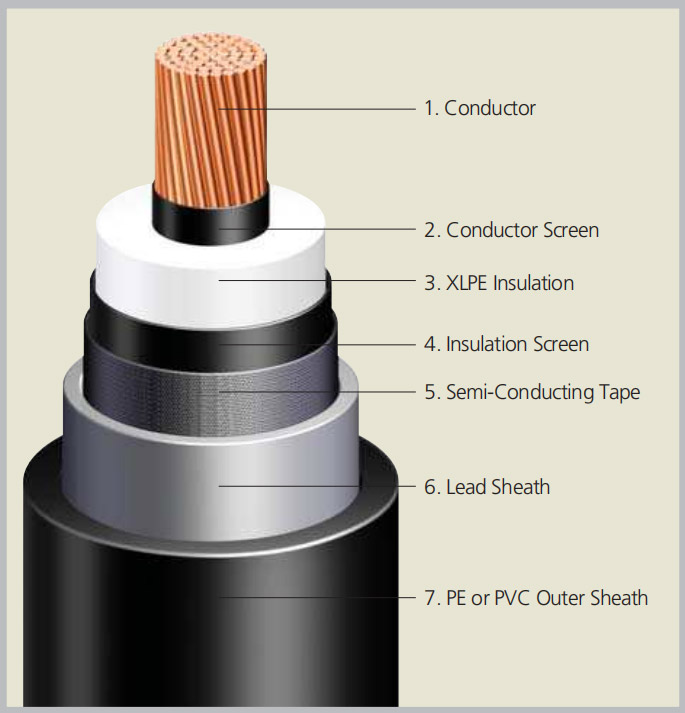

38/66kV, 64/110kV, 76/132kV, 127/220kV XLPE Insulated Lead Sheath HV High Voltage Cable

Send More details by Email: trade@huadongcablegroup.com

Parameter of 38/66kV Copper Wire Screen AL-Tape PE/PVC Sheath HV Cable

Nominal Area	Outer sheath thickness (Nominal)	Overall Diameter (Approx.)	App. Weight (Aluminium)	App. Weight (Copper)	Approx. Capacitance
mm2	mm	mm	kg/m	kg/m	μF/km
95	2.3	48	2.2	3	0.15
120	2.4	50	2.5	3.5	0.16
150	2.4	51	2.8	4.1	0.16
185	2.5	53	3.1	4.8	0.18
240	2.6	56	3.7	5.7	0.19
300	2.7	59	4.3	6.3	0.2
400	2.8	62	4.9	7.1	0.22
500	2.9	65	5.3	8.2	0.24
630	3	69	5.9	9.6	0.26
800	3.2	73	6.6	11.3	0.29
1000	3.3	77	7.3	13.2	0.31
1200	3.4	84	8.4	15.6	0.36

Parameter of 127/220kV XLPE Insulated Corrugated Aluminum Sheath E HV High Voltage Cable

Nominal Area	Alu. sheath thickness (Minimum)	Outer sheath thickness (Nominal)	Overall Diameter (Approx.)	App. Weight (Aluminium)	App. Weight (Copper)	Approx. Capacitance
mm2	mm	mm	mm	kg/m	kg/m	μF/km
400	2	3.8	108	8.5	10.8	0.13
500	2.1	3.9	112	9.3	12.2	0.14
630	2.1	4	116	10.1	13.8	0.15
800	2.2	4.1	121	11.2	16	0.16
1000	2.3	4.3	126	12.3	18.3	0.17
1200	2.3	4.4	132	13.7	20.9	0.19
1400	2.4	4.5	137	14.9	23.2	0.2
1600	2.5	4.6	141	16.1	25.5	0.21

Parameter of 76/132kV XLPE Insulated Lead Alloy Sheath HV Cable

Lead sheath thickness (Minimum)	Outer sheath thickness (Nominal)	Overall Diameter (Approx.)	App. Weight (Aluminium)	App. Weight (Copper)	Approx. Capacitance
mm	mm	mm	kg/m	kg/m	μF/km
2.3	3.2	76	9.4	11.4	0.14
2.4	3.3	79	10.4	12.4	0.15
2.4	3.4	82	11.3	13.5	0.16
2.5	3.5	85	12.2	15.2	0.17
2.6	3.6	89	13.3	17.1	0.18
2.7	3.8	93	14.7	19.6	0.2
2.8	3.9	97	16.1	22	0.22
2.9	4	104	18.1	25.3	0.24
3	4.1	108	19.6	27.8	0.26
3.1	4.2	112	20.9	30.4	0.27
3.3	4.4	119	23.8	35.7	0.29
