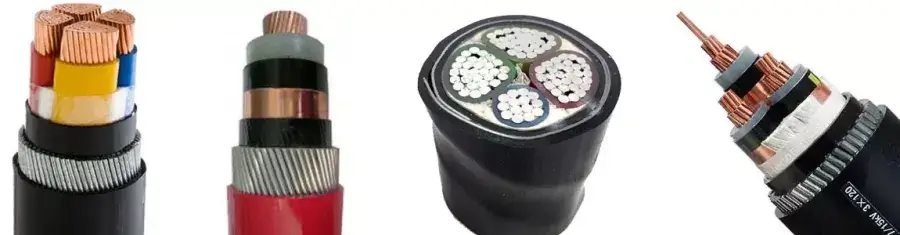

Huadong Cable Group is a leading aluminium wire armoured(AWA) and steel wire armoured(SWA) cable and steel tap armoured cable (STA) supplier in China. Offering a comprehensive range of robust and hard-wearing 16mm2 ~630mm2 Low Voltage armoured and Medium Voltage armoured cables. The armoured cable including:0.6/1kv and1/35Kv underground armoured cable, Insturment armoured cable, Teck90 armoured cable and so on.
16mm2~630mm2 0.6/1kv and 1/35kv Undergroud Armoured Power Cable

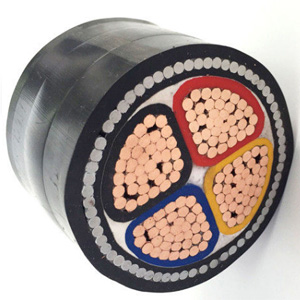

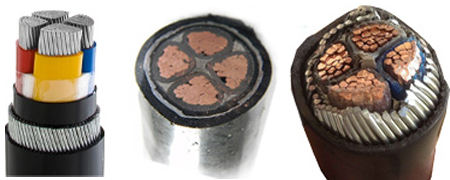

0.6/1kv 10~630mm Aluminum/Copper STA/SWA Armoured Undergroup Power Cable
- Voltage: 0.6/1kv
- Core: 1,2,3,4,5,3+1,3+2,4+1, cores
- Sectional area: 10mm, 16mm, 25mm, 35mm, 50mm, 70mm, 95mm, 120mm, 150mm, 185mm, 240mm, 300mm, 400mm, 630mm.
- Conductor: Cu or Aluminum/Tinned Copper
- Sheath Color: Black or Colors
- Insulated: PVC/XLPE
- Sheath: PVC, PE or LSZH
- Feature: Flame retardant PVC insulated PVC sheathed power cable (FR/PVC/PVC Cable)
- Standard: IEC60502,BS 7870,GB/T12706 or other standard can customized.
- Application: It applies to electrical power transmission and distribution lines with AC rated voltage U0/U up to and including 0.6/1 kV. For outdoor and indoor installation in damp and wet locations.
1/35kv 25~630mm Aluminum/Copper AWA/SWA/AWA Armoured Undergroup Cable
- Voltage: 1.8/3KV,3.6/6KV,6/10KV,10KV,11KV,15kv,8.7/15KV, 18/30KV,19/33KV, 26/35KV
- Conductor: Aluminum/Copper/Tinned Copper for class 2.
- Cores: Single core or 3 Core
- Sectional area: 25mm, 35mm, 50mm, 70mm, 95mm, 120mm, 150mm, 185mm, 240mm, 300mm, 400mm, 630mm.
- Insulation: XLPE
- Outer sheath: PE/PVC
- Armoured: 1. Galvanized steel wires/steel tape for 3 core;
- 2. Stainless steel wire/Steel tape or Aluminium wire/tape for single core.
- Internation Standards: Bs6622, Bs7835, Bs7870, ASTM, IEC60502 Etc. or according to your requirement.
- Application: suitable for direct burial in the ground, building, substation, power engineering, power install and so on.

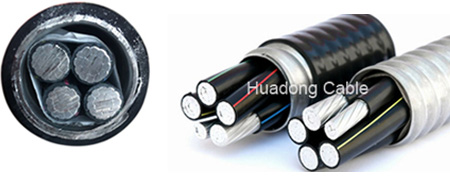

AC/ACWU 90 Teck 90 Aluminum Alloy Interlock Armoured Cable
A(–40°C) XLPE 600 Volts 90°C AC/ACWU90 Aluminum Alloy Cable
- Voltage: 0.6/1kv,1/35kv
- Size AWG or kcmil: 1/0awg, 2/0awg, 3/0awg, 1,2,4,6,8Awg
- Core: 2core,3core,4core, 5core
- Sectional area: 25mm2~630mm2
- Conductor: Aluminium alloy
- Sheath Color: Black or other
- Insulated: PVC/XLPE
- Sheath: PVC, PE or LSZH
- Feature: Flame retardant PVC insulated PVC sheathed power cable (FR/PVC/PVC Cable)
- Application: For exposed and concealed wiring in dry or wet locations and where exposed to the weather.For use in ventilated, non-ventilated and ladder type cable trays in wet and dry locations.

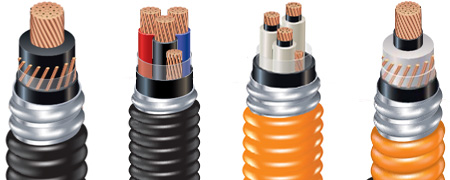

Teck 90 1/5kv Aluminum 1Core 3Core Interlocked Armored Power
- Voltage: 1kV, 5KV
- Conductor: coppper
- Cores: Single core or 4 core, 4+1 core.
- Size:1AWG,2AWG,3AWG,4AWG,6AWG,8AWG
- Insulation: XLPE
- Inner jacket: PVC
- Outer sheath: Black or Orange PVC (optional colours available
- Armoured: 1. Aluminum Interlocked Armour (AIA)
- 2. Optional Galvanized Steel Interlocked Armour (GSIA)
- Internation Standards: Bs6622, Bs7835, Bs7870, ASTM, IEC60502 Etc. or according to your requirement.
- Application: suitable for direct burial in the ground, building, substation, power engineering, power install and so on.
(GSW) Armoured Cotrol Cable and Armoured Instrumentation Cable

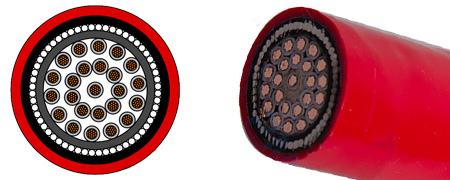

Galvanized Steel Wire (GSW) Armoured Control Cable
- Voltage: 0.6/1kv
- Conductor: Concentric Stranded annealed copper wire
- Insulation: PVC Black color
- Core: 2-30 Core
- Identification: Printed White number on the surface of Black insulation
- Filler: Suitable filler
- Binding tape: Suitable tape
- Inner sheath: PVC Black color
- Armour: Galvanized steel wire
- Outer Sheath: PVC Black color
- Application: the control cables directly transmit electric energy from power distribution points of power system to power connecting lines of various electric equipment and appliances.

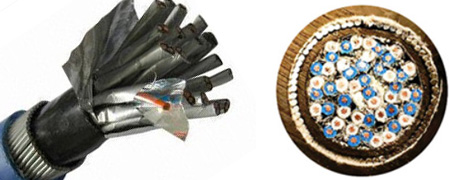

Armoured Overall or Individual+Overall Screen Instrument Cable
- Conductor: plain annealed circular stranded copper.
- Insulation: PE(polyethylene)
- Pairing: two insulated cores shall be uniformly twisted together to form a pair with maximum lay length of 100mm.
- Pair identification: Color code as per appendix A.
- Cabling: twisted pairs are laid up togeter, if necessary filled with non-hygroscopic material compatible with the insulation.
- Overall screening: Accumulated pairs screened with aluminum/mytar tape, helically applied with the metallic side down in electrical contact with a tinned annealed copper drain wire 0.5mm2
- Bedding: PE, color black
- Armoring: Galvanized steel round wire over the bedding.
- Sheath: PVC(polyvinyl chioride)
