Application of rubber cable: These flexible rubber cables are suitable for a wide range of applications including mobile power supplies, light and heavy duty equipment, and submersible pumps, as welding cables providing power from the machine to the tool, for audio visual equipment, and equipment on construction sites. Such as: Mobile, welding, mining, Special machine, Drum, reeling, Crane, Hoist, hoppers, Stacker Reclaime, Elevator, Marine.
Recommended common rubber cables for large machinery

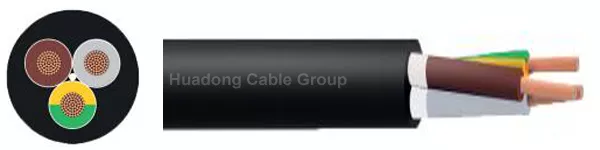

PUR-HF Low Voltage Chain Festoon Cable
- Voltage Rating (Uo/U): 0.6/1kV
- Conductor: Class 5 flexible tinned copper
- Insulation: HF (Halogen Free) compound based on polyester
- Outer Sheath: TPU, PUR HFFR (Polyurethane – Halogen Free, Flame Retardant)
- Temperature Rating:
- Fixed installation: -50°C to +80°C
- Mobile operation: -40°C to +80°C
- Cores: 3,4,5
- Section aera: 1.5mm2-185mm2
- Application: For use as energy and control cable in festoon systems and as a chain cable. Also suitable as drum reeling cable under moderate mechanical stresses, torsion, tension and torque.

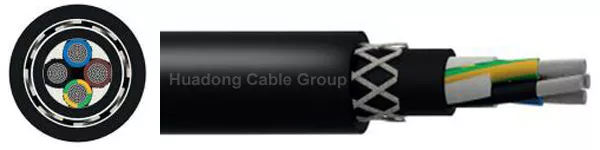

PUR/TPU Spreader LV Reeling Cable
- Voltage Rating (Uo/U): 0.6/1kV
- Conductor: Class 5 flexible tinned copper
- Insulation: Halogen free compound based on polyester
- Lay Up: Central Aramid strength member, cores in concentric layers
- Inner and Outer Sheath: TPU, PUR-HF (Halogen Free, flame retardant Polyurethane)
- Braiding: Anti-twisting element – Aramid yarns braiding
- Sheath Colour: Black, Yellow or Orange.
- Reeling Application: Up to 240m/min horiz. / Up to 180m/min vertica
- Application: Vertical reeling cable under high mechanical stresses, torsion, tension and torque. Mainly used for spreader reeling applications. Strength member to increase tensile load, acceleration and speed
Medium Voltage Material Handling Equipment (N)TSCGEWÖU Cable
- Voltage Rating (Uo/U): 3.6/6kV; 6/10kV, 8.7/15kV, 12/20kV.
- Phase/Earth Conductor: Class 5 flexible tinned copper/Copper
- Insulation: Rubber compound
- Inner Sheath: Rubber compound
- Section area: 25-185mm2
- Cores: 3+3
- Maximum Short Circuit Temperature: 250°C
- Mobile Condition: +25°C to + 80°C
- Static Condition: +40°C to + 80°C
- Application: Flexible cable for fixed distribution lines in mines and alongside material handling equipment. Suitable for indoor and outdoor applications
Hot Sales Rubber Cable Products
The follow cable mainly use for various of mobile equipment such as: Crane Machine, Welding Machine, Drum reeling, Hoppers, Stacker Reclaimer, Shield Machine, Elevator, Marine, Mining and so on.

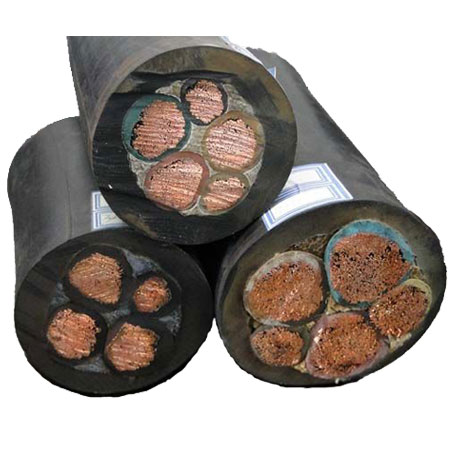

2PNCT-R/F Rubber Cable for Unloader, Stacker & Reclaimer,Crane
- Voltage: 600/1000V, 3000V Or other
- Color: Black or by request.
- Conductor: Flexible Copper/Tinned Copper
- Insulation: Rubber/EPR
- Cores: 1,2, 3, 4, 5, 6, 7, 8 Core and more cores
- Standard: JIS C3327/IEC/VDE etc
- Application: the the application ranges high tension unloader, impact resistance, Stacker & Reclaimer Abrasion Resistance Gantry, Craneetc.
Heavy Duty H07RN-F Rubber Cable for Heavy Mobile Equipment
- Voltage: 450/750V
- Conductor: Class 5 flexible plain copper
- Insulation: EPR)
- Sheath: PCP(Polychioroprene) Type EM3
- Sheath Color: Black
- Minimum Bending Radius: Up to 25mm2:6xoverall diameter;
- Application: use in the supply of energy for portable or mobile equipment. Heavy duty Harmonized cables are not only robust but also extremely flexible.

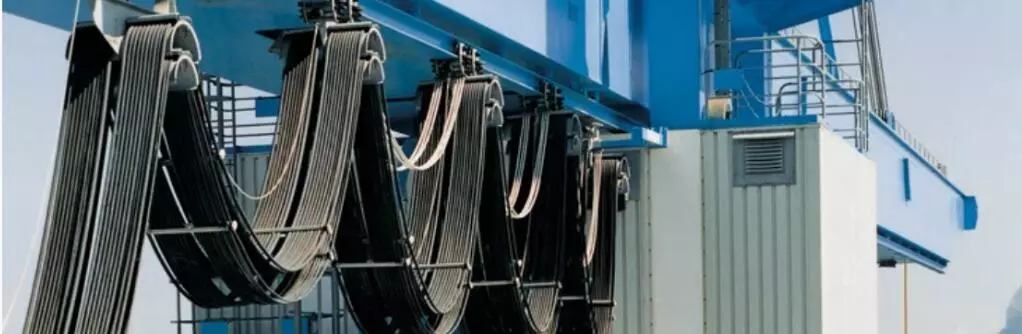

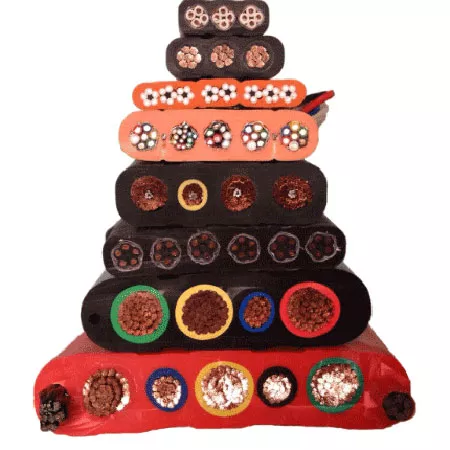

Flat/Round Type Reeling Festoon PUR Crane Rubber Cable
- Voltage: 300/500V; 450/750V; 0.6/1kv
- Types: H07VVH6-F, YFFB, HT-PNCT; HT-PNCT-R;HT-PNCT-F etc.
- Conductor: Copper/Tinned Copper
- Insulation: Rubber/EPR
- Application: For the connection of mobile parts of machine tools, conveyor plants andlarge-scale equipment, if the cable is exposed to bends in only one level (cable trolley).

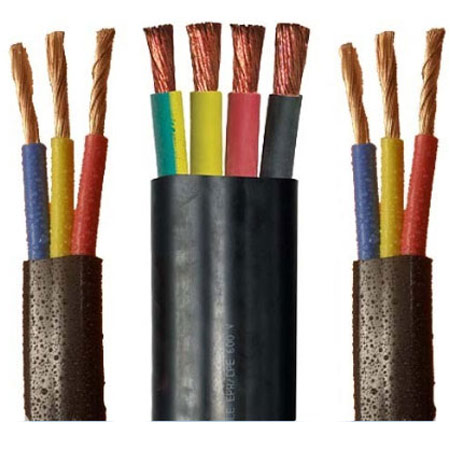

JHS Waterproof Flat and Round Type Submersible Pump Cable
- Voltage: 300/500V, 450/750V, 600/1000V
- Test Voltage: 1.5KV, 2.5KV, 3.5KV etc.
- Type: Flat/Round or twisted
- Conductor Working temperature: 85°C
- Insulation: EPR/PVC/Rubber.
- Ambient temperature: Fixed: -40°C to 90°C; Mobile:-25°C to 90°C
- Application: This cable is suitable for various types of the lead wire of submersible motor.
Recommended Frequently-used Rubber Cable Products

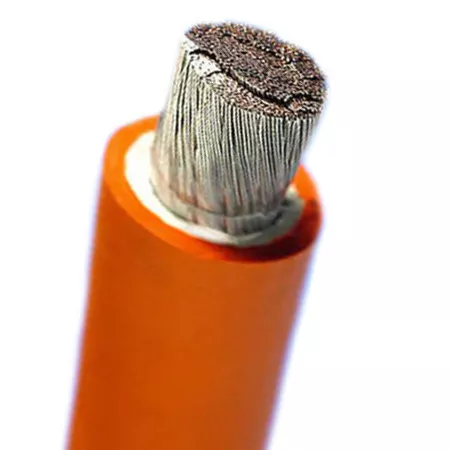

10mm2-120mm2 Flexible Rubber Welding Cable Used for Welding Machine
- Conductor: bare annealed copper flexible conductor for class 5
- Insulated: flexible Single or double insulation of rubber
- Sheath: flexible PVC/rubber
- No.Cross-section: 10mm2, 16mm2, 25mm2, 35mm2, 50mm2, 70mm2, 95mm2, 120m2, 150mm2, 185mm2.
- ASTM Standard AWG Size: 6awg, 4awg, 2awg, 1awg, 1/0awg, 2/0awg, 3/0awg, 4/0awg, 250awg, 350awg, 500awg.
- Color: Choice of Black, Orange, Red or Yellow Blue jacket, single & double insulated.

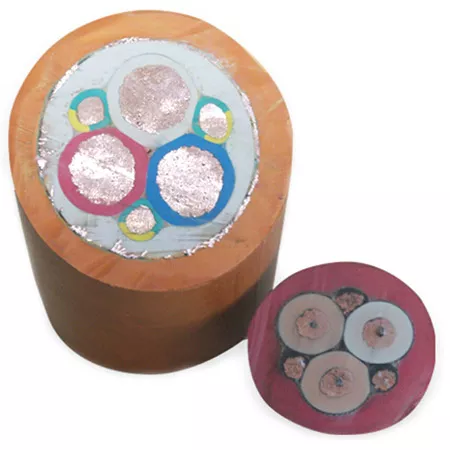

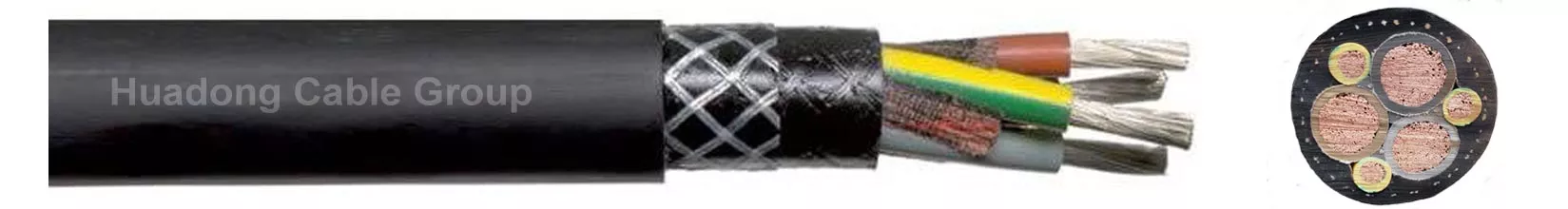

Round and Flat type Trailing Rubber Cable With Composite Fiber Optic Core
- Voltage: 3.3kv, 6/10Kv,
- Conductor: Class 5,6 flexible plain copper
- InnerInsulation/Outer Sheat: EPR
- Sheath Color: Black/Yellow/Red/Orange or other
- Cores: 3+3 Core, 6 Cores
- Number of fibers: 12, 16, 18, 24etc.
- Application: it is for use oncable reel system on material handling equipment(i.e. Stacker/reclaimer, STS, RMG). Its special design is perfectly suitable for high mechanical stresses,frequent bending/torsional operation and fast movement with big acceleration.

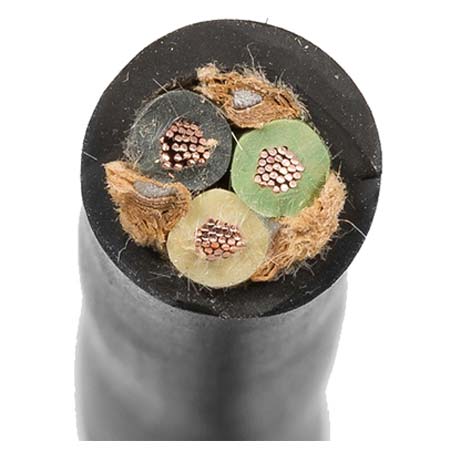

Resistance Oil and Water SJOOW/SOOW/SJO/SEOOW Rubber Cable
- Voltage: 300 Volt
- Conductor: Copper/Tinned Copper
- Insulation: Ethylene Propylene Diene Monomer (EPDM) or EP compound
- Jacket: rubber or CPE or CP compound
- Size: 2awg, 4awg,6awg,8awg, 2/0awg,3/0awg, 4/0awg.
- Core: black, green, yellow or other
- Working Temperaturer: -40ºC to +90ºC
- Feature: Excellent resistance to oil and moisture Good tensile strength, elongation and aging characteristics High flexibility Excellent abrasion resistance Water-resistant for indoor and outdoor use

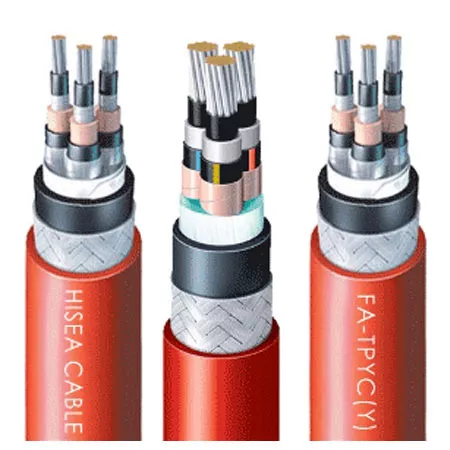

FR-FA-TPYCY /FA-TPYCY Insulation Shipboard/Marine Ruber Cable
- Voltage: 0.6/1KV, 1.8/3kV, 3.6/6KV, 6/10KV, 8.7/15KV;
- Cores: 1.2.3.4.4.7.10.12.14.16.19.24.27.30.33.37
- Conductor: tinner copper;
- Inner sheathe: PCP/CSP/PVC/PO(SHF1,SHF2)
- Insulation: EPR/Rubber/XLPE;
- Armored: tinned copper wire braid(Galvanized steel wire braid)
- Outer Sheath: PVC/PCP/PO(SHF1, SHF2).
- Nominal Cross-section Areas: 0.75mm2,~ 240mm2.
0.6/1KV HT-PNCT-F Rubber Cable Parameter Sheet
| Number | Conductor Composition | Outer Diameter | Thickness of Insulation | Thickness of Sheath | Insulation Resistance (20)(Min.) | Weight |
| Corexsqmm | Max./mm | mm | mm | mm | km | kg/km |
| 3×16 | 0.26 | 6 | 1.2 | 2.3 | 300 | 930 |
| 3×25 | 0.26 | 7.4 | 1.2 | 2.5 | 300 | 1290 |
| 3×35 | 0.26 | 8.7 | 1.2 | 2.7 | 200 | 1650 |
| 3×50 | 0.26 | 10.4 | 1.5 | 3 | 200 | 2290 |
| 3×95 | 0.26 | 14.5 | 2 | 3.7 | 200 | 4170 |
| 3×120 | 0.26 | 16.2 | 2 | 4 | 200 | 5090 |
| 3×150 | 0.26 | 18.2 | 2 | 4.2 | 200 | 6150 |
| 3×185 | 0.26 | 20.2 | 2.5 | 4.6 | 200 | 7710 |
| 4×25 | 0.31 | 7.4 | 1.2 | 2.7 | 300 | 1790 |
| 4×35 | 0.31 | 8.7 | 1.2 | 2.9 | 200 | 2290 |
| 4×50 | 0.31 | 10.4 | 1.5 | 3.2 | 200 | 3160 |
| 4×95 | 0.31 | 14.5 | 2 | 4 | 200 | 5720 |
| 4×120 | 0.31 | 16.2 | 2 | 4.3 | 200 | 6980 |
| 4×150 | 0.31 | 18.2 | 2 | 4.6 | 200 | 8450 |
| 4×185 | 0.31 | 20.2 | 2.5 | 5.1 | 200 | 10690 |
The H07RN-F Flexible Rubber Cable Parameter Sheet
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA | NOMINAL THICKNESS OF INSULATION | NOMINAL OVERALL DIAMETER | NOMINAL WEIGHT |
| mm² | mm | mm | kg/km | |
| 4 | 6 | 1 | 16.4 | 449 |
| 4 | 10 | 1.2 | 21.8 | 833 |
| 4 | 16 | 1.2 | 25.4 | 1138 |
| 4 | 25 | 1.4 | 30.7 | 1714 |
| 4 | 35 | 1.4 | 33.4 | 2204 |
| 4 | 50 | 1.6 | 39.6 | 3029 |
| 4 | 70 | 1.6 | 44.9 | 4121 |
| 4 | 95 | 1.8 | 51.9 | 5361 |
| 4 | 120 | 1.8 | 61.3 | 7400 |
| 5 | 2.5 | 0.9 | 14 | 297 |
| 5 | 4 | 1 | 16.2 | 422 |
| 5 | 6 | 1 | 18.2 | 567 |
| 5 | 10 | 1.2 | 24 | 1010 |
| 5 | 16 | 1.2 | 28.2 | 1400 |
| 5 | 25 | 1.4 | 33.9 | 2096 |
| 5 | 35 | 1.4 | 37.2 | 2700 |
| 5 | 50 | 1.6 | 44 | 3730 |
| 5 | 70 | 1.6 | 54 | 4945 |
| 5 | 95 | 1.8 | 63 | 6430 |
| 7 | 2.5 | 0.9 | 17.6 | 445 |
| 12 | 2.5 | 0.9 | 21.4 | 702 |
