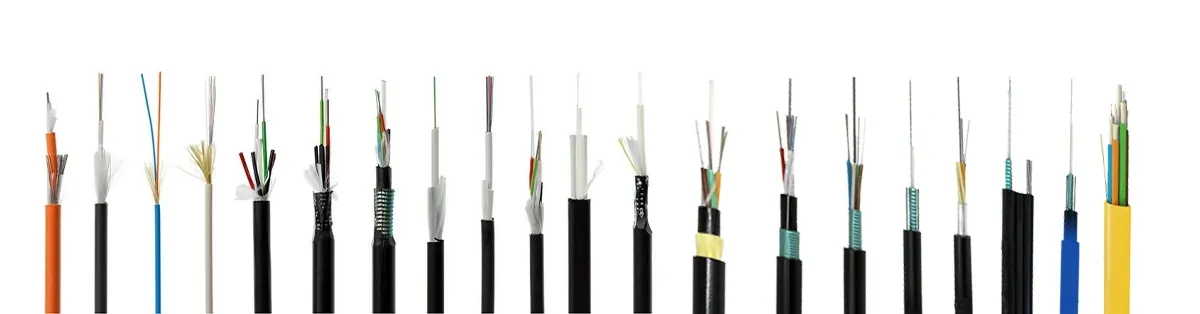

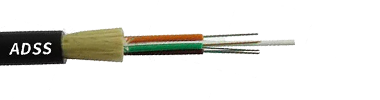

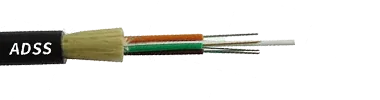

Outdoor Single Sheath 24~144+ Cores Span 50~200m Fiber ADSS Cable
- Application:
- —Self-supporting Aerial installation especially for electric field.
- —Structure can be customized for different spans.

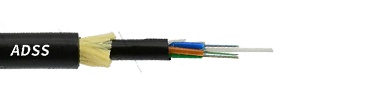

Outdoor Double Sheath 24~144+ Cores 50~200m Fiber ADSS Cable
- Application:
- —Self-supporting Aerial installation especially for electric field.
- —Structure can be customized for different spans.

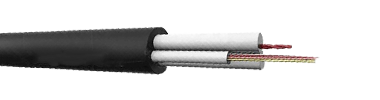

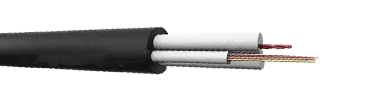

Non-armoured Aerial Outer ASU Mini ADSS Cable-80m, 100m 1~12core
The ASU cable artfully blends sturdiness and practicality. lts aeria, compact, dielectric design is reinforced with two fiber-reinforced polymer (FRP) elements, ensuring resistance to electromagnetic interference and enhancing performance. Additionally, its superb protection against humidity and UV rays ensures durability even under the harshest conditions.

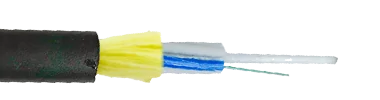

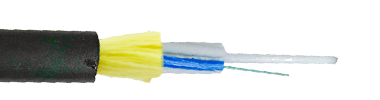

FTTH 1~12 Cores Fiber Optical Round Drop Mini ADSS Cable
The GJFJU(TPU) Round Drop Cable(3.0mm) is constructed with d900ym tight buffer fibers surrounded by Aramid yarns as strength member, covered with TPU or LSZH outer sheath,Tight bufer diameter mm.0.9+0.05.

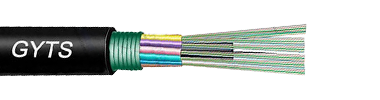

GYTS Outdoor Stranded Loose Tube CST Armor Optical Fiber Cable
Application: Duct / Non Self-supporting Aerial Installation.

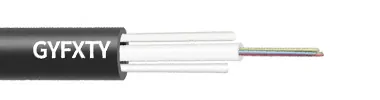

GYFXTY Non-Metallic Outdoor Aerial Fiber Optical Cable
GL FlBER Supply Outdoor drop cable having FRP rods as strength members and containing 1/2/4/6/8/12/24 fiber in full compliance with ITU-T G.652D or G.657A1. The offered cables are fully compliant to the relevant lEC specifications.

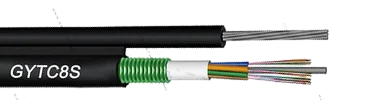

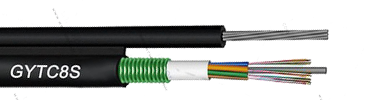

GYTC8S Loose Tube CST Armor Figure 8 Steel Wires Self-supporting Optical Fiber Cable
Application: Self-support Aerial Installation.

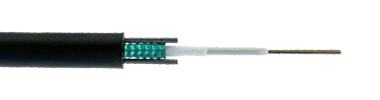

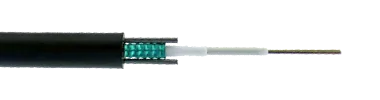

Outdoor Single Mode G657A G652D GYXTW Armored Steel Wire Fiber Cable
- Application:
- Direct-burial/ Duct / Non Self-supporting.
- Aerial Installation.
Outdoor GYTS 2~24 Cores Direct Buried Armored Fiber Optical Cable
Application: Duct / Non Self-supporting Aerial Installation.
- ADSS Outdoor Single Sheath Cable
- ADSS Outdoor Double Sheath Cable
- ASU ADSS Non-armoured Cable
- ADSS Round FTTH Cable
| Project | Technical indicators (Span 100m) | ||||||||
| Counts | 2-30 | 32-36 | 38-60 | 62-72 | 74-96 | 98-120 | 122-144 | 146-216 | 218-288 |
| Max.fiber counts per tube | 6 | 6 | 12 | 12 | 12 | 12 | 12 | 12 | 12 |
| Units(Tubesor Fillers) | 6 | 6 | 6 | 6 | 8 | 10 | 12 | 18 | 24 |
| Cable Diameter ( mm) | 9.7 | 9.7 | 9.7 | 9.7 | 11.2 | 12.3 | 13.5 | 13.7 | 16.3 |
| Reference weight(Kg/km) | 74 | 75 | 75 | 75 | 100 | 120 | 143 | 142 | 195 |
| Fiber Type | G652D G655 G657 50/125 62.5/125 | ||||||||
| Tensile Strength(N) | Long/Short Term:1900/4800 | ||||||||
| Crush Resistance(N/100mm) | Long/Short Term 300/1000 | ||||||||
| Bending Radius(mm) | Static/Dynamic:10D/20D | ||||||||
| Temperature(℃) | Storage /Operation:-40℃ **+70℃ | ||||||||
| Project | Technical indicators (Span 100m) | ||||||||
| Counts | 2-30 | 32-36 | 38-60 | 62-72 | 74-96 | 98-120 | 122-144 | 146-216 | 218-288 |
| Max.fiber counts per tube | 6 | 6 | 12 | 12 | 12 | 12 | 12 | 12 | 12 |
| Unrts(Tubesor Fillers) | 6 | 6 | 6 | 6 | 8 | 10 | 12 | 18 | 24 |
| Cable Diameter ( mm) | 9.7 | 9.7 | 9.7 | 9.7 | 11.2 | 12.3 | 13.5 | 13.7 | 16.3 |
| Reference weight(Kg/km) | 74 | 75 | 75 | 75 | 100 | 120 | 143 | 142 | 195 |
| Fiber Type | G652D G655 G657 50/125 62.5/125 | ||||||||
| Tensile Strength(N) | Long/Short Term:1900/4800 | ||||||||
| Crush Resistance(N/100mm) | Long/Short Term :300/1000 | ||||||||
| Bending Radius(mm) | Static/Dynamic:10D/20D | ||||||||
| Temperature(℃) | Storage /Operation:-40℃*+70℃ | ||||||||
| Cable Model(Increased by2 fibers) | Fiber Count | Cable Weight (kg/km) | StrengthLong/Short Term (N)Tensile | ResistanceLong/Short Term (N/100mm)Crush | RadiusStatic/Dynamic |
| ASU-(2-12)C | 2-12 | 42 | 750/1250 | 300/1000 | 12.5D/20D |
| ASU-(14-24)C | 14-24 |
| ltem | Description | |
| Tight Buffer Fiber | Fiber Count | 1FO |
| Fiber Type | G.657B3 | |
| Fiber Color | Natural | |
| Diameter | 0.9mm | |
| Tight Buffer Color | Blue or Customized color | |
| Material | LSZH | |
| Strength Member | Material | Aramid yarn |
| Outer Sheath | Material | TPU |
| Color | Black | |
| Thickness | 0.7~0.8mm | |
| Diameter | 3.0+0.1mm | |
| Span | 50~100m | |
| Installation Sag | 1% | |
| Max. Wind Speed | 50km/ hour | |
| Tensile | 800N | |
| Strain | 0.6% | |
| Cable Weight | 9.8kg/ km | |
- GYTS Outdoor Optical Fiber Cable
- GYTC8S Optical Fiber Cable
- GYXTW Optical Fiber Cable
- GYXTS Optical Fiber Cable
| Project | Technical indicators | ||||||||
| Counts | 2-30 | 32-36 | 38-60 | 62-72 | 74-96 | 98-120 | 122-144 | 146-216 | 218-288 |
| Max.fiber counts per tube | 6 | 6 | 12 | 12 | 12 | 12 | 12 | 12 | 12 |
| Units(Tubes or Fillers) | 5 | 6 | 5 | 6 | 8 | 10 | 12 | 18 | 24 |
| Cable Diameter(mm) | 9.2 | 9.6 | 9.7 | 10.2 | 11.5 | 12.8 | 14 | 14.3 | 16.2 |
| Reference weight(Kg/km) | 87 | 102 | 98 | 118 | 143 | 170 | 197 | 204 | 255 |
| Fiber Type | G652D G655 G657 50/125 62.5/125 | ||||||||
| Tensile Strength(N) | Long/Short Term:600/1500 | ||||||||
| Crush Resistance(N/100mm) | Long/Short Term:300/1000 | ||||||||
| Bending Radius(mm) | Static/Dynamic:10D/20D | ||||||||
| Temperature(℃) | Storage /Operation:-40℃~+70℃ | ||||||||
| Project | Technical indicators | ||||||||
| Counts | 2-30 | 32-36 | 38-60 | 62-72 | 74-96 | 98-120 | 122-144 | 146-216 | 218-288 |
| Max.fiber counts per tube | 6 | 6 | 12 | 12 | 12 | 12 | 12 | 12 | 12 |
| Units(Tubes or Fillers) | 5 | 6 | 5 | 6 | 8 | 10 | 12 | 18 | 24 |
| Cable Diameter(mm) | 9.2*16.2 | 9.6*16.6 | 9.7*16.7 | 10.2*17.2 | 11.5*18.5 | 12.8*19.8 | 14.0*21.0 | 14.3*21.3 | 16.2*23.2 |
| Reference weight(Kg/km) | 145 | 160 | 160 | 177 | 203 | 230 | 260 | 263 | 312 |
| Fiber Type | G652D G655 G657 50/125 62.5/125 | ||||||||
| Steel wire(mm) | 1.0*7 | ||||||||
| Tensile Strength(N) | Long/Short Term:1000/3500 | ||||||||
| Crush Resistance(N/100mm) | Long/Short Term:1000/2200 | ||||||||
| Bending Radius(mm) | Static/Dynamic:10D/20D | ||||||||
| Temperature(℃) | Storage /Operation:-40℃~+70℃ | ||||||||
| Project | Technical indicators |
| Counts | 45334 |
| Max.fiber counts per tube | 12 |
| Cable Diameter(mm) | 7.9 |
| Reference weight(Kg/km) | 68 |
| Fiber Type | G652D G655 G657 50/125 62.5/125 |
| Tensile Strength(N) | Long/Short Term:600/1500 |
| Crush Resistance(N/100mm) | Long/Short Term:300/1000 |
| Bending Radius(mm) | Static/Dynamic:10D/20D |
| Temperature(℃) | Storage /Operation:-40℃~+70℃ |
| Project | Technical indicators | ||||||||
| Counts | 2-30 | 32-36 | 38-60 | 62-72 | 74-96 | 98-120 | 122-144 | 146-216 | 218-288 |
| Max.fiber counts per tube | 6 | 6 | 12 | 12 | 12 | 12 | 12 | 12 | 12 |
| Units(Tubes or Fillers) | 5 | 6 | 5 | 6 | 8 | 10 | 12 | 18 | 24 |
| Cable Diameter(mm) | 9.2 | 9.6 | 9.7 | 10.2 | 11.5 | 12.8 | 14 | 14.3 | 16.2 |
| Reference weight(Kg/km) | 87 | 102 | 98 | 118 | 143 | 170 | 197 | 204 | 255 |
| Fiber Type | G652D G655 G657 50/125 62.5/125 | ||||||||
| Tensile Strength(N) | Long/Short Term:600/1500 | ||||||||
| Crush Resistance(N/100mm) | Long/Short Term:300/1000 | ||||||||
| Bending Radius(mm) | Static/Dynamic:10D/20D | ||||||||
| Temperature(℃) | Storage /Operation:-40℃~+70℃ | ||||||||

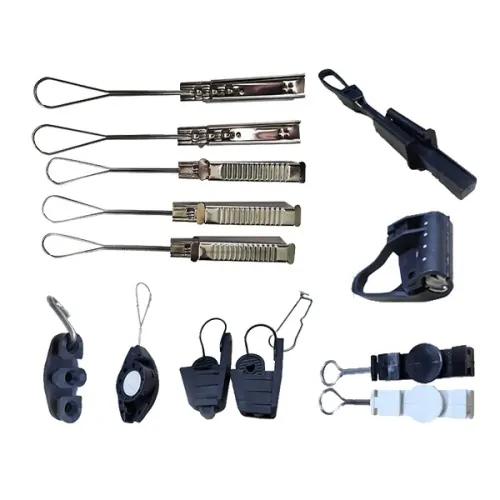

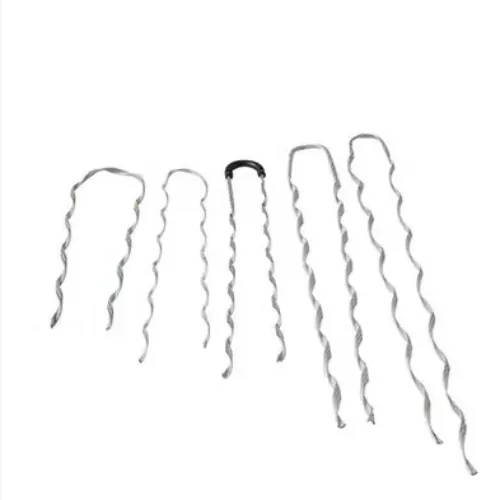

ADSS Accessories
Application: Applied in FTTH construction.
Application: For short span length low tensile force ADSS cables.
Application: For short span length low tensile force ADSS cables.

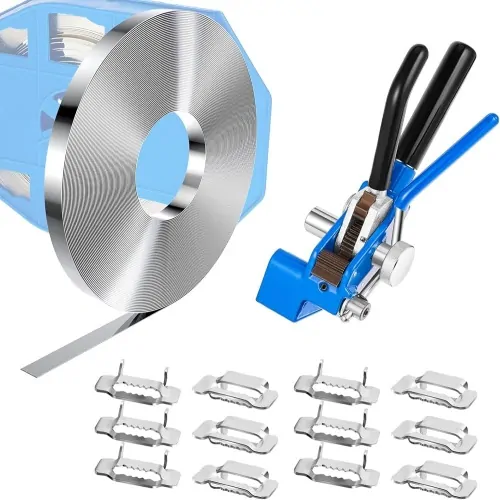

Application: Widely applied in industrial manufacturing, banding, maritime ships, rail transit, ship packaging and other industries.
Application: Applied to Fiber Optic Cable installation

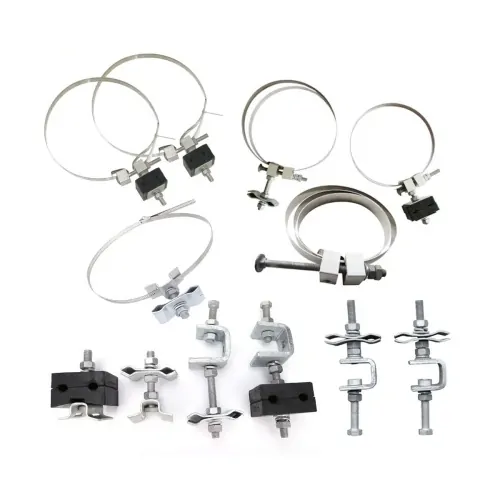

Application: Suitable for installation scenarios of down conductors in various tructures such as iron towers and metal poles.
Application: Suitable for installation scenarios of down conductors in various tructures such as iron towers and metal poles.
Application: Applied in ADSS Cable construction.
