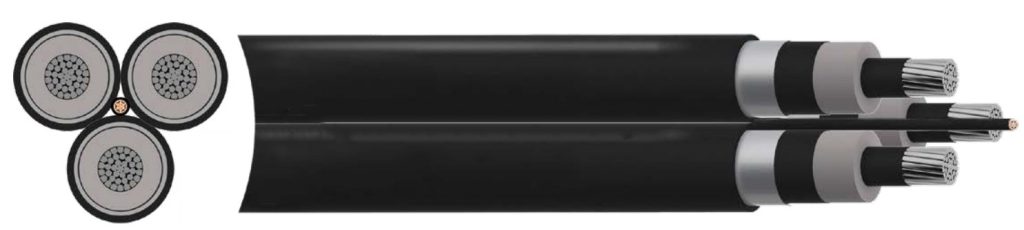

Application of Waterproof AHXAMK-W/AHXAMK-WP/AHXAMK-WM Cable
Medium-voltage cable for fixed installations outdoors. May be buried directly in the soil, also by ploughing. Cable is longitudinally and radially watertight and therefore it is suitable where wet soil and/or freshwater permanently occurs.

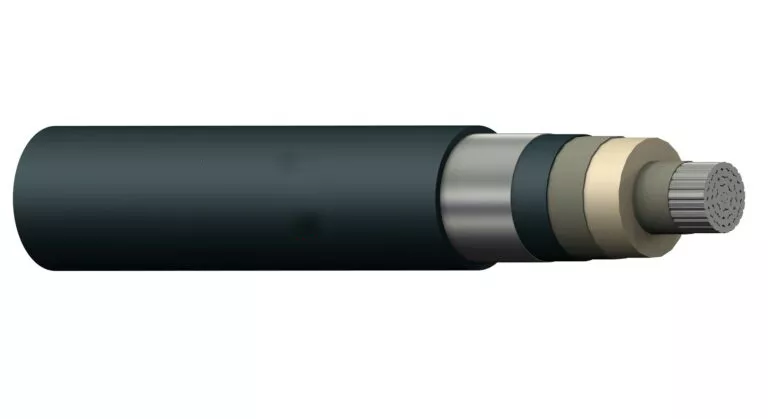

12/20kV, 19/30kV Single Core AHXAMK-WP Cable
- Voltage: 12/20kV, 19/30kV
- Conductor: Watertight, circular, stranded aluminium,
- Core: Single Core
- Conductor Screen: Semiconducting cross-linked polyethylene XLPE
- Insulation: XLPE
- Insulation Screen: XLPE
- Inner covering: Semiconducting waterswellable tape against longitudinal water penetration
- Metal screen: Polyethylene laminated aluminium foil, which acts also as a radial water barrier
- Sheath: PE
- Eather Conductor: Cu
- Size: 1×150/25 CAS, 1×240/25 CAS, 1×400/25 CAS, 1×500/25 CAS, 1×630/25 CAS.
- Internation Standard: HD620, VDE, ASTM, BS, GB, NFC, VDE etc

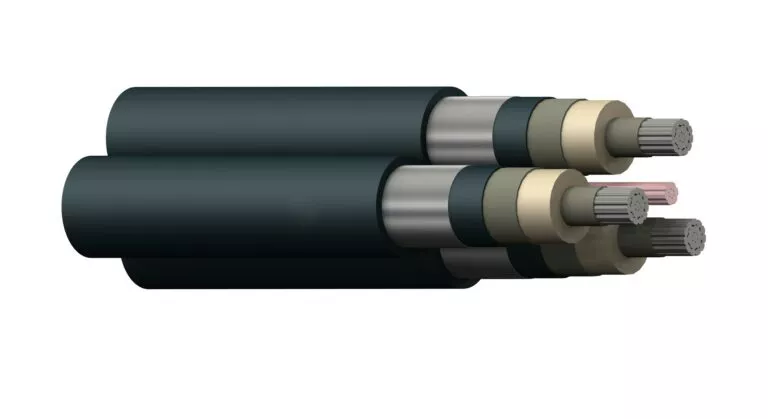

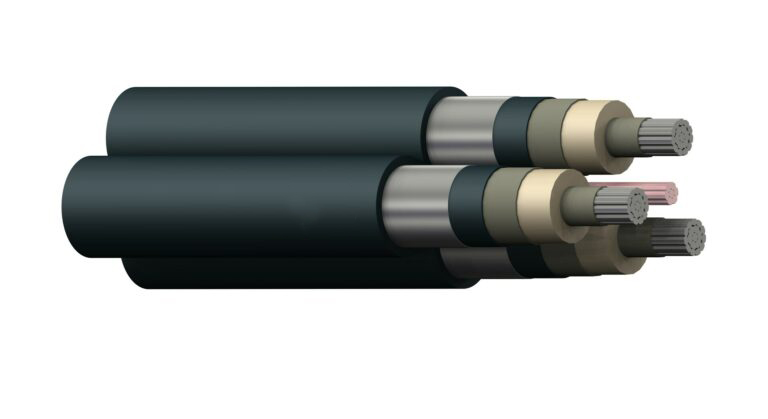

12/20kV, 19/30kV Three Core AHXAMK-W Cable
- Voltage: 12/20kV, 19/30kV
- Conductor: Watertight, circular, stranded aluminium,
- Core: 3 Cores
- Conductor Screen: Semiconducting cross-linked polyethylene XLPE
- Insulation: XLPE
- Insulation Screen: XLPE
- Inner covering: Semiconducting waterswellable tape against longitudinal water penetration
- Metal screen: Polyethylene laminated aluminium foil, which acts also as a radial water barrier
- Sheath: PE
- Eather Conductor: Cu
- Size: 3×50+35Cu, 3×70+35Cu, 3×95+35Cu, 3×120+35Cu, 3×150+35Cu, 3×185+35Cu, 3×240+35Cu, 3×300+35Cu,
- Internation Standard: HD620, VDE, ASTM, BS, GB, NFC, VDE etc

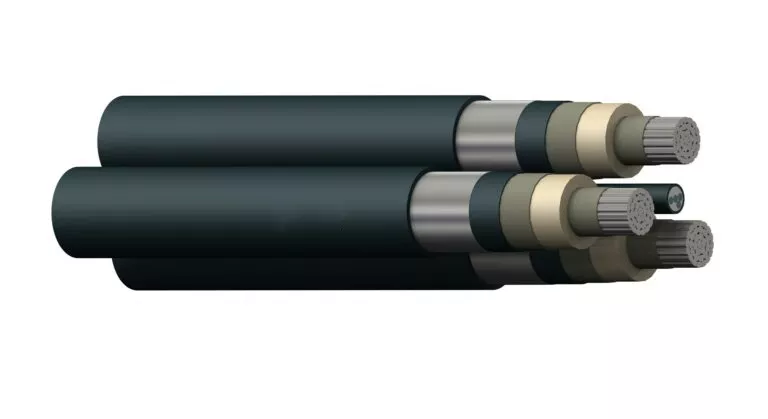

12/20kV, 19/30kV Three Core AHXAMK-WM Cable
- Voltage: 12/20kV, 19/30kV
- Conductor: Watertight, circular, stranded aluminium,
- Core: 3 Cores
- Conductor Screen: Semiconducting cross-linked polyethylene XLPE
- Insulation: XLPE
- Insulation Screen: XLPE
- Inner covering: Semiconducting waterswellable tape against longitudinal water penetration
- Metal screen: Polyethylene laminated aluminium foil, which acts also as a radial water barrier
- Sheath: PE
- Eather Conductor: XLPE insulated galvanized steel messenger
- Size: 3×50+62, 3×70+62, 3×95+62, 3×120+62, 3×150+62, 3×185+62, 3×240+62,.
- Internation Standard: HD620, VDE, ASTM, BS, GB, NFC, VDE etc.
18/30kV Three Cable AXLJ-F TT Cable
- Voltage: 18/30kV
- Conductor: Watertight, circular, stranded aluminium,
- Core: 3 Cores
- Conductor Screen: Semiconducting cross-linked polyethylene XLPE
- Insulation: XLPE
- Insulation Screen: XLPE
- Inner covering: Water swellable tape under and over screen
- Metal screen: Polyethylene laminated aluminium foil, which acts also as a radial water barrier
- Sheath: PE
- Eather Conductor: XLPE insulated galvanized steel messenger
- Size: 1×150/25 CAS, 1×240/25 CAS, 1×400/25 CAS, 1×500/25 CAS, 1×630/25 CAS.
- Internation Standard: HD620, VDE, ASTM, BS, GB, NFC, VDE etc.
