Huadong Cable Group is professional Overhead line bare conductor manufacturer, the Aluminum bare conductor including: AAC/ AAAC/ACSR/ACS/GSW and insulation overhead ABC Cable. and can custom the size according to your requirement.
Click following tags to select your ideal types

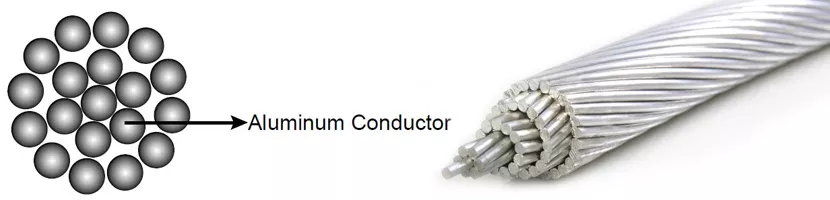

Overhead Line AAC Conductor-All Aluminum Conductor
Application: AAC used in overhead electric power transmission and distribution lines with various grade voltages. Mainly used in urban areas for electricity transfer where the spacing is short and the supports are closer together. Apart from that, these conductors are also extensively used in coastal area because of their corrosion resistance properties.
BS Standard All Aluminium Stranded Conductors Parameter
| Code Name | Area | Stranding and wire diameter | Approx. Overall diameter | Weight | Nominal breaking load | Nom. DC resistance at 20 deg. | |
| Nominal(mm2) | Actual(mm2) | mm | mm | kg/km | kN | ohm/km | |
| MIDGE | 22 | 23.33 | 7/2.06 | 6.2 | 64 | 3.99 | 1.227 |
| APHIS | 25 | 26.4 | 3/3.35 | 7.2 | 73 | 4.11 | 1.081 |
| GNAT | 25 | 26.8 | 7/2.21 | 6.6 | 73 | 4.59 | 1.066 |
| WEEVIL | 30 | 31.6 | 3/3.66 | 7.9 | 86 | 4.86 | 0.9082 |
| MOSQUITO | 35 | 37 | 7/2.59 | 7.8 | 101 | 6.03 | 0.7762 |
| LADYBIRD | 40 | 42.8 | 7/2.79 | 8.4 | 117 | 6.87 | 0.6689 |
| ANT | 50 | 52.83 | 7/3.10 | 9.3 | 145 | 8.28 | 0.5419 |
| FLY | 60 | 63.55 | 7/3.40 | 10.2 | 174 | 9.9 | 0.4505 |
| BLUEBOTTLE | 70 | 73.7 | 7/3.66 | 11 | 202 | 11.34 | 0.3881 |
| EARWING | 75 | 78.5 | 7/3.78 | 11.4 | 215 | 11.94 | 0.3644 |
| GRASSHOPPER | 80 | 84.1 | 7/3.91 | 11.7 | 230 | 12.78 | 0.3406 |
| CLEGG | 90 | 95.6 | 7/4.17 | 12.5 | 262 | 14.53 | 0.2994 |
| WASP | 100 | 106 | 7/4.39 | 13.2 | 290 | 16 | 0.2702 |
| BEETLE | 100 | 106.6 | 19/2.67 | 13.4 | 293 | 17.42 | 0.2704 |
| BEE | 125 | 132 | 7/4.90 | 14.7 | 361 | 19.44 | 0.2169 |
| CRICKET | 150 | 157.9 | 7/5.36 | 16.1 | 432 | 23.85 | 0.1818 |
| HORNET | 150 | 157.6 | 19/3.25 | 16.3 | 434 | 25.7 | 0.1825 |
| CATERPILLAR | 175 | 186 | 19/3.53 | 17.7 | 512 | 28.63 | 0.1547 |
| CHAFER | 200 | 213.2 | 19/3.78 | 18.9 | 587 | 32.4 | 0.1349 |
| SPIDER | 225 | 236.9 | 19/3.99 | 20 | 652 | 36.01 | 0.1211 |
| COCKROACH | 250 | 265.7 | 19/4.22 | 21.1 | 731 | 40.4 | 0.1083 |
| BUTTERFLY | 300 | 322.7 | 19/4.65 | 23.3 | 888 | 48.7 | 0.08916 |
Overhead Line AAAC Conductor-All Aluminum Conductor
Application: The aluminum alloy conductors are used in replace of single-layer ACSR conductors to reduce power loss in overhead distribution and transmission lines,when replacing the aluminum conductor steel reinforced , the AAAC can save 5-8% of the construction cost.
IEC Standard AAAC Condcutor Parameter Date
| Code number | Area | Number of wires | Diameter | Linear mass | Rated strength | D.C resistance | |
| mm2 | Wire(mm) | Cond(mm) | kg/km | kN | Ohm/km | ||
| 16 | 18.6 | 7 | 1.84 | 5.52 | 50.8 | 6.04 | 1.7896 |
| 25 | 29 | 7 | 2.3 | 6.9 | 79.5 | 9.44 | 1.1453 |
| 40 | 46.5 | 7 | 2.91 | 8.72 | 127.1 | 15.1 | 0.7158 |
| 63 | 73.2 | 7 | 3.65 | 10.9 | 200.2 | 23.06 | 0.4545 |
| 100 | 116 | 19 | 2.79 | 14 | 319.3 | 37.76 | 0.2877 |
| 125 | 145 | 19 | 3.12 | 15.6 | 399.2 | 47.2 | 0.2302 |
| 160 | 186 | 19 | 3.53 | 17.6 | 511 | 58.56 | 0.1798 |
| 200 | 232 | 19 | 3.95 | 19.7 | 638.7 | 73.2 | 0.1439 |
| 250 | 290 | 19 | 4.41 | 22.1 | 798.4 | 91.5 | 0.1151 |
| 315 | 366 | 37 | 3.55 | 24.8 | 1008.4 | 115.29 | 0.0916 |
| 400 | 465 | 37 | 4 | 28 | 1280.5 | 146.4 | 0.0721 |
| 450 | 523 | 37 | 4.24 | 29.7 | 1440.5 | 164.7 | 0.0641 |
| 500 | 581 | 37 | 4.47 | 31.3 | 1600.6 | 183 | 0.0577 |
Overhead Line ACSR Conductor-All Aluminum Conductor
Application: Used as bare overhead transmission conductor and as primary and secondary distribution conductor and messenger support. ACSR offers optimal strength for line design. Variable steel core stranding enables desired strength to be achieved without sacrificing ampacity.
BS215 Standard ACSR Conductor Technical Characteristics
| Code name | Nominal aluminum area | Stranding structure | Sectional area of aluminum | Total sectional area | Overall diameter | Total | Current Rating | |
| mm2 | Al. No. | St. No. | mm2 | mm2 | mm | kg/km | A | |
| Gopher | 25 | 6 | 1 | 26.24 | 30.62 | 7.08 | 106 | 126 |
| Weasel | 30 | 6 | 1 | 31.61 | 36.88 | 7.77 | 128 | 134 |
| Fox | 35 | 6 | 1 | 36.66 | 42.77 | 8.37 | 149 | 147 |
| Rabbit | 50 | 6 | 1 | 52.88 | 61.7 | 10.05 | 214 | 185 |
| Mink | 60 | 6 | 1 | 63.18 | 73.71 | 10.98 | 255 | 174 |
| Horse | 70 | 12 | 7 | 73.37 | 116.2 | 13.95 | 538 | 268 |
| Cat | 90 | 6 | 1 | 95.4 | 111.3 | 15.9 | 386 | 248 |
| Dog | 100 | 6 | 7 | 105 | 118.5 | 14.15 | 394 | 278 |
| Tiger | 125 | 30 | 7 | 131.1 | 161.7 | 16.52 | 602 | 323 |
| Dingo | 150 | 18 | 1 | 158.7 | 167.5 | 16.75 | 506 | 349 |
| Wolf | 150 | 30 | 7 | 158.1 | 194.9 | 18.13 | 726 | 355 |
| Lynx | 175 | 30 | 7 | 183.4 | 326.2 | 19.53 | 842 | 386 |
| Panther | 200 | 30 | 7 | 212.1 | 261.5 | 21 | 974 | 421 |
| Lion | 225 | 30 | 7 | 238.5 | 294.2 | 22.26 | 1095 | 448 |
| Bear | 250 | 30 | 7 | 264 | 325.6 | 23.45 | 1213 | 481 |
