APPLICATION
Publicly Available Standard (PAS) BS 5308 cables are designed to carry communication and control signals in a variety of installation types including those found in the petrochemical industry. The signals can be analogue, data or voice type and from a variety of transducers such as pressure, proximity or microphone. Part 1 Type 2 cables are designed where a greater degree of mechanical protection is required namely outdoor / exposed or direct burial at suitable depth. Suitable for fire resistant installations.

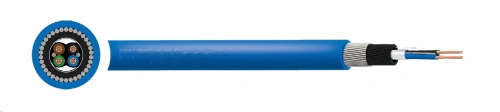

PAS BS 5308 Part 1 Type 2 PE/CAM/PE/SWA/PVC Cable
- Voltage Rating Uo/U: 300/500V
- Conductor:
- 0.5mm² – 0.75mm²: Class 5 flexible stranded copper;
- 1mm² and above: Class 2 stranded copper
- Insulation: PE
- Screen: Al/PET
- Drain Wire: Tinned copper
- Bedding: PE
- Armour: SWA
- Sheath: PVC

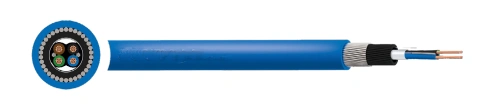

PAS BS 5308 Part 1 Type 2 PE/ICAM/PE/SWA/PVC Cable
- Voltage Rating Uo/U: 300/500V
- Conductor:
- 0.5mm² – 0.75mm²: Class 5 flexible copper conductor
- 1mm² and above: Class 2 stranded copper conductor
- Individual and Collective Screen: Al/PET
- Drain Wire: Tinned copper
- Bedding: PE
- Armour: SWA
- Sheath: PVC
PAS BS 5308 Part 1 Type 2 CAM/XLPE/SWA/LSZH Cable
- Voltage Rating Uo/U: 300/500V
- Conductor:
- 0.5mm² – 0.75mm²: Class 5 flexible copper conductor
- 1mm² and above: Class 2 stranded copper conductor
- Insulation: XLPE
- Screen: Al/PET
- Drain Wire: Tinned copper
- Bedding: LSZH
- Armour: SWA
- Sheath: LSZH
PAS BS 5308 Part 1 Type 2 XLPE/ICAM/LSZH/SWA/LSZH Cable
- Voltage Rating Uo/U: 300/500V
- Conductor:
- 0.5mm² – 0.75mm²: Class 5 flexible stranded copper
- 1mm² and above: Class 2 stranded copper
- Insulation: XLPE
- Individual and Collective Screen: Al/PET
- Drain Wire: Tinned copper
- Bedding: LSZH
- Armour: SWA
- Sheath: LSZH

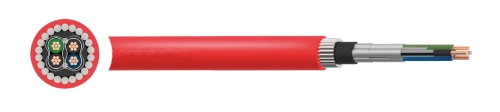

PAS BS 5308 Part 1 Type 2 SIL/CAM/LSZH/SWA/LSZH (Fire Resistant) Cable
- Voltage Rating Uo/U: 300/500V
- Conductor:
- 0.5mm² – 0.75mm²: Class 5 flexible copper conductor
- 1mm² and above: Class 2 stranded copper conductor
- Insulation: Silicone rubber ceramic type
- Screen: Al/PET
- Drain Wire: Tinned copper
- Inner Sheath: LSZH
- Armour: SWA
- Sheath: LSZH

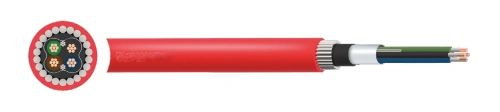

PAS BS 5308 Part 1 Type 2 SIL/ICAM/LSZH/SWA/LSZH (Fire Resistant) Cable
- Voltage Rating Uo/U: 300/500V
- Conductor:
- 0.5mm² – 0.75mm²: Class 5 flexible copper conductor
- 1mm² and above: Class 2 stranded copper conductor
- Insulation: Silicone rubber ceramic type
- Individual and Collective Screen: Al/PET
- Drain Wire: Tinned copper
- Inner Sheath: LSZH
- Armour: SWA
- Sheath: LSZH
PAS BS 5308 Part 1 Type 2 Mica/XLPE/CAM/LSZH/ SWA/LSZH (Fire Resistant) Cable
- Voltage Rating Uo/U: 300/500V
- Conductor:
- 0.5mm² – 0.75mm²: Class 5 flexible copper conductor
- 1mm² and above: Class 2 stranded copper conductor
- Insulation: MICA Tape + XLPE
- Screen: Al/PET
- Drain Wire: Tinned copper
- Inner Sheath: LSZH
- Armour: SWA
- Sheath: LSZH
PAS BS 5308 Part 1 Type 2 MICA/XLPE/ICAM/ LSZH/SWA/LSZH (Fire Resistant) Cable
- Voltage Rating Uo/U: 300/500V
- Conductor:
- 0.5mm² – 0.75mm²: Class 5 flexible copper conductor
- 1mm² and above: Class 2 stranded copper conductor
- Insulation: MICA Tape + XLPE
- Individual and Collective Screen: Al/PET
- Drain Wire: Tinned copper
- Inner Sheath: LSZH
- Armour: SWA
- Sheath: LSZH
- PAS BS 5308 Part 1 Type 2 PE/CAM/PE/SWA/PVC Cable
- PAS BS 5308 Part 1 Type 2 XLPE/ICAM/LSZH/SWA/LSZH Cable
- PAS BS 5308 Part 1 Type 2 SIL/CAM/LSZH/SWA/LSZH (Fire Resistant) Cable
- PAS BS 5308 Part 1 Type 2 MICA/XLPE/ICAM/ LSZH/SWA/LSZH (Fire Resistant) Cable
| PAS BS 5308 Part 1 Type 2 PE/CAM/PE/SWA/PVC Cable | ||
| NO. OF PAIRS/TRIPLE | NOMINAL CROSS SECTIONAL AREA | NOMINAL OVERALL DIAMETER |
| mm2 | mm | |
| 1P | 0.5 | 11.4 |
| 1P | 0.75 | 11.8 |
| 1P | 1 | 11.8 |
| 1P | 1.5 | 12.9 |
| 1P | 2.5 | 13.7 |
| 1T | 0.5 | 11.7 |
| 1T | 0.75 | 12.1 |
| 1T | 1 | 12.3 |
| 1T | 1.5 | 13.5 |
| 1T | 2.5 | 14.3 |
| 2P(Q) | 0.5 | 12.3 |
| 2P(Q) | 0.75 | 13 |
| 2P(Q) | 1 | 13 |
| 2P(Q) | 1.5 | 14.3 |
| 2P(Q) | 2.5 | 15.3 |
| 5P | 0.5 | 17.9 |
| 5P | 0.75 | 19.3 |
| 5P | 1 | 19.7 |
| 5P | 1.5 | 22.1 |
| 5P | 2.5 | 24.1 |
| 10P | 0.5 | 22.9 |
| 10P | 0.75 | 25.5 |
| 10P | 1 | 24.3 |
| 10P | 1.5 | 28.4 |
| 10P | 2.5 | 32.1 |
| 15P | 0.5 | 26.4 |
| 15P | 0.75 | 28.7 |
| 15P | 1 | 28.1 |
| 15P | 1.5 | 32.2 |
| 15P | 2.5 | 36.4 |
| 20P | 0.5 | 29.1 |
| 20P | 0.75 | 31.6 |
| 20P | 1 | 31.2 |
| 20P | 1.5 | 35.7 |
| 20P | 2.5 | 41 |
| PAS BS 5308 Part 1 Type 2 XLPE/ICAM/LSZH/SWA/LSZH Cable | ||
| NO. OF PAIRS | NOMINAL CROSS SECTIONAL AREA | NOMINAL OVERALL DIAMETER |
| mm2 | mm | |
| 2P | 0.5 | 15.3 |
| 2P | 0.75 | 16 |
| 2P | 1 | 15.9 |
| 2P | 1.5 | 18.6 |
| 2P | 2.5 | 20 |
| 3P | 0.5 | 16.4 |
| 3P | 0.75 | 17.1 |
| 3P | 1 | 17 |
| 3P | 1.5 | 19.7 |
| 3P | 2.5 | 21.1 |
| 5P | 0.5 | 19.1 |
| 5P | 0.75 | 20 |
| 5P | 1 | 20 |
| 5P | 1.5 | 22.5 |
| 5P | 2.5 | 25.5 |
| 10P | 0.5 | 25.6 |
| 10P | 0.75 | 27 |
| 10P | 1 | 27 |
| 10P | 1.5 | 30.7 |
| 10P | 2.5 | 33.9 |
| 15P | 0.5 | 28.7 |
| 15P | 0.75 | 30.6 |
| 15P | 1 | 30.5 |
| 15P | 1.5 | 34.6 |
| 15P | 2.5 | 39.3 |
| 20P | 0.5 | 31.6 |
| 20P | 0.75 | 33.8 |
| 20P | 1 | 33.7 |
| 20P | 1.5 | 39.3 |
| 20P | 2.5 | 43.7 |
| 30P | 0.5 | 36.4 |
| 30P | 0.75 | 39.7 |
| 30P | 1 | 39.6 |
| 30P | 1.5 | 45.2 |
| 30P | 2.5 | 51.6 |
| PAS BS 5308 Part 1 Type 2 SIL/CAM/LSZH/SWA/LSZH (Fire Resistant) Cable | ||
| NO. OF PAIRS/TRIPLE | NOMINAL CROSS SECTIONAL AREA | NOMINAL OVERALL DIAMETER |
| mm2 | mm | |
| 1P | 0.5 | 10.9 |
| 1P | 1 | 11.3 |
| 1P | 1.5 | 12.3 |
| 1P | 2.5 | 13.3 |
| 1P | 0.75 | 11.4 |
| 1T | 0.5 | 11.3 |
| 1T | 1 | 11.7 |
| 1T | 1.5 | 13 |
| 1T | 2.5 | 13.8 |
| 1T | 0.75 | 11.8 |
| 2P(Q) | 0.5 | 11.8 |
| 2P (Q) | 1 | 12.3 |
| 2P (Q) | 1.5 | 13.7 |
| 2P (Q) | 2.5 | 14.7 |
| 2P (0) | 0.75 | 12.6 |
| 5P | 0.5 | 17.2 |
| 5P | 1 | 18.1 |
| 5P | 1.5 | 21.1 |
| 5P | 2.5 | 23.2 |
| 5P | 0.75 | 18.3 |
| 10P | 0.5 | 23.2 |
| 10P | 1 | 25.9 |
| 10P | 1.5 | 29.3 |
| 10P | 2.5 | 31.8 |
| 10P | 0.75 | 26.2 |
| 15P | 0.5 | 27.2 |
| 15P | 1 | 28.9 |
| 15P | 1.5 | 33.6 |
| 15P | 2.5 | 36.8 |
| 15P | 0.75 | 29.2 |
| 20P | 0.5 | 29.9 |
| 20P | 1 | 31.5 |
| 20P | 1.5 | 37 |
| 20P | 2.5 | 40.9 |
| 20P | 0.75 | 33 |
| PAS BS 5308 Part 1 Type 2 MICA/XLPE/ICAM/ LSZH/SWA/LSZH (Fire Resistant) Cable | ||
| NO. OF PAIRS | NOMINAL CROSS SECTIONAL AREA | NOMINAL OVERALL DIAMETER |
| mm2 | mm | |
| 2P | 0.5 | 16 |
| 2P | 0.75 | 17.2 |
| 2P | 1 | 17 |
| 2P | 1.5 | 18.7 |
| 2P | 2.5 | 20.9 |
| 5P | 0.5 | 20.4 |
| 5P | 0.75 | 21.5 |
| 5P | 1 | 21.3 |
| 5P | 1.5 | 24 |
| 5P | 2.5 | 27.2 |
| 10P | 0.5 | 28.1 |
| 10P | 0.75 | 30 |
| 10P | 1 | 29.6 |
| 10P | 1.5 | 34.2 |
| 10P | 2.5 | 36.9 |
| 15P | 0.5 | 31.5 |
| 15P | 0.75 | 34.6 |
| 15P | 1 | 34.2 |
| 15P | 1.5 | 38.2 |
| 15P | 2.5 | 41.8 |
| 20P | 0.5 | 35.7 |
| 20P | 0.75 | 38 |
| 20P | 1 | 37.5 |
| 20P | 1.5 | 42.5 |
| 20P | 2.5 | 46.1 |
| 30P | 0.5 | 40.9 |
| 30P | 0.75 | 43.6 |
| 30P | 1 | 43 |
| 30P | 1.5 | 49.5 |
| 30P | 2.5 | 54 |
