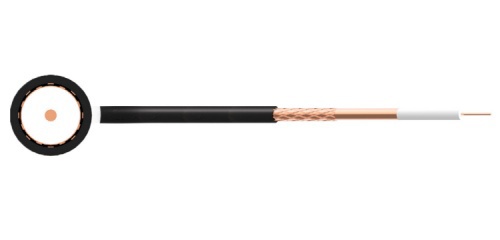

CT100 & CT125 & CT167 & CT233 — CT Coaxial Cable
Model:
CT100 FPE PVC, CT100 FPE LSZH, CT100 CPE PVC, CT100 FPE PE, CT100 FPE SHOTGUN, CT125 FPE PVC, CT125 CPE PVC, CT125 FPE RBS, CT167 FPE LSZH, CT167 FPE PE, CT233 FPE LSZH
CT100 FPE PVC, CT100 FPE LSZH, CT100 CPE PVC, CT100 FPE PE, CT100 FPE SHOTGUN, CT125 FPE PVC, CT125 CPE PVC, CT125 FPE RBS, CT167 FPE LSZH, CT167 FPE PE, CT233 FPE LSZH
- Voltage Rating: 30V
- Temperature Rating: +70ºC; Shotgun and RBS types: +60ºC; CT167 FPE PE: +80ºC
- Conductor: Class 1 solid copper
- Insulation: FPE (Foam Polyethylene); CPE (Cell Polyethylene)
- Screen 1: Copper tape longitudinally overlapped
- Screen 2: CCA (Copper Clad Aluminium)
- Sheath: PVC & LSZH & PE & PP
- Sheath Colour: Black
- STANDARDS: EN 50117-1; Flame Retardant according to IEC/EN 60332-3-10, IEC/EN 60332-1-2
- APPLICATION: Ideal for professional TV and CCTV system installations including digital, satellite, terrestrial and cable TV.

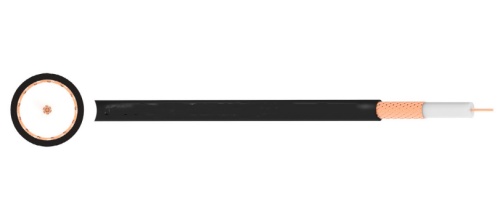

RG6, RG11, RG58, RG59, RG179, RG213 — RG Coaxial Cable
Model:
RG6, RG11, RG58, RG 59, RG59 Shotgun, RG179 and RG213
RG6, RG11, RG58, RG 59, RG59 Shotgun, RG179 and RG213
- Voltage Rating: 30V
- Temperature Rating: -20°C to +75ºC
- Conductor: RG6 / RG11 / RG59: CCS (Copper Clad Steel); RG58 / RG179: TCW (Tinned Copper Wire); RG59 Shotgun: CCA (Copper Clad Aluminium); RG213: Plain Copper
- Insulation: RG6 / RG11 / RG 179: FPE; RG58 / RG59 / RG59 Shotgun / RG213: PE
- Shield:RG6: Aluminium foil
- Braiding: RG6 / RG59 / RG59 Shotgun: CCA ; RG58: TCWB
- Sheath: RG6 / RG11 / RG58 / RG59 / RG179 / RG213: PVC; RG59 Shotgun / RG213 LSZH: LSZH
- Sheath Colour: Black
- STANDARDS: EN 50117-1; Flame Retardant to EN 60332-3-10, IEC/EN 60332-1-2
- APPLICATION: cables for high quality RG Type Coaxial cables, 50 or 75 Ohm is suitable for many applications, including low power video, video signal, and broadband signals.
URM67, URM70– URM Coaxial Cable
Model:
URM67, URM70
URM67, URM70
- Voltage Rating: 30V
- Temperature Rating: -20°C to +75ºC
- Conductor: Plain Copper Wire
- Insulation: PE
- Braiding: Copper Wire Braid
- Sheath: PVC
- Sheath Colour: Black; URM70: Black White
- STANDARDS: EN 50117-1; Flame Retardant according to IEC/EN 60332-3-10, IEC/EN 60332-1-2
- APPLICATION: High quality URM Type Coaxial cables, with URM67 for 50ohms and URM70 for 75 Ohm impedance, suitable for many applications, including low power video, video signal, and broadband signals. Also available Duct Grade PE or LSZH versions.

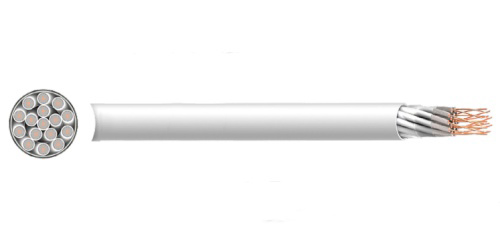

Coaxial BT3002 16 Way / 8 Way Cable
- Voltage Rating: 300V
- Temperature Rating: Fixed: +80ºC
- Conductor: Solid copper conductor
- Insulation: PE
- Braiding 1: Tinned copper (90%)
- Braiding 2: Tinned copper (90%)
- Inner Sheath: PVC
- Filler: PVC
- Outer Sheath: FR-PVC
- Sheath Colour: White
- STANDARDS: EN 50289, CW 1383
- APPLICATION: Manufactured according to BT specifications and used for the interconnection of data or telecoms equipment.

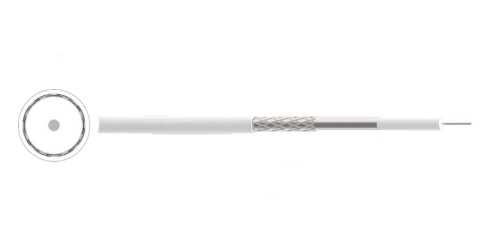

Coaxial RA7000 Equivalent Cable
- Voltage Rating: 30V
- Temperature Rating: +70ºC
- Conductor: Tinned copper conductor
- Insulation: Foam PE
- Shield: Bonded Aluminium PET
- Braiding: Tinned copper (93%)
- Sheath: LSZH
- Sheath Colour: White
- STANDARDS: CW 1992
- APPLICATION: Manufactured to BT specifications and used for interconnection of data or telecoms equipment.
| CT Coaxial Cable | ||||
| COAXIAL CABLE | NO. OF STRANDS | NOMINAL DIAMETER OF STRANDS mm | NOMINAL DIAMETER OVER INSULATION mm | NOMINAL OVERALL DIAMETER mm |
| CT100 FPE PVC | 1 | 1 | 4.6 | 6.6 |
| CT100 FPE LSZH | 1 | 1 | 4.6 | 6.6 |
| CT100 CPE PVC | 1 | 1 | 4.8 | 6.8 |
| CT100 FPE PE | 1 | 1 | 4.6 | 6.6 |
| CT100 FPE SHOTGUN | 1 (2) | 1 | 4.6 | 6.8 x 13.8 |
| CT125 FPE PVC | 1 | 1.25 | 5.6 | 7.8 |
| CT125 CPE PVC | 1 | 1.25 | 5.5 | 7.8 |
| CT125 FPE RBS | 1 | 1.25 | 5.5 | 9.6 |
| CT167 FPE LSZH | 1 | 1.67 | 7.24 | 10.2 |
| CT167 FPE PE | 1 | 1.65 | 7.28 | 10.1 |
| CT233 FPELSZH | 1 | 2.33 | 10.06 | 13 |
| RG Coaxial Cable | ||||
| COAXIAL CABLE | NO.OF STRANDS | NOMINAL DIAMETER OF STRANDS mm | NOMINAL OVERALL DIAMETER OF INSULATION mm | NOMINAL WEIGHT kg/km |
| RG6 | 1 | 1.02 | 4.6 | 37 |
| RG11 | 7 | 0.4 | 7.24 | 152 |
| RG59 | 1 | 0.58 | 3.7 | 52 |
| RG59 SHOTGUN LSZH CCA | 1 (2) | 0.58 | 3.7 | 91 |
| RG179 | 1 | 0.36 | 1.65 | 15 |
| RG213 PVC | ？ | 0.75 | 7.24 | 57 |
| RG213 LSZH | 7 | 0.75 | 7.25 | 57 |
| RG58PVC | 19 | 0.18 | 2.95 | － |
| URM Coaxial Cable | ||||
| COAXIAL CABLE | NO.OF STRANDS | NOMINAL DIAMETER OF STRANDS mm | NOMINAL OVERALL DIAMETER OF INSULATION mm | NOMINAL WEIGHT kg/km |
| URM67 | 7 | 0.75 | 7.25 | 57 |
| URM70 | 7 | 0.19 | 3.2 | 46 |
| Coaxial BT3002 16 Way / 8 Way Cable | ||||
| COAXIAL CABLE | NO. OF CORES | CONDUCTOR SIZE mm | NOMINAL THICKNESS OF INSULATION mm | NOMINAL OVERALL DIAMETER mm |
| 8 Way | 8 | 75 | 4.8 | 274.2 |
| 16 Way | 16 | 75 | 4.8 | 274.1 |
| Coaxial RA7000 Equivalent Cable | ||||
| NO. OF CORES | CONDUCTOR SIZE mm | NOMINAL THICKNESS OF INSULATION mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
| 1 | 1/0.61 | 2.8 | 4.5 | 29 |
