- URD Wire Feature
- Color: distribution cable is black.
- Description: Underground Secondary Distribution Cables are twisted assemblies of aluminum alloy 1350 conductors insulated with cross-linked polyethylene. This underground electrical wire is used in various underground applications in secondary distribution circuits at up to 600 volts.
- Conductor: Compressed Class B compressed stranded, 1350 series aluminum alloy.
- Insulation: Black cross-linked polyethylene (XLPE)

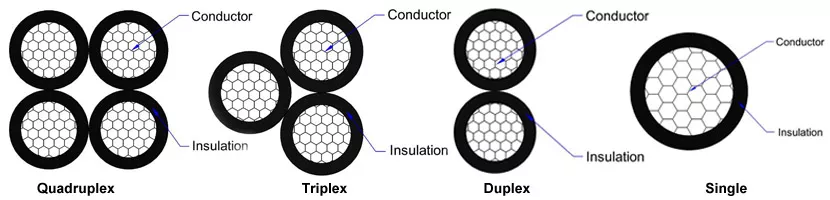

- Assembly: Phase conductors and neutral conductors are cabled together to form a twisted assembly.
- Applicable Standards: – UL 854: Service Entrance Cables
- – ICEA S-105-692 Standard for 600 Volt Single Layer Thermoset Insulated Utility Underground Distribution Cables.
Click the following tags to select your ideal abc cable:

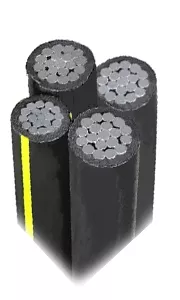

Quadruplex URD (Direct Burial) Wire
- 4-4-4-4 Tulsa URD Wire
- 2-2-2-4 Dyke URD Wire
- 2-2-2-2 Wittenburg URD Wire
- 1/0,1/0,1/0 & #2 Notre Dame URD Wire
- 2/0,2/0,2/0 & #1 Syracuse URD Wire
- 3/0,3/0,3/0 & 3/0 Davidson URD Wire
- 4/0,4/0,4/0 & 2/0 Wake Forest URD Wire
- 4/0,4/0,4/0 & 4/0 Earlham URD Wire

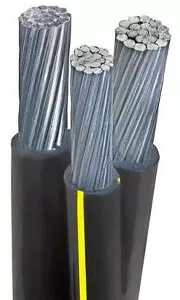

Triplex URD (Direct Burial) Wire
- 6-6-6 Erskine Triplex URD Wire
- 4-4-4 Vassar Triplex URD Wire
- 2-2-4 Stephens Triplex URD Wire
- 2-2-2 Ramapo Triplex URD Wire
- 1/0,1/0 & #2 Brenau Triplex URD Wire
- 1/0,1/0 & 1/0 Bergen Triplex URD Wire
- 2/0,2/0 & #1 Converse Triplex URD Wire
- 2/0,2/0 & 2/0 Hunter Triplex URD Wire

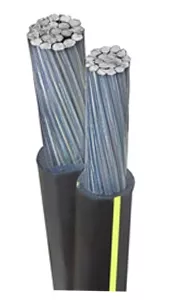

Duplex URD (Direct Burial) Wire
- 8-8 Bard duplex URD Wire(direct burial)
- 6-6 Bard duplex URD Wire(direct burial)
- 4-4 Bard duplex URD Wire(direct burial)
- 2-2 Bard duplex URD Wire(direct burial)

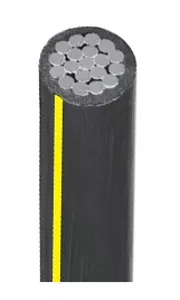

Single URD (Direct Burial) Wire
- 6AWG Princeton Single URD Wire
- 4AWG Mercer Single URD Wire
- 2AWG Clemson Single URD Wire
- 1/0 Harvard Single URD Wire
- 2/0 Yale Single URD Wire
- 3/0 Tufts Single URD Wire
- 4/0 Beloit Single URD Wire
- 250MCM Hofstra Single URD Wire
