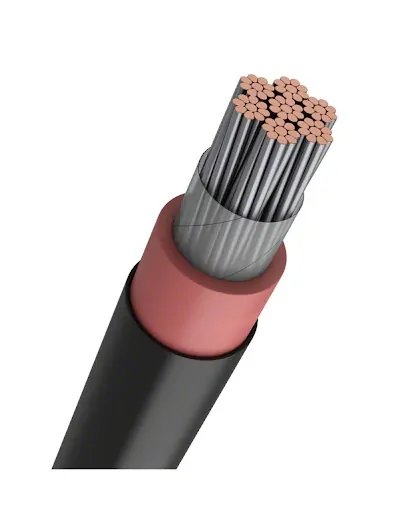

DLO Diesel Locomotive Cable 2000 Volts (EPR/XL-CPE)

Flexible, Oil-, Sunlight- and Ozone-Resistant, Flame-Retardant, -40°C to 90°C

APPLICATIONS AND FEATURES:

Huadong’s Heavy-Duty Flexible Portable Power Cable – DLO (HDFPC-DLO) – is manufactured with Flexible Stranded Rope-Lay, Class I Tinned Copper conductor, with a Thermoset Ethylene Propylene Diene Monomer (EPDM) insulation and Thermoset Chlorinated Polyethylene jacket (CPE).

DLO is a 2kV flexible power cable with a variety of possible applications such as but not limited to: Drilling rigs, railroad and transit car wiring, mining and other industrial equipment, and as flexible motor leads and wind turbine applications. The cable is suited for use in wet and dry areas, conduits, ducts, troughs, trays, and where superior electrical properties are desired. The maximum continuous conductor temperature for normal operation is 90°C wet or dry. DLO is oil, heat, flame, abrasion, and sunlight resistant. Approved for use per the NEC® as Type RHH/RHW-2 and per the CE Code as 2kV Type RW90.

DLO 2kV HDFPC-DLO, RHH/RHW-2 & RW90

• Voltage: 600 / 1,000 / 2,000 V
• Conductors: Flexible Stranded Rope-Lay Class I Tinned Copper per ASTM B33 and B172
• Binder Tape: Mylar Tape
• Insulation: EPDM (Inner) / CPE (Outer)
• Temperature: -40°C – +90°C (Dry / Wet)
