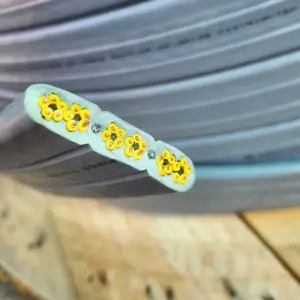

300/500V Flat H07VVH6-F, H05VVH6-F elevitor cable
- Rated Voltage: 300V, 500V, 600V
- Size: 0.5mm²～2mm², 20 AWG～14 AWG
- Core: 3C～60C
- Conductor: Soft Bare Copper
- Insulation: PVC
- Jacket: PVC
- Rated Temperature: 60℃, 70℃
- Application: Elevator traveling cable is a vital link between the elevator car and controller. In conventional elevators, all signal information is transmitted through the traveling cable.

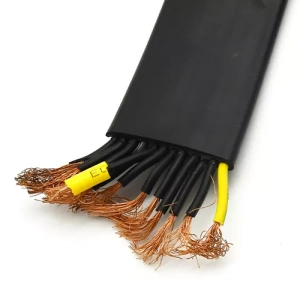

Flat Wire NGFLGOEU Cable
- Rated Voltage: 300V, 500V
- Conductor: Soft Bare Copper
- Size: 0.5mm²～2mm², 20 AWG～14 AWG
- Core: 3C～60C
- Insulation: EPR
- Jacket: CR
- Rated Temperature: -40℃~ 90℃
- Application: For the connection of mobile parts of machine tools, conveyor plants and large-scale equipment, if the cable is exposed to bends in only one level (cabletrolley). In dry, damp and wet rooms as well as outdoorse.

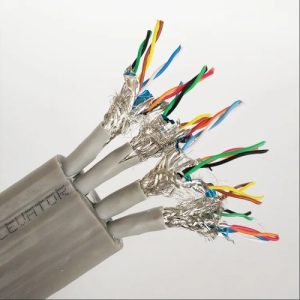

Cat6 / Cat6A / Cat6S / Cat6e / Cat7s Flat Elevator Cable
- Conductor: Tinned Copper
- Conductor Construction: Solid
- Insulation: PVC
- Individual Pair Shield: Al/PETP foil
- Overall Shield: Tinned Cu braid shield
- Outer Jacket: PVC
- Outer Jacket Colour: Grey
- Application: This is used aselevator datalancables in elevators. Specifically for elevator security cameras and monitoring systems.

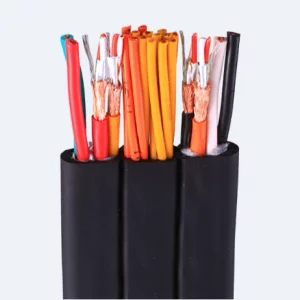

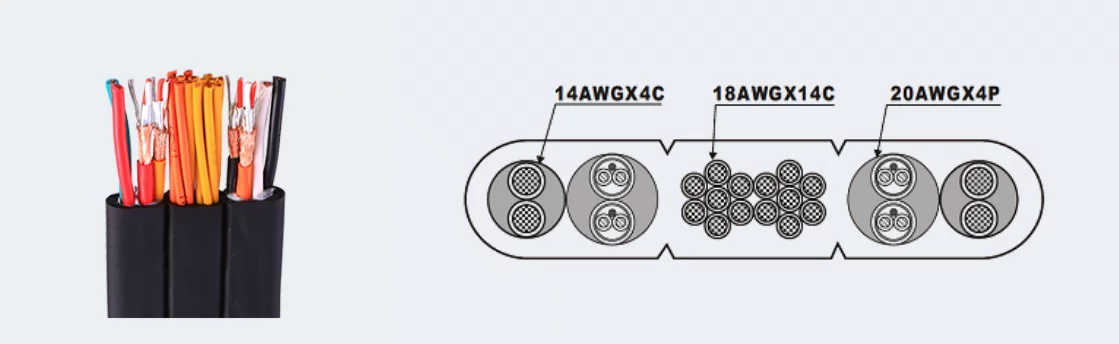

Elevator Traveling Cable Specification
- Elevator Cable Feature-UL & cUL ETT / UL ETP Approval：
- – UL & cUL ETT / UL ETP Approval.
- – Elevator Cable Application： ETT Steel Center & Jute Center traveling cable for elevators or lifts.
- – ETP single and stranded types, adding Shielded Pairs, Coaxial, etc for options.
- – Elevator Cable with steel wires for high traveling speed.
- Elevator Cable Feature-VDE / TUV / CCC Approval：
- – VDE / TUV / CCC Approval, standards: EN 50214, IEC 60227-6, GB/T 5023.6
- – Elevator Cable Types: H05VVH6-F, TVVB flat traveling cable for elevators or lifts.
- – Elevator Cable with steel wires for high trolley traveling speed.
- – Shielded Pairs, Coaxial can be added.
