Application
This power cable is suitable for fixed installations, preferably in cable ducts, indoors, outdoors, in water or underground if no mechanical damage is to be expected

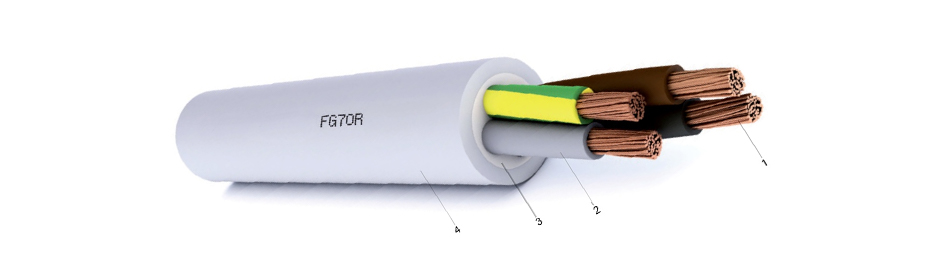

Construction
- 1 …..fine wired copper conductor, class 5
- 2 …..rigid EPM rubber
- 3 ….. thermoplastic compound, fire resistend, non water absorbing
- 4 ….. anti abrasive PVC compound, fire resistend, reduced wather permeability
Standards
- CEI 20-13
- IEC 60502-1
- CEI UNEL 35375 (cables with 1-5 cors)
- CEI UNEL 35377 (signal, with 6 and more cors)
Technical Data
- Information: short circuit temperature on core (max. 5 sec.) <=250 mm² –> 250°C >250 mm² –> 220°C
- Nominal voltage Uo/U: [V] 600 / 1000 Volt
- Test voltage: [V]AC 4000
- Temperature range:
- 1. in motion: 0°C do +90°C
- 2. fixed: -15°C do +90°C
0.6/1kV FG7OR Technical Sheet
| Number of cores and nominal cross section | Copper figure | Overall diameter | Weight cca | Current carrying capacity ground | Current carrying capacity air |
| mm² | kg/km | cca mm | kg/km | A | A |
| 1 x 1,5 | 14,4 | 5,8 | 47 | 21 | 24 |
| 1 x 2,5 | 24 | 6,3 | 60 | 27 | 33 |
| 1 x 4 | 38,4 | 6,7 | 78 | 35 | 45 |
| 1 x 6 | 57,6 | 7,4 | 103 | 44 | 58 |
| 1 x 10 | 96 | 8,3 | 146 | 59 | 80 |
| 1 x 16 | 153,7 | 9,5 | 204 | 77 | 107 |
| 1 x 25 | 241 | 11 | 300 | 100 | 135 |
| 1 x 35 | 336 | 12 | 399 | 121 | 169 |
| 1 x 50 | 480 | 14 | 550 | 150 | 207 |
| 1 x 70 | 672 | 16,1 | 781 | 184 | 268 |
| 1 x 95 | 912 | 18 | 1010 | 217 | 328 |
| 1 x 120 | 1155 | 19 | 1263 | 251 | 383 |
| 1 x 150 | 1440 | 22,3 | 1600 | 287 | 444 |
| 1 x 185 | 1776 | 23,7 | 1893 | 323 | 510 |
| 1 x 240 | 2305 | 26,4 | 2430 | 379 | 607 |
| 1 x 300 | 2880 | 31 | 3175 | 429 | 703 |
| 1 x 400 | 3840 | 35,7 | 4136 | 500 | 823 |
| Number of cores and nominal cross section | Copper figure | Overall diameter | Weight cca | Current carrying capacity ground | Current carrying capacity air |
| mm² | kg/km | cca mm | kg/km | A | A |
| 2 x 1,5 RE | 28,8 | 9,6 | 131 | 23 | 26 |
| 2 x 2,5 RE | 48 | 10,6 | 170 | 30 | 36 |
| 2 x 4 RE | 76,8 | 11,4 | 214 | 39 | 49 |
| 2 x 6 RE | 115,2 | 12,9 | 283 | 49 | 63 |
| 2 x 10 RE | 192 | 14,6 | 407 | 66 | 86 |
| 2 x 16 RM | 307,2 | 16,8 | 572 | 86 | 115 |
| 3 x 1,5 RE | 43,2 | 10,0 | 148 | 19 | 23 |
| 3 x 2,5 RE | 72 | 11,1 | 194 | 25 | 32 |
| 3 x 4 RE | 115,2 | 12,0 | 254 | 32 | 42 |
| 3 x 6 RE | 172,8 | 13,6 | 346 | 41 | 54 |
| 3 x 10 RE | 288 | 15,5 | 497 | 55 | 75 |
| 3 x 16 RE | 460,8 | 17,8 | 712 | 72 | 100 |
| 3 x 25 RM | 720 | 21,5 | 1.062 | 93 | 127 |
| 3 x 35 SM | 1008 | 25,1 | 1.492 | 114 | 158 |
| 3 x 50 SM | 1440 | 27,6 | 1.972 | 141 | 192 |
| 3 x 70 SM | 2016 | 32,6 | 2.856 | 174 | 246 |
| 3 x 95 SM | 2736 | 38,7 | 3.905 | 206 | 298 |
| 3 x 120 SM | 3456 | 41,1 | 4.474 | 238 | 346 |
| 3 x 150 SM | 4320 | 46 | 5.4 | 272 | 399 |
| 3 x 35/25 | 1248 | 25 | 1.641 | 114 | 158 |
| 3 x 50/25 | 1680 | 29,6 | 2.252 | 141 | 192 |
| 3 x 70/35 | 2352 | 34,5 | 3.222 | 174 | 246 |
| 3 x 95/50 | 3216 | 39 | 4.195 | 206 | 298 |
| 3 x 120/70 | 4128 | 42 | 5.307 | 238 | 346 |
| 3 x 150/95 | 5232 | 49 | 6.869 | 272 | 399 |
| 4 x 1,5 | 57,6 | 11,4 | 178 | 19 | 23 |
| 4 x 2,5 | 96 | 12 | 231 | 25 | 32 |
| 4 x 4 | 153,7 | 13 | 308 | 32 | 42 |
| 4 x 6 | 230,5 | 14,6 | 418 | 41 | 54 |
| 4 x 10 | 384 | 16,8 | 620 | 55 | 75 |
| 4 x 16 | 614,4 | 19,4 | 886 | 72 | 100 |
| 4 x 25 | 960 | 23,6 | 1.338 | 93 | 127 |
