Applications: Floating Cable relies on foam core extrusion capabilities to achieve precise cable buoyancy requirements. It is flexible, movable,UV-stable, good bendability, and abrasion-resistant and may be fitted with choice of jackets to achieve resistance to various chemicals including acids, salt water, oil, and gasoline. Cable is suited for powering and controlling robotic cleaning systems in swimming pools and aquarium facilities as well as marine applications and submersible environmental pumping systems.

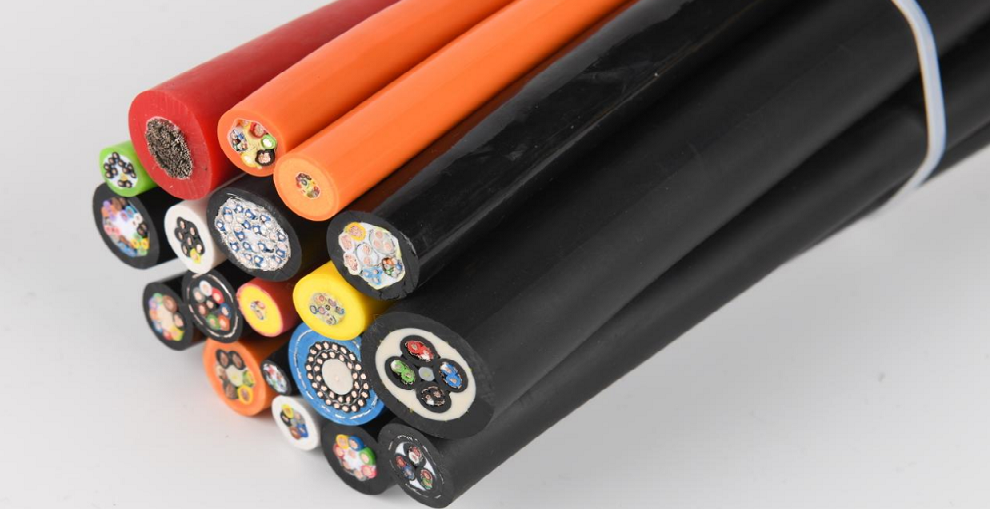

Floating Cable
- Conductors operating voltage: 3000 V
- Singlemode optical fibres:
- Attenuation at 1285-1330 nm : 0.36 to 0.40 dB/Km
- Attenuation at 1550 nm : 0.22 to 0.30 dB/Km
- Theoretical breaking strength: 15000 daN
- Operating temperature: -10 to 70°C
- Dynamic bending radius
- Weight in air: 1306 g/m
- Weight in seawater (cable’s interstices filled with oil density : 0.887): -30 g/m
- 8 singlemode 9/125 optical fibres in loose tubes,
- tubes stranded under a 11 conductors 1.2 mm², in flexible plain copper, polyolefine sheath
- Insulated in special polyolefine
ANLF9900 Floating Cable of Floating in Fresh Water or Sea Water 300/500 V
| Item | ANLF9900 Floating Cable of Floating in Fresh Water or Sea Water 300/500 V |
| Conductor | Solid copper conductor |
| Insulation | Special modified thermoplastic compound |
| Outer Sheath | Special compound foam sheath |
| Core Number | Multi-cores |
| Operating Voltage | Uo/U: 300/500 V |
| Test temperature | 2000 V |
| Operating temperature range | Flexible installtions: -40ºC ~ +80ºC Fixed installations: -60ºC ~ +80ºC |
| Color | Optional |
| Application | The product has the characteristics of floating or floating in freshwater or seawater with the working depth of the load and can be widely used as a power supply and control system in swimming pools and aquarium facilities, as well as marine robots and diving environment systems. |
