Application
These cables suitable for Control cabinet manufacturing, appliances and apparatus engineering, electric motor industry, sauna/solarium construction, thermal and heating elements, lighting technology, ventilator engineering, air-conditioning technology, furnace construction, polymer processing, generator and transformer manufacturing.

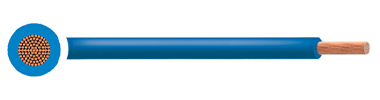

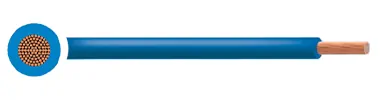

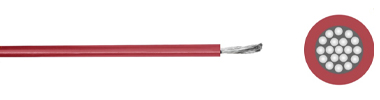

H03S-K 180°C High temperature Silicone Rubber Cable
- Voltage Rating Uo/U:300V/300V
- Temperature Rating Operating: -60ºC to +180ºC
- Conductor: Class 5 Flexible Bare or Tinned Copper
- Insulation: Silicone Rubber
- Colour: Black, Blue, Brown, Grey, Orange, Pink, Red, Turquoise, Violet, White, Green, Yellow or Green/Yellow
H05S-K/H07S-K 180°C High temperature Silicone Rubber Cable
- Rated voltage Uo/U: 300 /500 V; 450/750 V≥ 1,5 mm².
- Temperature range: -60° C ~ + 180° C (fìxed).
- Conductor: fexible copper wires. *upon request, the copper conductor can be tinned, nickel-plated or silver-plated.
- Insulation: silicone rubber compound, EI2
- Core identification:different colours are available.

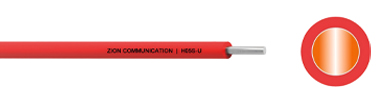

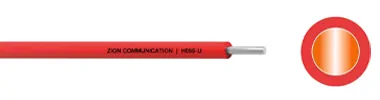

H05S-U 180°C High temperature Silicone Rubber Cable
- Rated Voltage : 300/500V
- Temperature Rating Operating: -60°C to +180°C
- Conductor: Conductor : rigid copper wire, class 1. *upon request, the copper conductor can be tinned, nickel-plated or silver-plated.
- Insulation : silicone rubber compound, EI2.
- Core identification : different colours are available.

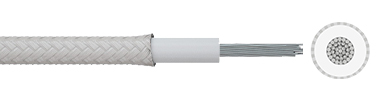

H05SJ-K Silicone Rubber Insulated Glass Fibre Braid Cable
- Rated Voltage : 300/500V
- Temperature Rating Operating: -60°C to +180°C
- Conductor: Annealed Tinned Copper Conductor (Opt: APC) as per EN 60228, Class 5
- Insulation : Elastomeric Compound Type EI 2 (Silicone Rubber)
- Insulation Colour : Black (or) As per customer order
- Outer Braid : Glass Fibre as per EN 50525-1

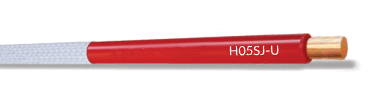

H05SJ-U Silicone Rubber Insulated Glass Fibre Braid Cable
- Rated Voltage : 300/500V
- Temperature Rating Operating: -60°C to +180°C
- Conductor: Annealed Tinned Copper Conductor (Opt: APC) as per EN 60228, Class 1
- Insulation : Elastomeric Compound Type EI 2 (Silicone Rubber)
- Insulation Colour : Black (or) As per customer order
- Outer Braid : Glass Fibre as per EN 50525-1

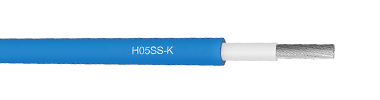

H05SS-K 180°C High temperature Silicone Rubber Cable
- Rated Voltage : 300/500V
- Temperature Rating Operating: Annealed Tinned Copper Conductor (Opt: APC) as per EN 60228, Class 5
- Conductor: Annealed Tinned Copper Conductor (Opt: APC) as per EN 60228, Class 1
- Insulation : Elastomeric Compound Type EI 2 (Silicone Rubber)
- Sheath: Elastomeric Compound Type EM 9 (Silicone Rubber)
- Insulation Colour : Black (or) As per customer order
- H03S-K Cable
- H05S-K/H07S-K Cable
- H05S-U Cable
- H05SJ-K Cable
- H05SJ-U Cable
- H05SS-K Cable
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm2 | NOMINAL THICKNESS OF INSULATION mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
| 1 | 0.5 | 0.6 | 2.1 | 8.3 |
| 1 | 0.75 | 0.6 | 2.4 | 11.5 |
| 1 | 1 | 0.6 | 2.5 | 13.8 |
| 1 | 1.5 | 0.7 | 3 | 19.3 |
| 1 | 2.5 | 0.8 | 3.6 | 30.8 |
| Core Numbers×Conductor Section (mm²) | O.D approx (mm) | Copper Factor (kg/km) | Cable Weight approx (kg/km) |
| 1×0,25 | 1,9 | 2,4 | 5,5 |
| 1×0,5 | 2,3 | 4,8 | 9,9 |
| 1×0,75 | 2,5 | 7,2 | 13,2 |
| 1×1 | 2,7 | 9,6 | 16,5 |
| 1×1,5 | 2,9 | 14.4 | 20,9 |
| 1×2,5 | 3,6 | 24,0 | 33 |
| 1×4 | 4,3 | 38,4 | 50,6 |
| 1×6 | 5 | 57,6 | 71,5 |
| 1×10 | 6,3 | 96,0 | 122,1 |
| 1×16 | 7,9 | 153,6 | 188,1 |
| 1×25 | 9,8 | 240,0 | 294,8 |
| 1×35 | 10,8 | 336,0 | 391,6 |
| 1×50 | 12,6 | 480,0 | 559,9 |
| 1×70 | 14,8 | 672,0 | 792 |
| 1×95 | 16,8 | 912,0 | 1093,4 |
| 1×120 | 19,1 | 1.152,0 | 1320 |
| 1×150 | 20,7 | 1.440,0 | 1661 |
| 1×185 | 24,7 | 1.776,0 | 2068 |
| 1×240 | 26,1 | 2.304,0 | 2805 |
| No. Of Cores | Nominal Cross Sectional Area (mm²) | Nominal Thickness Of Insulation(mm) | Nominal Overall Diameter(mm) | Nominal Weight(Kg/km) |
| 1 | 0.5 | 0.6 | 2 | 10 |
| 1 | 0.75 | 0.6 | 2.2 | 12 |
| 1 | 1 | 0.6 | 2.3 | 15 |
| 1 | 1.5 | 0.6 | 2.6 | 20 |
| 1 | 2.5 | 0.7 | 3.2 | 31 |
| 1 | 4 | 0.8 | 3.9 | 48 |
| 1 | 6 | 0.8 | 4.4 | 67 |
| 1 | 10 | 1 | 5.6 | 108 |
| Nominal Cross- Section | Insulation Thickness Nom. | Weight (Approx.) |
| mm2 | mm | Kg/Km |
| 0.5 | 0.6 | 11 |
| 0.75 | 0.6 | 14 |
| 1 | 0.6 | 17 |
| 1.5 | 0.7 | 24 |
| 2.5 | 0.8 | 35 |
| 4 | 0.8 | 54 |
| 6 | 0.8 | 74 |
| 10 | 1 | 118 |
| 16 | 1 | 172 |
| 25 | 1.2 | 267 |
| 35 | 1.2 | 355 |
| 50 | 1.4 | 495 |
| 70 | 1.4 | 670 |
| 95 | 1.6 | 890 |
| Nominal Cross- Section | Insulation Thickness Nom. | Weight(Approx.) |
| mm2 | mm | Kg/Km |
| 1 | 0.6 | 17 |
| 1.5 | 0.7 | 24 |
| 2.5 | 0.8 | 36 |
| 4 | 0.8 | 55 |
| 6 | 0.8 | 74 |
| 10 | 1 | 118 |
| Nominal Cross- Section | Insulation Thickness Nom | Sheath Thickness Nom. | Weight (Approx.) |
| mm2 | mm | mm | Kg/Km |
| 0.75 | 0.6 | 0.8 | 25 |
| 1 | 0.6 | 0.9 | 30 |
| 1.5 | 0.8 | 1 | 42 |
| 2.5 | 0.9 | 1.1 | 60 |
