Application
Heavy duty cable for use at medium mechanical stress in dry, wet and damp locations, as well as in free air. Also for fixed installation on plaster or machines. The cable is resistant to oil, UV-radiation and ozone.

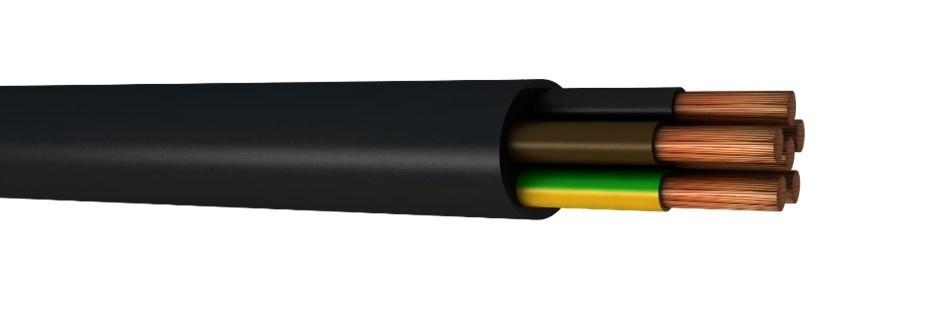

Construction
- Conductor: Copper, thin strands forming a flexible conductor class 5, IEC60228
- Insulation: EPR 90 °C, EI7 of EN50363-1
- Individual Core tape: PET Tape separates around the conductor for easy stripping
- Outer Sheath: EM7 to EN50363-2-1:2011
- Cable Standard: EN50255-2-21 Dekra type tested and certified
- Rated Voltage: 450/750 V
Standards
- IEC60332-1, IEC60332-3-24
- ISO 4892-82
- IEC60811-2-1
- EN50565 (HD516), IEC60364-5-52, BS7671
- VDE 0298-4 &NFC32-102-4
Technical Data
- Core Identification: Colours acc. VDE 0293 (HD 308 S2); more than 5 cores: gn-ye + numbers
- Outer Sheath Colours: Black; Other sheath colours available by request.
- Test voltage: [V]AC 4000
- Temperature range:
- 1 Max. operating temperature : 90 °C
- 2. Max. operating temperature, fixed : -40 – +90 °C
- 3 Temperature, moved/during installation : -40 – +90 °C
H07BN4-F Technical Sheet
| Number of Cores | Size Cross-Section in mm² | Diameter over Conductor in mm | Insulation Thickness in mm | Approx. Overall Diameter in mm | Weight of Cable Approx. (Kg/Km) |
| 1 | 4 | 2.55 | 1 | 7.67 | 96 |
| 1 | 6 | 3.02 | 1 | 8.34 | 121 |
| 1 | 10 | 4.4 | 1.2 | 10.5 | 196 |
| 1 | 16 | 5.5 | 1.2 | 11.8 | 265 |
| 1 | 25 | 6.9 | 1.4 | 13.8 | 383 |
| 1 | 35 | 8 | 1.4 | 15.3 | 491 |
| 1 | 50 | 9.6 | 1.6 | 17.7 | 689 |
| 1 | 70 | 11.5 | 1.6 | 20 | 900 |
| 1 | 95 | 13.5 | 1.8 | 22.8 | 1188 |
| 1 | 120 | 15.5 | 1.8 | 25.2 | 1494 |
| 1 | 150 | 17.1 | 2 | 27.6 | 1814 |
| 1 | 185 | 18.5 | 2.2 | 29.8 | 2171 |
| 1 | 240 | 21.7 | 2.4 | 33.6 | 2767 |
| 1 | 300 | 24.4 | 2.6 | 36.9 | 3424 |
| 1 | 400 | 28.1 | 2.8 | 41.4 | 4481 |
| 3G | 1.5 | 1.55 | 0.8 | 10 | 149 |
| 3G | 2.5 | 1.95 | 0.9 | 11.7 | 211 |
| 3G | 4 | 2.55 | 1 | 13.6 | 300 |
| 3G | 6 | 3.02 | 1 | 15.4 | 397 |
| 3G | 10 | 4.4 | 1.2 | 21.6 | 754 |
| 3G | 16 | 5.5 | 1.2 | 24.4 | 1013 |
| 3G | 25 | 6.9 | 1.4 | 28.9 | 1473 |
| 3G | 35 | 8 | 1.4 | 32 | 1865 |
| 3G | 50 | 9.6 | 1.6 | 37.1 | 2602 |
| 3G | 70 | 11.5 | 1.6 | 41.8 | 3370 |
| 3G | 95 | 13.5 | 1.8 | 48 | 4477 |
| 3G | 120 | 15.5 | 1.8 | 52.9 | 8509 |
| 3G | 150 | 17.1 | 2 | 58 | 6780 |
| 3G | 185 | 18.5 | 2.2 | 62.7 | 8085 |
| 3G | 240 | 21.7 | 2.4 | 87.9 | 10509 |
| 4G | 1.5 | ||||
| 4G | 2.5 | 1.93 | 0.9 | 12.9 | 268 |
| 4G | 4 | 2.46 | 1 | 14.8 | 376 |
| 4G | 6 | 2.93 | 1 | 16.6 | 498 |
| 4G | 10 | ||||
| 4G | 25 | ||||
| 5G | 1.5 | 1.55 | 0.8 | 12.1 | 217 |
| 5G | 2.5 | 1.95 | 0.9 | 14.1 | 307 |
| 5G | 4 | 2.55 | 1 | 16.7 | 448 |
| 5G | 6 | 3.02 | 1 | 19 | 604 |
| 5G | 10 | 4.4 | 1.2 | 26 | 1100 |
| 5G | 16 | 5.5 | 1.2 | 29.5 | 1504 |
| 5G | 25 | 6.9 | 1.4 | 35.4 | 2229 |
| 5G | 35 | 8 | 1.4 | 38.9 | 2803 |
| 5G | 50 | 9.6 | 1.6 | 45.5 | 3963 |
| 5G | 70 | 11.5 | 1.6 | 51.6 | 5186 |
| 5G | 95 | 13.5 | 1.8 | 59.3 | 6893 |
| 5G | 120 | 15.5 | 1.8 | 64.7 | 8509 |
| 5G | 150 | 17.1 | 2 | 71.1 | 10353 |
| 5G | 185 | 18.5 | 2.2 | 77.2 | 12425 |
| 5G | 240 | 21.7 | 2.4 | 88.9 | 16093 |
