300/500V H05RN-F, H05RR-F H05BQ-F 450/750V H07BQ-F, H07RN-F Fexible Rubber Cable

Description

The 300/500V h05RN-F cable, H05RR-F, H05BQ-F cable and 3450/750V h07RN-F cable, H07RR-F, H07BQ-F cable are mainly used the for Suitable for all kinds of handling equipment, mobile power supplies, worksites, port areas etc. they are conductor design as flexible copper class 5, insulation is EPR rubber. The feature resistance to sunlight, Wear-resistant, torsion etc

3 Core H07BQ-F EPR/PUR Rubber Cable

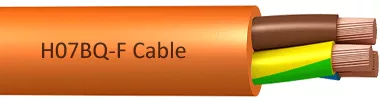

H07BQ-F-Cable

Voltage: 450/750V
Core: 3Core
Conductor: Class 5 flexible copper
Insulation: EPR
Sheath: PUR
SheatSheath color: Black
Core Identification
3core: Green/Yellow Blue Brown
Standard: IEC, BS, DIN, VDE, ASTM, CSA or Customized

4 Core H07RN-F EPR/PCP Rubber Cable

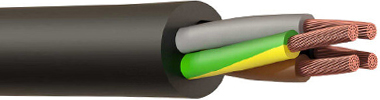

4Core-H07RN

Voltage: 450/750V
Core: 4Core
Conductor: Class 5 flexible Stranded copper
Insulation: EPR
Sheath: PCP
SheatSheath color: Black
4core: Green/Yellow Brown Black Grey
Standard: IEC, BS, DIN, VDE, ASTM, CSA or Customized

5 Core H07RN-F EPR/PCP Rubber Cable

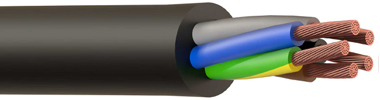

5Core-H07RN

Voltage: 450/750V
Core: 5Core
Conductor: Class 5 flexible Stranded copper
Insulation: EPR
Sheath: PCP
SheatSheath color: Black
Core Identification
5core: Green/Yellow Brown Black Grey Blue
Standard: IEC, BS, DIN, VDE, ASTM, CSA or Customized

2 Core H05RN-F EPR/PCP Rubber Cable

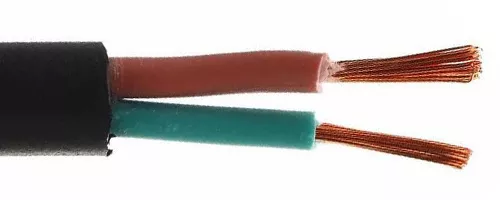

2Core-H05RN

Voltage: 300/500V
Core: 2Core
Conductor: Class 5 flexible Stranded copper
Insulation: EPR
Sheath: PCP
SheatSheath color: Black
Core Identification
2core: Blue Brown
Standard: IEC, BS, DIN, VDE, ASTM, CSA or Customized

3 Core H05RN-F EPR/PCP Rubber Cable

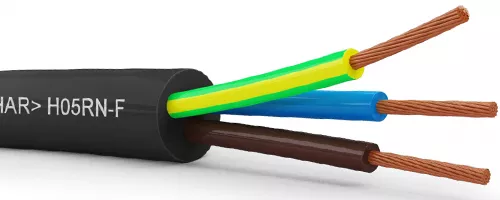

3Core-H05RN

Voltage: 300/500V
Core: 3Core
Conductor: Class 5 flexible Stranded copper
Insulation: EPR
Sheath: PCP
SheatSheath color: Black
Core Identification
3core: Green/Yellow Blue Brown
Standard: IEC, BS, DIN, VDE, ASTM, CSA or Customized

4 Core H05RN-F EPR/PCP Rubber Cable

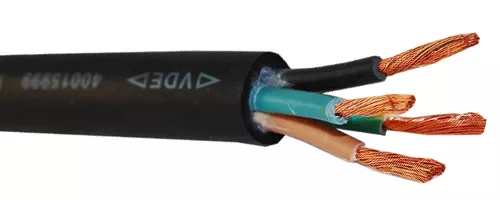

4Core-H05RN

Voltage: 300/500V
Core: 4Core
Conductor: Class 5 flexible Stranded copper
Insulation: EPR
Sheath: PCP
SheatSheath color: Black
Core Identification
4core: Green/Yellow Blue Brown Grey
Standard: IEC, BS, DIN, VDE, ASTM, CSA or Customized

H07RN-F Cable Parameter
H05RN-F Cable Parameter
H05RR-F Cable Parameter

Number of cores and mm² per conductor	Outer diameter [mm]	Copper index (kg/km)	Weight (kg/km)
4 G 1.5	10.2 – 11.7	57.6	200
5 G 1.5	11.2 – 12.8	72	240
7 G 1.5	14.7 – 16.5	100.8	385
12 G 1.5	17.6 – 19.8	172.8	516
2 X 2.5	10.2 – 11.7	48	195
3 G 2.5	10.9 – 12.5	72	235
4 G 2.5	12.1 – 13.8	96	290
5 G 2.5	13.3 – 15.1	120	294
7 G 2.5	17.1 – 19.3	168	520
12 G 2.5	20.6 – 23.1	288	810
19 G 2.5	25.5 – 31	456	1200
2 X 4.0	11.8 – 13.4	76.8	270
3 G 4.0	12.7 – 14.4	115.2	320
4 G 4.0	14.0 – 15.9	153.6	395
5 G 4.0	15.6 – 17.6	192	485
7 G 4.0	20.1 – 22.4	268.8	681
3 G 6.0	14.1 – 15.9	172.8	360
4 G 6.0	15.7 – 17.7	230.4	475
5 G 6.0	17.5 – 19.6	288	760
3 G 10.0	19.1 – 21.3	288	880
4 G 10.0	20.9 – 23.3	384	1060
5 G 10.0	22.9 – 25.6	480	1300
3 G 16.0	21.8 – 24.3	460.8	1090
4 G 16.0	23.8 – 26.4	614.4	1345
5 G 16.0	26.4 – 29.2	768	1680
4 G 25.0	28.9 – 32.1	960	1995
5 G 25.0	32.0 – 35.4	1200	2470
3 G 35.0	29.3 – 32.5	1008	1910
4 G 35.0	32.5 – 36.0	1344	2645
5 G 35.0	35.7 – 39.5	1680	2810
4 G 50.0	37.7 – 41.5	1920	3635
5 G 50.0	41.8 – 46.6	2400	4050
4 G 70.0	42.7 – 47.1	2688	4830
4 G 95.0	48.4 – 53.2	3648	6320

Number of cores and mm² per conductor	Outer diameter [mm]	Copper index (kg/km)	Weight (kg/km)
2 X 0.75	5.7 – 6.7	14.4	55
3 G 0.75	6.2 – 7.4	21.6	68
4 G 0.75	6.8 – 7.9	28.8	81
2 X 1.0	6.1 – 7.3	19.2	63
3 G 1.0	6.5 – 7.7	28.8	78

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA	NOMINAL THICKNESS OF INSULATION	NOMINAL OVERALL DIAMETER
NO. OF CORES	mm2	mm	mm
2	0.75	0.6	6.1
2	1	0.6	6.6
2	1.5	0.8	7.8
2	2.5	0.9	9.2
2	4	1	10.8
3	0.75	0.6	6.6
3	1	0.6	7
3	1.5	0.8	8.4
3	2.5	0.9	9.9
3	4	1	11.7
3	6	1	13.3
4	0.75	0.6	7.3
4	1	0.6	7.6
4	1.5	0.8	9.4
4	2.5	0.9	11.1
4	4	1	13
4	6	1	14.5
5	0.75	0.6	8.1
5	1	0.6	8.4
5	1.5	0.8	10.3
5	2.5	0.9	12.4
5	4	1	14.5

H07RN-F Cable Application

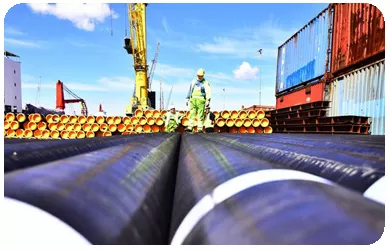

Oil&Gas Industry

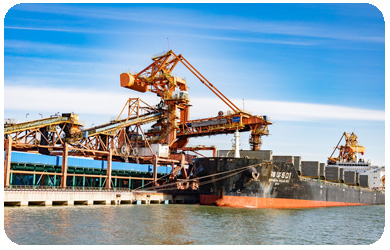

Port Areas Operation
