APPLICATION

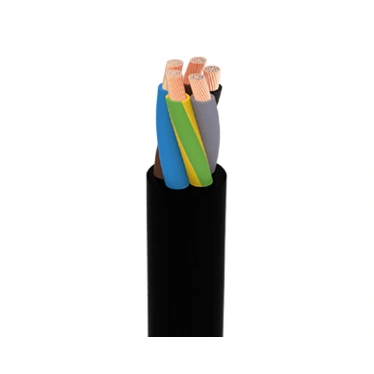

H07ZZ-F (AS) is a flexible cable for mobile service, suitable for installations where low smoke and halogen free fumes under fire conditions are required. Suitable for installations where the cable must withstand medium mechanical stress, for machines in industrial and agricultural workshops, for motors and transportable machines on construction sites, for windmills and for agricultural applications.
- Voltage Rating Uo/U: 450/750 V
- Conductor: Electrolytic annealed copper, class 5 (flexible)
- Insulation: LSHF Rubber type EI8 according to EN 50363- 5.
- The standard identification of insulated conductors is the following:
- 1 x Natural
- 2 x Blue + Brown
- 3 G Blue + Brown + Yellow/Green
- 4 G Brown + Black + Grey + Yellow/Green
- 5 G Brown + Black + Grey + Blue + Yellow/Green
- 6 or more Black numbered + Yellow/Green
- Outer sheath: Low Smoke halogen free (LSHF) rubber type EM8 according to EN 50363-6. Black color.
- Applications
- 1 ) Industrial use.
- 2) Mobile use.
- 3) Wind turbines.
| Cross Sections (mm2) | Nominal Overall Diameter (mm) | Approximate Weight(kg/km) | Cross Sections (mm2) | Nominal Overall Diameter (mm) | Approximate Weight(kg/km) |
| 1×1,5 | 6,20 | 56 | 3×240 | 69,80 | 10627 |
| 1×2,5 | 6,80 | 71 | 3×300 | 77,10 | 13055 |
| 1×4 | 7,70 | 97 | 4X1 | 10,10 | 150 |
| 1×6 | 8,40 | 123 | 4X1,5 | 11,20 | 191 |
| 1xlO | 10,30 | 191 | 4×2,5 | 13,00 | 269 |
| 1×16 | 11,50 | 260 | 4X4 | 14,90 | 374 |
| 1×25 | 14,20 | 388 | 4×6 | 16,70 | 493 |
| 1×35 | 15,50 | 502 | 4×10 | 23,00 | 894 |
| 1×50 | 17,80 | 680 | 4×16 | 25,80 | 1.211 |
| 1×70 | 20,10 | 927 | 4×25 | 32,40 | 1.867 |
| 1×95 | 22,50 | 1.185 | 4×35 | 35,10 | 2.361 |
| 1×120 | 24,60 | 1.47 | 4×50 | 40,50 | 3.206 |
| 1×150 | 26,80 | 1.797 | 4×70 | 45，90 | 4.352 |
| 1×185 | 29,50 | 2.167 | 4×95 | 51,80 | 5.646 |
| 1×240 | 33,00 | 2833 | 4×120 | 56,50 | 6.888 |
| 1×300 | 36,00 | 3442 | 4×150 | 61,80 | 8.424 |
| 1×400 | 41,30 | 4459 | 4×185 | 68，40 | 10.231 |
| 1×500 | 44,60 | 5748 | 4×240 | 77,80 | 13535 |
| 1×630 | 47,80 | 7178 | 4×300 | 86,00 | 16633 |
| 2×1 | 8,40 | 100 | 5×1 | 11,10 | 182 |
| 2×1,5 | 9,40 | 128 | 5×1,5 | 12,40 | 235 |
| 2×2,5 | 11,00 | 181 | 5×2,5 | 14,40 | 331 |
| 2×4 | 12,60 | 248 | 5×4 | 16,70 | 469 |
| 2×6 | 14,00 | 318 | 5×6 | 19,00 | 622 |
| 2×10 | 19,60 | 601 | 5×10 | 25,30 | 1.091 |
| 2×16 | 22,00 | 799 | 5×16 | 28,60 | 1496 |
| 2×25 | 26,80 | 1.184 | 5×25 | 25,90 | 2302 |
| 3×1 | 9,10 | 121 | 6×1,5 | 14,60 | 317 |
| 3×1,5 | 10,10 | 153 | 6×2,5 | 16,80 | 438 |
| 3×2,5 | 11,80 | 217 | 6×4 | 19,30 | 609 |
| 3×4 | 13,50 | 300 | 7×1,5 | 14,60 | 327 |
| 3×6 | 15,00 | 390 | 7×2,5 | 16,80 | 454 |
| 3×10 | 21,10 | 731 | 7×4 | 19,30 | 635 |
| 3×16 | 23,60 | 980 | 12×1,5 | 19,20 | 531 |
| 3×25 | 29,20 | 1483 | 12×2,5 | 22,10 | 739 |
| 3×35 | 31,70 | 1.873 | 12×4 | 25,80 | 1.061 |
| 3×50 | 36,60 | 2.546 | 18×1,5 | 22,40 | 742 |
| 3×70 | 41,30 | 3.429 | 18×2,5 | 26,00 | 1.05 |
| 3×95 | 46,60 | 4.413 | 18×4 | 30,30 | 1507 |
| 3×120 | 50,90 | 5.43 | 24×1,5 | 26,20 | 967 |
| 3×150 | 55,50 | 6.614 | 24×2,5 | 30,60 | 1.382 |
| 3×185 | 61,30 | 8.021 | 36×1,5 | 30,00 | 1.344 |
| 3×240 | 69,80 | 10627 | 36×2,5 | 35,20 | 1.944 |
