Application
Flexiable low voltage reeling cable for application under high and very high mechanical stresses. We can customize all kinds of special cables according to customer’s needs.
Construction
- Conductor: Fine stranded bare/tinned copper
- Insulation: PE (polyethylene)
- Core color: TBD acc. to DIN 47100 standard.
- Outer sheath: PUR (polyurethane)
- Sheath color: Grey(RAL 7001), Black(RAL 9005) or Orange(RAL 2003)
Technical data
- Rated voltage: 0.6/1KV(600/1000V)
- Max.permissble operating voltage AC: 0.7/1.2KV
- Max.permissble operating voltage DC: 0.9/1.8KV
- AC Test Voltage: 3.5KV(5 Min.)
- Temperature range: -40℃ till +80℃
- Operating temperature: -40℃ till +80℃
- Max. tensile load on the conductor: 15N/mm2
- Min.bending radius: Acc.to VDE 0298 part 3
- Travel speed: Trollry(festoon system):240m/min
- Reeling operation: 60m/min

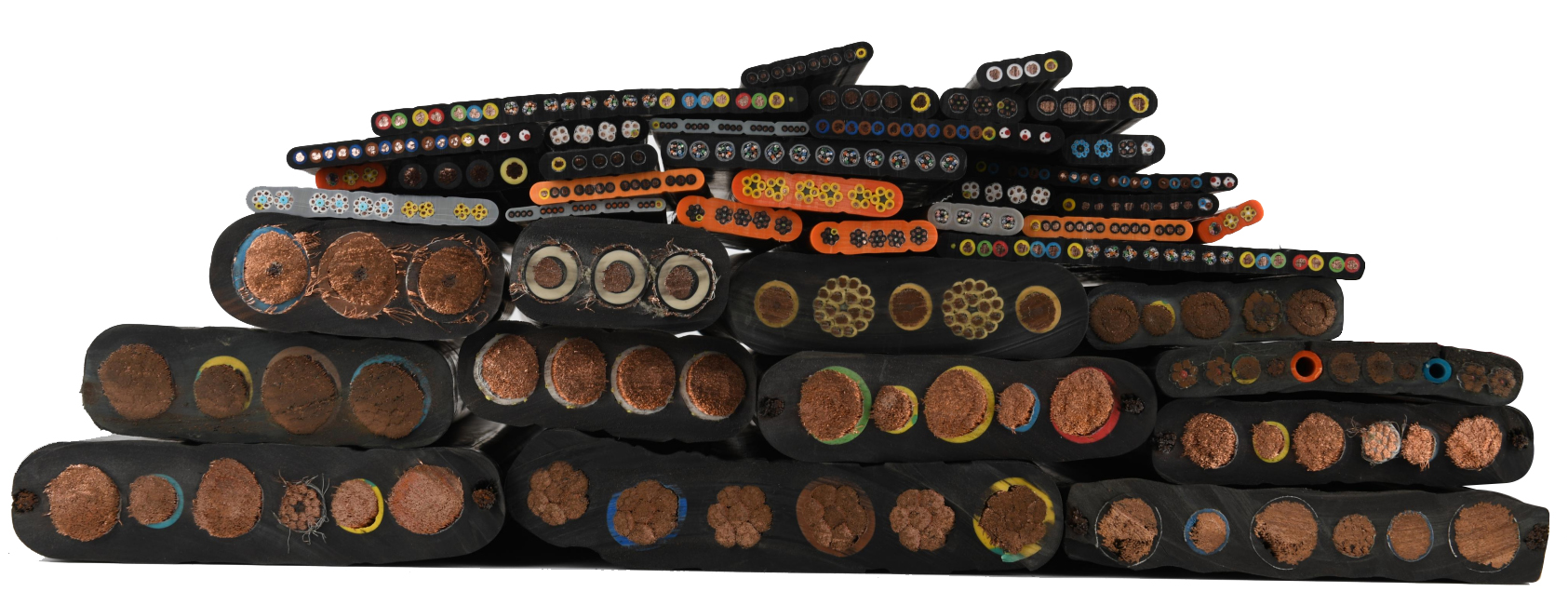

Huadong Flat Lift Cable

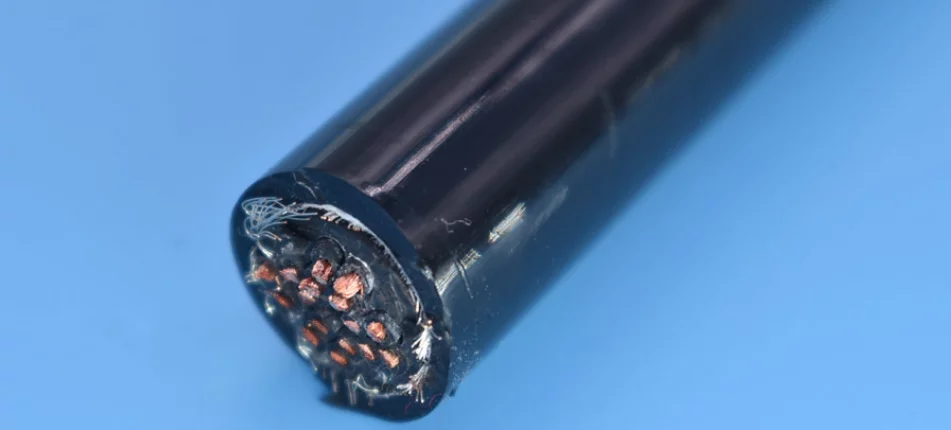

Low voltage lift control cable LYSLTK information
| cores NO.× cross section | conductor diamater max.mm | outer diameter min. mm | outer diameter max.mm | bending radius free moving min.m | permissible tensile force max.N | weight kg/km | conduator resistance max ῼ/km | carrying capacity |
| 4×25 | 7.3 | 28.5 | 31.5 | 158 | 3000 | 1850 | 0.8 | 131 |
| 5×16 | 5.6 | 26.1 | 29.1 | 146 | 2400 | 1500 | 1.24 | 99 |
| 5×25 | 7.3 | 33.7 | 36.7 | 184 | 3750 | 2340 | 0.8 | 131 |
| 36×1.5 | 1.6 | 26.5 | 29.5 | 148 | 1620 | 1290 | 13.7 | 23 |
| 12×1(c) | 1.3 | 22.9 | 25.9 | 130 | 360 | 880 | 20 | 18 |
