Huadong Cable Group‘s marine Cables are proven effective, safe, long-lasting, and reliable in various challenging conditions such as corrosion, moisture, salty water, oil, heat, etc. All cables we designed to meet all product quality and safety requirements such as JIS C3410, IEC 60092, and NEK606 standards. It passed ABS, CCC, UL classifications. Being a professional marine cable manufacturer, Huadong cable can manufacture a wide range of cables for your specific requirements.

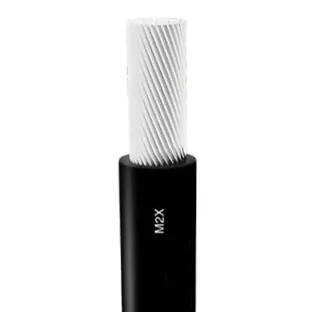

M2X/L-M2X/M2XH(FI)/M2XH-(NOFI) Marine Cable
- Voltage: 300/500V
- Conductor: Electrolytic, stranded, annealed copper wire IEC 60228 Class 2 (Class 5 and / or tinned on request)
- Insulation: Halogen free, flame retardant, cross linked polyolefin compound (HF90). Double insulation is available on request.
- Color: Orange or Green
- Application: Used as fixed installation cables in various electromechanical and electronic equipments. Since it has type approval, it can be used in marine switchboards.

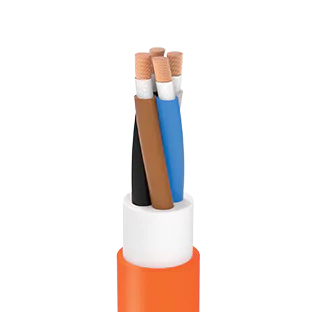

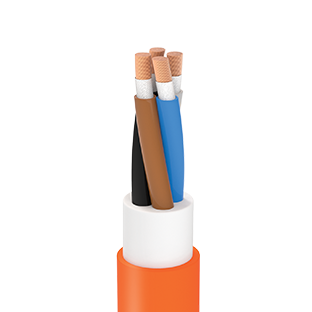

M2XH(FI or NOFI)/M2XH-FFR(FI or NOFI) Marine Cable
- Conductor: Electrolytic, stranded, annealed copper wire IEC 60228 Class 2 (Class 5 and / or tinned on request)
- Fire Barrier: Mica tape.
- Insulation: Cross linked polyethylene compound (XLPE).
- Inner Covering: Separating foil.
- Outer sheath: Halogen-free, flame retardant, polyolefin based compound (SHF 1).
- Color: Orange or Green
- NOFI: With separating foil
- FI: With extruded bedding compound

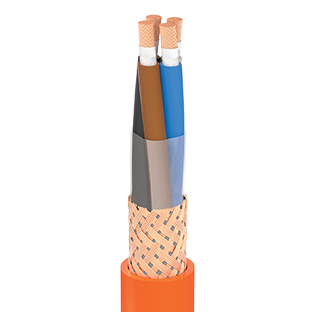

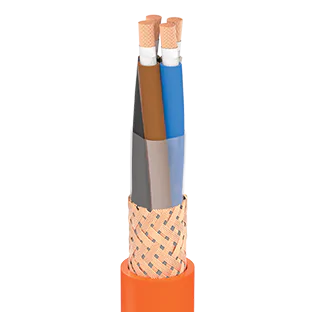

M2XCH(FI or NOFI)/M2XCH-FFR(FI or NOFI) Marine Cable
- Conductor: Electrolytic, stranded, annealed copper wire IEC 60228 Class 2 (Class 5 and / or tinned on request)
- Fire Barrier: Mica tape.
- Insulation: Cross linked polyethylene compound (XLPE).
- Inner Covering: Separating foil.
- Screen: Tinned copper wire braid on request
- Outer sheath: Halogen-free, flame retardant, polyolefin based compound (SHF 1).
- Color: Orange or Green
- NOFI: With separating foil
- FI: With extruded bedding compound

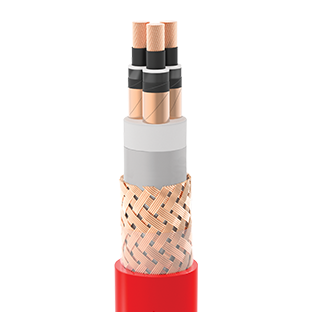

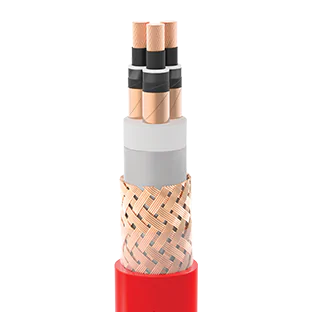

3.6/7.2kV, 6/10kV, 8.7/10kV MVCECH Marine Cable
- Conductor: Electrolytic, stranded, annealed copper wire IEC 60228 Class 2 (Class 5 and / or tinned on request)
- Conductor Screen: Semiconductive layer
- Insulation: HF HEPR Compound.
- Insulation Screen: Semiconductive layer.
- Core Screen: Copper Tape.
- Inner Covering: Separating foil and / or halogen-free compound.
- Screen: Copper / poylester tape coverage 100% and copper wire braided
- Outer sheath: Halogen-free, flame retardant, polyolefin based compound (SHF 1) SHF2 on request)

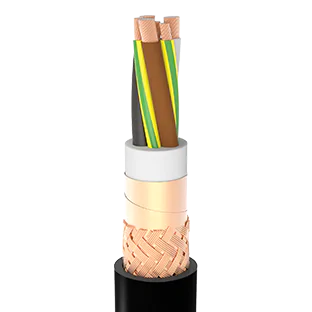

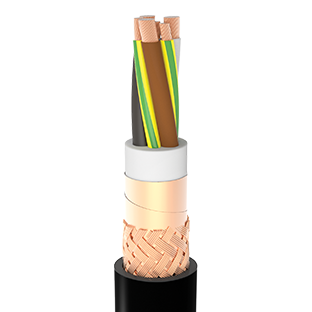

0.3/1kV 0.8/3kv M2XCH-EMC VFD Marine Cable
- Conductor: Electrolytic, stranded, annealed copper wire IEC 60228 Class 2 (Class 5 and / or tinned on request)
- Insulation: Cross linked polyethylene compound (XLPE).
- Inner Covering: Separating foil and / or halogen-free compound.
- Screen: Copper / poylester tape coverage 100% and copper wire braided
- Outer sheath: Halogen-free, flame retardant, polyolefin based compound (SHF 1).
- Color: Black or Grey

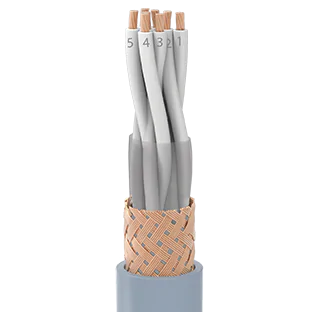

FA2XCH/FM2XAH/FM2XAAF Control Marine Cable
- Conductor: Electrolytic, stranded, annealed copper wire IEC 60228 Class 2 (Class 5 and / or tinned on request)
- Insulation: Cross linked polyethylene compound (XLPE).
- Inner Covering: Separating foil.
- Outer sheath: Halogen-free, flame retardant, polyolefin based compound (SHF 1).
- Color: Black or Grey
- FM2XCCH Marine Cable Parameter
- MVCECH 6 /10 (12) kV Marine Cable
| Cross Section (mm2) | Overall Diameter (mm) | Approximate Weight (kg / km) | Min.Bending Radius Fixed Installed (mm) | Max Resistance of Conductors at 200C (ohm / km) | Current Carrying Capacity at 450C (A) |
| 2x2x0,5 | 9,9 | 124 | 60 | 40,4 | 9 |
| 4x2x0,5 | 11,5 | 182 | 69 | 40,4 | 6 |
| 7x2x0,5 | 14,0 | 296 | 84 | 40,4 | 5 |
| 12x2x0,5 | 18,0 | 540 | 108 | 40,4 | 5 |
| 16x2x0,5 | 20,0 | 570 | 120 | 40,4 | 4 |
| 18x2x0,5 | 21,0 | 618 | 126 | 40,4 | 4 |
| 24x2x0,5 | 22,6 | 765 | 136 | 40,4 | 4 |
| 2x2x0,75 | 11,5 | 158 | 69 | 26,0 | 11 |
| 4x2x0,75 | 13,2 | 235 | 80 | 26,0 | 8 |
| 7x2x0,75 | 16,2 | 375 | 98 | 26,0 | 7 |
| 12x2x0,75 | 21,3 | 594 | 128 | 26,0 | 6 |
| 16x2x0,75 | 24,3 | 750 | 146 | 26,0 | 5 |
| 18x2x0,75 | 25,7 | 835 | 155 | 26,0 | 5 |
| 24x2x0,75 | 30,3 | 1090 | 182 | 26,0 | 5 |
| 2x2x1 | 12,1 | 175 | 73 | 19,2 | 13 |
| 4x2x1 | 14,5 | 295 | 87 | 19,2 | 9 |
| 7x2x1 | 17,2 | 428 | 104 | 19,2 | 8 |
| 12x2x1 | 22,6 | 680 | 136 | 19,2 | 7 |
| 16x2x1 | 25,8 | 860 | 155 | 19,2 | 6 |
| 18x2x1 | 27,1 | 942 | 163 | 19,2 | 6 |
| 24x2x1 | 31,9 | 1230 | 192 | 19,2 | 6 |
| 2x2x1,5 | 14,7 | 260 | 89 | 12,8 | 17 |
| 4x2x1,5 | 17,2 | 390 | 104 | 12,8 | 12 |
| 7x2x1,5 | 20,5 | 575 | 123 | 12,8 | 10 |
| Cross Section (mm2) | Overall Diameter (mm) | Approximate Weight (kg / km) | Min.Bending Radius Fixed Installed (mm) | Max Resistance of Conductors at 200C (ohm / km) | Current Carrying Capacity at 450C (A) |
| 1 x 16 | 22,0-25,5 | 810 | 306 | 1,15 | 96 |
| 1 x 25 | 23,4-27,1 | 970 | 325 | 0,727 | 127 |
| 1 x 35 | 24,7-28,6 | 1110 | 343 | 0,524 | 157 |
| 1 x 50 | 25,8-29,9 | 1280 | 358 | 0,387 | 196 |
| 1 x 70 | 27,3-31,6 | 1530 | 379 | 0,268 | 242 |
| 1 x 95 | 29,2-33,8 | 1860 | 406 | 0,193 | 293 |
| 1 x 120 | 30,5-35,4 | 2020 | 424 | 0,153 | 339 |
| 1 x 150 | 34,2-39,6 | 2540 | 475 | 0,124 | 389 |
| 1 x 185 | 35,3-40,9 | 3040 | 490 | 0,0991 | 444 |
| 1 x 240 | 38,0-44,0 | 3735 | 528 | 0,0754 | 522 |
| 1 x 300 | 40,5-46,9 | 4450 | 562 | 0,0601 | 601 |
| 3 x 16 | 41,0-47,5 | 2690 | 427 | 1,15 | 67 |
| 3 x 25 | 44,2-51,2 | 3270 | 460 | 0,727 | 89 |
| 3 x 35 | 47,3-54,7 | 3800 | 492 | 0,524 | 110 |
| 3 x 50 | 49,4-57,1 | 4380 | 514 | 0,387 | 137 |
| 3 x 70 | 52,8-61,1 | 5250 | 550 | 0,268 | 169 |
| 3 x 95 | 57,0-66,0 | 6450 | 594 | 0,193 | 205 |
| 3 x 120 | 63,6-73,6 | 7750 | 662 | 0,153 | 237 |
| 3 x 150 | 67,5-78,1 | 9050 | 703 | 0,124 | 272 |
| 3 x 185 | 68,4-79,2 | 10150 | 713 | 0,0991 | 311 |
| 3 x 240 | 74,1-85,8 | 12560 | 772 | 0,0754 | 365 |
| 3 x 300 | 80,1-92,8 | 15260 | 835 | 0,0601 | 421 |
