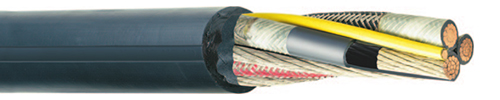

Type SHD-GC CPE/TPU Mining Cable

Type-SHD-GC-3C-5kv-CPE

  • Voltage: 2kV, 5kV, 8kV, 15kV, 25kV
  • Type: Flat or Round
  • Conductor: Flexible tinned copper
  • Insulation: EPR (90°C)
  • Insulation Shielding: Tinned copper and color-coded nylon braid
  • Ground Check Conductor: Flexible tinned copper with yellow XLPE insulation
  • Ground Wires: Flexible tinned copper
  • Jacket: CPE or TPU
  • Standard: IEC, BS, DIN, VDE, ASTM, CSA or Customized

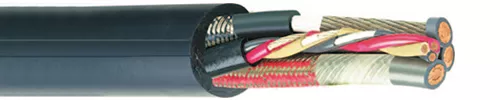

Type SHD-PCG CPE/TPU Mining Cable

19

  • Voltage: 2kV, 5kV
  • Core: 3 Core
  • Conductor: Flexible tinned copper
  • Insulation: EPR (90°C)
  • Insulation Shielding: Tinned copper and color coded nylon braid
  • Ground Conductor: Flexible tinned copper located in the center of the cable
  • Control Ground Conductor: Tinned Copper Conductor/EPR Insulation
  • Jacket: CPE (Blue, Green, Yellow, Orange, Red, Black)

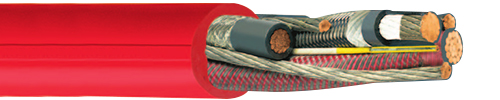

Type SHD-CGC CPE/TPU Mining Cable

02

  • Voltage: 2kV, 5kV
  • Core: 3 Core
  • Conductor: Flexible tinned copper
  • Insulation: EPR (90°C)
  • Insulation Shielding: Tinned copper and color coded nylon braid
  • Ground Wires: Flexible tinned copper
  • Control Check Conductor: Tinned copper with yellow insulation located in the central of the cable
  • Separator Tape: Non-conducting
  • Jacket: CPE (Blue, Green, Yellow, Orange, Red, Black)

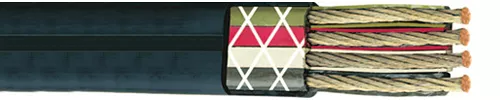

Type W Flat EPR Mining Cable

09

  • Voltage: 600/2000V
  • Type: Round or Flat
  • Core: 2 Core, 3 Core, 4 Core
  • Conductor: Flexible tinned copper
  • Insulation: EPR (90°C)
  • Reinforcement: Synthetic yarn over assembly
  • Jacket: Mold-cured thermoset
  • Jacket Color: Black
  • Standard: IEC, BS, DIN, VDE, ASTM, CSA or Customized

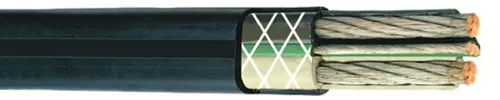

Type G Flat CPE Mining Cable

Type-G-2C-Flat

  • Voltage: 2kV, 5kV
  • Core: 3 Core
  • Conductor: Flexible tinned copper
  • Insulation: EPR (90°C)
  • Insulation Shielding: Tinned copper and color-coded nylon braid
  • Ground Conductor: Flexible tinned copper located in the center of cable
  • Control Ground Conductor: Tinned Copper Conductor/EPR Insulation
  • Jacket: CPE (Blue, Green, Yellow, Orange, Red, Black)

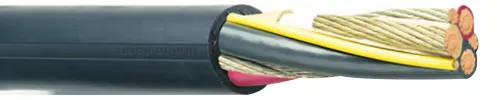

Type G-GC CPE/TPU Mining Cable

15

  • Voltage: 2000V
  • Type: Flat or Round
  • Core: 3 Core
  • Conductor: Flexible tinned copper
  • Insulation: EPR (90°C)
  • Ground Wire: flexible tinned copper
  • Tape: Non-conducting
  • Jacket: CPE
  • Jacket Color: Black,blue, green, orange, red, yellow
  • Standard: IEC, BS, DIN, VDE, ASTM, CSA or Customizede

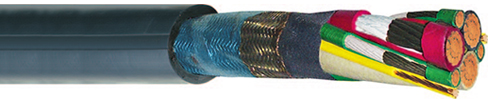

Type VFD EPR/CPE Mining Cable

Type-VFD-3-core

  • Voltage: 2000V
  • Core: 3C conductor + 3C ground wire
  • Conductor: Tinned copper
  • Ground Conductor: flexible tinned copper
  • Power Conductor: Extra flexible tinned rope stranded
  • Ground Check Wire Optional: Flexible tinned copper with yellow insulation.
  • Insulation: EPR (90°C)
  • Shield: Overall tinned copper braid plus aluminum/polyester tape providing 100% coverage
  • Jacket: CPE (Black)

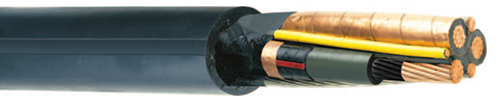

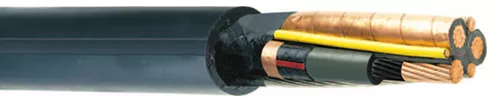

Type MP EP/CPE Mining Cable

25

  • Voltage: 5/15kV
  • Conductor: Copper
  • Core: 3Core
  • Strand Shield: Semi-conducting layer
  • Insulation: EPR
  • Insulation Shield: Semi-conducting layer under copper tape
  • Ground Wires: Tinned copper
  • Ground Check Conductor: 8 AWG 7-wire copper with yellow polypropylene insulation
  • Jacket: CPE

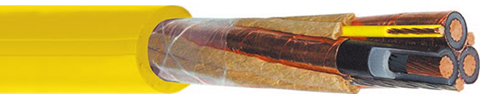

Type MP-GC XLPE ERP Mining Cable

Type-MP-GC-3C-XLPE-Insulation-PVC-Sheath

  • Voltage: 25/35kV
  • Conductor: Copper
  • Core: 3Core
  • Strand Shield: Semi-conducting layer
  • Insulation: XLPE, EPR
  • Insulation Shield: Semi-conducting layer under copper tape
  • Ground Wires: Tinned copper
  • Ground Check Conductor: 8 AWG 7-wire copper with yellow polypropylene insulation
  • Jacket: PVC

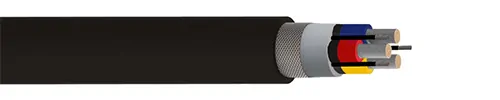

TYPE 241 1.1kV ~ 11kV Rubber Screened Mining Cable

Type-241-Flexible-Rubber-Screened-Mining-Cable

  • Voltage: Type 241.1 – 1.1kV ; Type 241.3 – 3.3kV ; Type 241.6 – 6.6kV ; Type 241.11 – 11kV
  • Conductor: Tinned annealed copper wires
  • Core: 3Core
  • Separator/Screen: 1.1kV: Paper separator; For other nominal voltages semi-conductive thermosetting compound over conductors
  • Insulation: EPR type R-EP-90
  • Insulation Screen: Semi-conductive thermosetting compound
  • Cable Assembly: Three screened power and three earth cores laid up with right hand direction on cradle separator with central pilot core
  • Inner Sheath: Semi-conductive thermosetting compound
  • Earth Covering: Semi-conductive thermosetting compound
  • Cradle Separator: Semi-conductive thermosetting compound
  • Reinforcing Braid : Polyamide Yarns
  • Sheath: CSP (Chlorosulfonated polyethylene) thermosetting compound; HD-90 – extra heavy duty, oil resistance and flame retardant

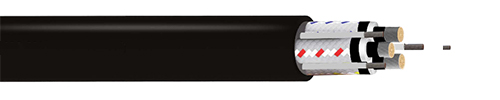

TYPE 240 1.1kV ~ 11kV Screened Mining Cable

Type-240-Flexible-Copper-Screened-Mining-Cable-With-Three-Pilots

  • Voltage: Type 240.1 – 1.1kV ; Type 240.3 – 3.3kV ; Type 240.6 – 6.6kV ; Type 240.11 – 11kV
  • Conductor: Tinned annealed copper wires
  • Separator/Screen: 1.1kV: Paper separator; Other voltages: semi-conductive thermosetting compound
  • Insulation: EPR type R-EP-90
  • Insulation Screen: 1.1kV: Synthetic tape; From 3.3kV: Semi-conductive thermosetting compound
  • Screen: Tinned copper/polyamide braid
  • Interstitial Pilots: EPR covered flexible stranded tinned Copper
  • Cable Assembly: 3x screened power cores with right hand lay up on cradle separator with 3x pilot cores
  • Cradle Separator: Semi-conductive thermosetting compound
  • Sheath: HD-PCP (Heavy Duty Polychloroprene) – extra heavy duty, oil resistance and flame retardant.
  • Optional open polyamide braid between layer of sheathing
  • Sheath Colour: Black

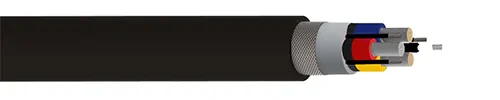

TYPE 245 1.1kV ~ 6.6kV Flexible Rubber Mining Cable

Type-245-Flexible-Rubber-Mining-Cable

  • Voltage: Type 245.1 – 1.1kV ; Type 245.3 – 3.3kV ; Type 245.6 – 6.6kV
  • Conductor: Flexible stranded tinned annealed copper
  • Conductor Screen: Semi-conductive compound for cables having a voltage rating of 3.3kV and above
  • Insulation: EPR (Ethylene Propylene Rubber)
  • Insulation Screen: Semi-conductive elastomer
  • Cradle Separator: Semiconductive PCP (Polychloroprene)
  • Central Extensible Pilot: EPR covered flexible stranded tinned copper
  • Overall Core Screen: Semiconductive PCP (Polychloroprene) filling and covering
  • Interstitial Earth Conductor: Semi-conductive PCP (Polychloroprene) covered flexible stranded tinned copper
  • Reinforcing Braid: Open-weave yarns
  • Sheath: Heavy duty PCP (Polychloroprene). (CPE/CSP sheath can be offered upon request)
  • Sheath Colour: Black
  • Type SHD-GC Cable Parameter
  • Type G-GC Cable Parameter
  • Type W Cable Parmater
  • Type MP-GC Cable Parameter
Power Conductors Grounding Conductors Nominal Outside Dimensions in. Approx. Weight lbs. per 1,000 ft. Ampacity 30°C Ambient Temp Maximum Tensile Load (lbs.)
Size AWG Power Conductor Diameter (in.) Size AWG Ground Conductor Diameter (in.)
2 0.321 6 0.204 2.42 3500 180 466
1 0.366 5 0.238 2.52 4080 205 587
1/0 0.413 4 0.259 2.64 4610 236 741
2/0 0.468 3 0.291 2.73 4890 270 934
3/0 0.518 2 0.321 2.9 5589 311 1178
4/0 0.584 1 0.366 3.05 6820 357 1178
Power Conductors Grounding Conductors Nominal Outside Dimensions in. Approx. Weight lbs. per 1,000 ft. Ampacity * 40°C Ambient Temp
Size AWG No. of Wires per Conductor Insulation Thickness mils Size AWG No. of Wires per Conductor
8 133 60 10 49 0.97 600 59
6 259 60 10 49 1.05 750 79
4 259 60 8 133 1.19 1070 104
2 259 60 7 133 1.34 1480 138
1 259 80 6 133 1.51 1890 161
1/0 266 80 5 133 1.65 2340 186
2/0 323 80 4 259 1.75 2750 215
3/0 418 80 2 259 1.89 3377 249
4/0 532 80 2 259 2.04 3980 287
250 627 95 2 259 2.39 5000 320
350 888 95 1/0 266 2.68 6750 394
500 1221 95 2/0 323 3.03 8900 487
Power Conductors Nominal Outside Diameter in. Approx. Weight lbs. per 1,000 ft. Ampacity 90°C Conductor 30°C Ambient Temp
Size AWG Insulation Thickness mils
8 60 0.99 670 59
6 60 1.1 890 79
4 60 1.27 1250 102
2 60 1.48 1800 134
1 80 1.68 2270 157
1/0 80 1.79 2680 181
2/0 80 1.93 3200 211
3/0 80 2.07 3627 243
4/0 80 2.26 4650 280
Size AWG Power Conductors Grounding Conductors Jacket Thickness mm Ground Check Conductor Size AWG2 Nominal Outside Dimensions mm Approx. Weight kg’s per km
Minimum No. of Wires per Conductor Insulation Thickness mm Size AWG Minimum No. of Wires per Conductor
1/0 18 8.76 4 7 4.3 8 73.4 7452
2/0 18 8.76 3 7 4.3 8 76.3 8256
3/0 18 8.76 2 7 4.3 8 78.9 9223
4/0 18 8.76 1 19 4.3 8 81.9 10312
250 35 8.76 1/0 19 4.3 8 84.7 11289
350 35 8.76 2/0 19 5.1 8 91.8 14173
500 35 8.76 3/0 19 5.1 8 98.9 17818

Mining Cable Aplication Case

1-min

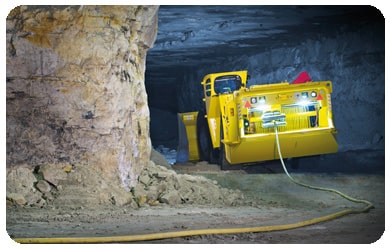

Trailing System Operation

2-min

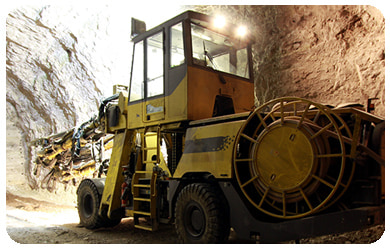

Shearer Operating System

3-min

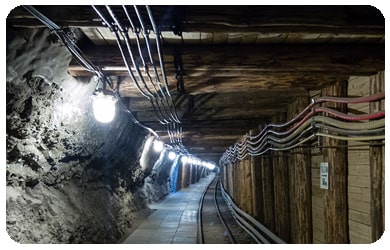

Mining Tunnel System

4-min

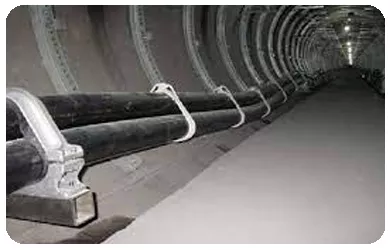

Underground Mining Cable Install
