7/32” (5.69 mm) 5/16″ (8.18 mm) 9/32” (7.32 mm) monoconductor armoured cable

loging-cable-4-scaled

Huadong Cable Group provides quality and reliability logging cable with proven for applications seismic instrumentation and custom cables for harsh environments to depths of 6,000 meters. Huadong Cable wireline products used in logging, oil well, Gas, perforating, and downhole good applications worldwide.

7325.69-mm-Monoconductor

7/32” (5.69 mm) Monoconductor

Cable Diameter: 0.224” +0.005” – 0.002” (5.69mm +0.13mm -0.05mm)
Minimum Sheave Diameter: 14” (36cm)
Cable Stretch Coefficient: 2.2 ft/kft/Klbs (2.5 m/Km/5KN)
Maximum Conductor Voltage: 1,200 VDC
Conductor AWG Rating: 16
Minimum Insulation Resistance: 1,500 MegaΩ/Kft @ 1000VDC (457 Mega Ω/Km @ 1000VDC)
Armor Electrical Resistance: 4.3 Ω/Kft (14.1 Ω/Km)

5168.18-mm-Monoconductor-1N32-EEHS

5/16″ (8.18 mm) Monoconductor

Cable Diameter: 0.322″ +0.005″ – 0.002″ (8.18 mm +0.13 mm -0.05mm)
Minimum Sheave Diameter: 18″ (46 cm)
Cable Stretch Coefficient: 1.2 ft/Kft/Klbs (1.35 m/Km/5KN)
Maximum Conductor Voltage: 1,500 VDC
Conductor AWG Rating: 15
Minimum Insulation Resistance: 1,500 MegaΩ/Kft @ 1,000 VDC (457 MegaΩ/Km @ 1000VDC)
Armor Electrical Resistance: 2.1 Ω/Kft (6.9 Ω/Km)

932-7.32-mm-Monoconductor-1N29-EHS

9/32” (7.32 mm) Monoconductor

Cable Diameter: 0.288” +0.005” – 0.002” (7.32mm + 0.13mm -0.05mm)
Minimum Sheave Diameter: 16” (41 cm)
Cable Stretch Coefficient: 1.55 ft/Kft/Klbs (1.74 m/Km/5KN)
Maximum Conductor Voltage: 1,500 VDC
Conductor AWG Rating: 15
Minimum Insulation Resistance: 1,500 MegaΩ/Kft @ 1000VDC (457 MegaΩ/Km @ 1000VDC)
Armor Electrical Resistance: 2.8 Ω/Kft (9.2 Ω/Km)

002

7/32” (8.18 mm) Monoconductor parameter data

Core Description						Cable Weight
Temp Rating	Plastic Type	Insulation Thickness	Copper Construction	Res Typical	O.D. Each	In Air	In H2O
°F		in	in	Ω/Kft	in	lbs/Kft
°C		mm	mm	Ω/Km	mm	Kg/Km
300*	Poly	0.042	19×0.0142	2.8	0.155	187	155
149*	Poly	1.067	19×0.361	9.2	3.937	278	230
500*	ETFE	0.0175	19×0.0142	2.8	0.155	194	160
260*	ETFE	0.445	19×0.361	9.2	3.048	288	238
500*	FEP	0.0245	19×0.0142	2.8	0.12	194	160
260*	FEP	0.622	19×0.361	9.2	3.048	288	238

Get quote by email: trade@huadongcablegroup.com

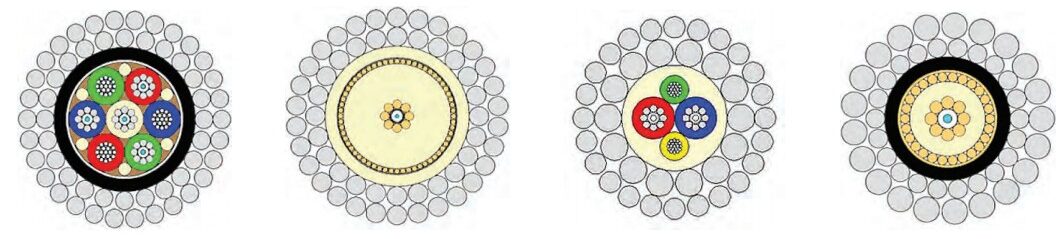

fiber-tow-cable

7/32” (5.69 mm) Monoconductor parameter data

Core Description							Cable Weight
Temp Rating	Plastic Type	Insulation Thickness	Copper Construction	Res Typical	Cap Typical	O.D. Each	In Air	In H2O
°F		in	in	Ω/Kft	pf/ft	in	lbs/Kft
°C		mm	mm	Ω/Km	pf/m	mm	Kg/Km
300*	Poly	0.0245	19×0.0119	4.1	60	0.108	91	75
149*	Poly	0.622	19×0.302	13.5	197	2.743	136	112
420*	ETFE	0.0115	19×0.0119	4.1	61	0.108	92	76
216*	ETFE	0.292	19×0.302	13.5	200	2.743	137	114
420*	TPX	0.013	19×0.0119	41	61	0.085	92	76
216*	TPX	0.33	19×0.302	13.5	200	2.159	137	114
500*	ETFE	0.0115	19×0.0119	4.1	58	0.108	95	78
260*	ETFE	0.292	19×0.302	13.5	190	2.743	140	116
500*	FEP	0.013	19×0.0119	4.1	58	0.085	95	78
260*	FEP	0.33	19×0.302	13.5	190	2.159	140	116

Get quote by email: trade@huadongcablegroup.com

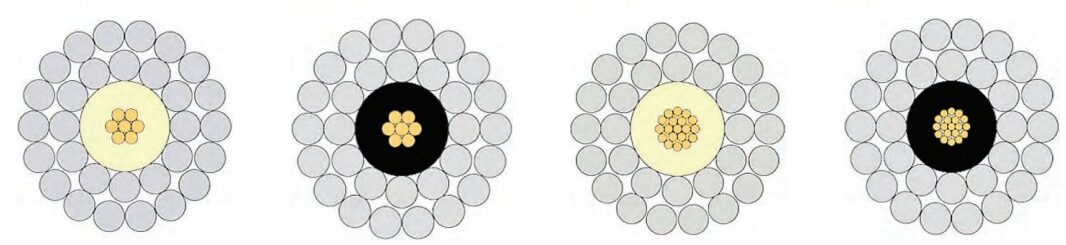

armoured-logging-cable
