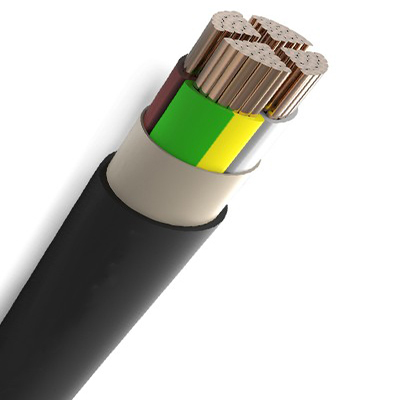

Available as N2XY-J with an earthing conductor or as N2XY-O without an earthing conductor.
APPLICATION
These power and fixed wiring cables are used for electricity supply in low voltage installation systems. They are well adapted to underground use in industrial applications with an additional mechanical protection. These cables can be fixed on cable trays, within conduits or fixed to walls.
- Voltage Rating Uo/U: 0.6/1kV
- Temperature Rating: During installation -5°C to +50ºC; Fixed Installation: -20°C to +90°C
- Minimum Bending Radius: Fixed: 12 x overall diameter
- Conductor:
- RE: Class 1 solid copper conductor
- RM: Class 2 stranded circular or circular compacted
- SM: Class 2 stranded sectoral shaped
- Insulation: XLPE
- Bedding: PVC
- Sheath: PVC
- Core Identification
- 3 core: Green/Yellow Blue Brown
- 4 core: Green/Yellow Brown Black Grey
- 5 core: Green/Yellow Blue Brown Black Grey
- 7 cores and above: Black cores and White numbers
- Sheath Colour: Black
- STANDARDS
- IEC 60502-1, VDE 0276-603, IEC/EN 60228
- Flame retardant according to IEC/EN 60332-1-2
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA | CONDUCTOR TYPE | NOMINAL WEIGHT |
| mm2 | kg/km | ||
| 1 | 16 | RM | 216 |
| 1 | 25 | RM | 318 |
| 1 | 35 | RM | 415 |
| 1 | 50 | RM | 543 |
| 1 | 70 | RM | 746 |
| 1 | 95 | RM | 1000 |
| 1 | 120 | RM | 1239 |
| 1 | 150 | RM | 1515 |
| 1 | 185 | RM | 1872 |
| 1 | 240 | RM | 2403 |
| 1 | 300 | RM | 2974 |
| 1 | 400 | RM | 3834 |
| 1 | 500 | RM | 4892 |
| 1 | 630 | RM | 6544 |
| 2 | 1.5 | RE | 145 |
| 2 | 2.5 | RE | 179 |
| 2 | 4 | RE | 226 |
| 2 | 6 | RE | 284 |
| 2 | 6 | RM | 295 |
| 2 | 10 | RM | 416 |
| 2 | 16 | RM | 581 |
| 2 | 25 | RM | 859 |
| 2 | 35 | RM | 1109 |
| 3 | 1.5 | RE | 162 |
| 3 | 2.5 | RE | 205 |
| 3 | 4 | RE | 265 |
| 3 | 6 | RE | 338 |
| 3 | 10 | RM | 505 |
| 3 | 16 | RM | 719 |
| 3 | 25 | RM | 1072 |
| 3 | 35 | RM | 1403 |
| 3 | 50 | SM | 1581 |
| 3 | 25/16 | SM | 1223 |
| 3 | 35/16 | SM | 1557 |
| 3 | 50/25 | SM | 1863 |
| 4 | 1.5 | RE | 188 |
| 4 | 2.5 | RE | 240 |
| 4 | 4 | RE | 314 |
| 4 | 6 | RE | 408 |
| 4 | 10 | RE | 615 |
| 4 | 16 | RE | 885 |
| 4 | 25 | RE | 1330 |
| 4 | 35 | RE | 1758 |
| 4 | 185 | SM | 7591 |
| 4 | 240 | SM | 9875 |
| 4 | 300 | SM | 15124 |
| 5 | 1.5 | RE | 218 |
| 5 | 2.5 | RE | 281 |
| 5 | 4 | RE | 372 |
| 5 | 6 | RE | 486 |
| 5 | 10 | RM | 740 |
| 5 | 16 | RM | 1071 |
| 5 | 25 | RM | 1619 |
| 5 | 35 | RM | 2138 |
| 5 | 50 | RM | 2578 |
| 5 | 70 | RM | 3616 |
| 5 | 95 | RM | 4933 |
| 5 | 120 | RM | 6153 |
| 5 | 150 | RM | 7587 |
| 5 | 185 | RM | 9454 |
| 5 | 240 | RM | 12242 |
| 7 | 1.5 | RE | 260 |
| 7 | 2.5 | RE | 342 |
| 7 | 4 | RE | 461 |
| 10 | 1.5 | RE | 357 |
| 10 | 2.5 | RE | 475 |
| 10 | 4 | RE | 646 |
| 12 | 1.5 | RE | 394 |
| 12 | 2.5 | RE | 528 |
| 14 | 1.5 | RE | 436 |
| 14 | 2.5 | RE | 592 |
| 16 | 4 | RM | 971 |
| 19 | 1.5 | RE | 543 |
| 19 | 2.5 | RE | 746 |
| 24 | 1.5 | RE | 675 |
| 24 | 2.5 | RE | 931 |
| 30 | 1.5 | RE | 788 |
| 30 | 2.5 | RM | 1164 |
| 40 | 1.5 | RE | 995 |
| 40 | 2.5 | RE | 1416 |
