Application
The addition of SWA armouring allows for these cables to be direct buried in the ground without additional protection, protecting them from mechanical stresses and the risk of damage from external forces. The black outer sheath offers UV protection in keeping with their use outdoors.
| Construct | N2XRY/NA2XRY Cable | N2XRH/NA2XRH Cable | N2XBY/NA2XBY Cable |
| Voltage | 0.6/1kV | ||
| Conductor | Class 2 Stranded Copper/Aluminum | ||
| Insulation | XLPE (Cross-Linked Polyethylene) | ||
| Bedding | PVC (Polyvinyl Chloride) | LSZH (Low Smoke Zero Halogen) | |
| Armoured | SWA (Galvanised Steel Wire) | STA ( Steel Tape Wire) | |
| Our Sheath | PVC (Polyvinyl Chloride) | LSZH (Low Smoke Zero Halogen) | PVC (Polyvinyl Chloride) |
The NA2XRH and NA2XRY are aluminium power cables with a voltage rating of 600/1000V designed to withstand harsh operating conditions and mechanical stresses. These cables have a steel wire armour providing mechanical protection and making them suitable for underground installations. Their outersheath is UV stable and the cables are suitable for exposure to direct sunlight.

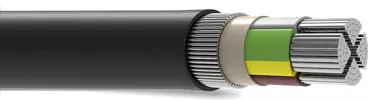

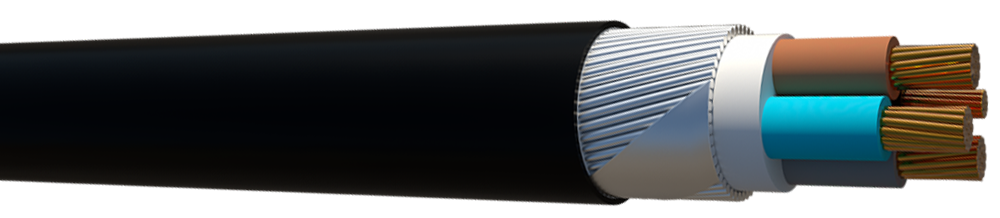

Aluminum or Copper N2XRY/NA2XRY XLPE PVC SWA Armoured Cable
- Voltage: 0.6/1kV
- Core: 1~5 Cores
- Conductor: Copper or Aluminum
- Section-area: 10~300mm2
- Bedding: PVC
- Insulation: XLPE
- Armoured: SWA
- Outer Sheath: PVC
Aluminum or Copper N2XRH/NA2XRH XLPE PVC SWA Armoured LSZH Cable
- Voltage: 0.6/1kV
- Core: 1~5 Cores
- Conductor: Copper or Aluminum
- Section-area: 10~300mm2
- Bedding: PVC
- Insulation: LSZH (Low Smoke Zero Halogen)
- Armoured: SWA
- Outer Sheath: LSZH (Low Smoke Zero Halogen)

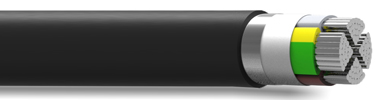

Aluminum or Copper N2XBY/NA2XBY XLPE PVC STA Armoured Cable
- Voltage: 0.6/1kV
- Core: 1~5 Cores
- Conductor: Copper or Aluminum
- Section-area: 10~300mm2
- Bedding: PVC
- Insulation: XLPE
- Armoured: STA
- Outer Sheath: PVC
- 0.6/1kV Aluminum NA2XBY Cable Parameter
- 0.6/1kV Aluminum NA2XRY Cable Parameter
| 3 Core NA2XBY | |||||||
| NOMINAL CROSS-SECTION | CONDUCTOR SHAPE | MAX. RESISTANCE AT 20°C | CURRENT CAPACITY IN AIR | CURRENT CAPACITY | OUTER DIAM. (APPROX.) | METAL WEIGHT | CABLE WEIGHT (APPROX.) |
| mm² | Ω/km | A | A | mm | kg/km | kg/km | |
| 3×10 | RE/RM | 3,08 | – | – | 18,0 | 87 | 511 |
| 3×16 | RE/RM | 1,910 | – | – | 20,0 | 139,2 | 647 |
| 3×25 | RM | 1,200 | 97 | 75 | 23,2 | 217,5 | 874 |
| 3×35 | RM | 0,868 | 120 | 90 | 25,6 | 304,5 | 758 |
| 3×50 | SM | 0,641 | 1446 | 106 | 30,2 | 435,0 | 1194 |
| 3×70 | SM | 0,443 | 187 | 130 | 34,5 | 609,0 | 1502 |
| 3×95 | SM | 0,320 | 227 | 154 | 38,3 | 826,5 | 1825 |
| 3×120 | SM | 0,253 | 263 | 174 | 42,0 | 1044,0 | 2225 |
| 3×150 | SM | 0,206 | 304 | 197 | 46,3 | 1305,0 | 2640 |
| 3×185 | SM | 0,164 | 347 | 220 | 50,6 | 1609,5 | 3114 |
| 3×240 | SM | 0,125 | 409 | 253 | 56,7 | 2088,0 | 3804 |
| 3×300 | SM | 0,100 | 471 | 286 | 62,3 | 2610,0 | 4587 |
| 4 Core NA2XBY | |||||||
| 4×10 | RE/RM | 3,080 | – | – | 19,3 | 116,0 | 574 |
| 4×16 | RE/RM | 1,910 | – | – | 21,5 | 185,6 | 734 |
| 4×25 | RE/RM | 1,200 | 97 | 75 | 25,1 | 290,0 | 1001 |
| 4×35 | SM | 0,868 | 120 | 90 | 27,8 | 406,0 | 909 |
| 4×50 | SM | 0,641 | 1446 | 106 | 32,8 | 580,0 | 1401 |
| 4×70 | SM | 0,443 | 187 | 130 | 37,5 | 812,0 | 1786 |
| 4×95 | SM | 0,320 | 227 | 154 | 41,7 | 1102,0 | 2275 |
| 4×120 | SM | 0,253 | 263 | 174 | 45,8 | 1392,0 | 2687 |
| 4×150 | SM | 0,206 | 304 | 197 | 51,4 | 1740,0 | 3270 |
| 4×185 | SM | 0,164 | 347 | 220 | 56,2 | 2146,0 | 3857 |
| 4×240 | SM | 0,125 | 409 | 253 | 62,6 | 2784,0 | 4762 |
| 3+1 Core NA2XBY | |||||||
| 3×70+35 | SM/SM | 0,443/0,868 | 191 | 196 | 34,0 | 710,5 | 1379 |
| 3×95+50 | SM/SM | 0,320/0,641 | 234 | 234 | 39,9 | 971,5 | 2023 |
| 3×120+70 | SM/SM | 0,253/0,443 | 273 | 268 | 43,9 | 1247,0 | 2416 |
| 3×150+70 | SM/SM | 0,206/0,443 | 311 | 300 | 48,4 | 1508,0 | 2980 |
| 3×185+95 | SM/SM | 0,164/0,320 | 360 | 342 | 53,0 | 1885,0 | 3526 |
| 3×240+120 | SM/SM | 0,125/0,253 | 427 | 398 | 58,9 | 2436,0 | 4328 |
| 3 Core NA2XRY | |||||||
| NOMINAL CROSS-SECTION | CONDUCTOR SHAPE | MAX. RESISTANCE AT 20°C | CURRENT CAPACITY IN AIR | CURRENT CAPACITY | OUTER DIAM. (APPROX.) | METAL WEIGHT | CABLE WEIGHT (APPROX.) |
| mm² | Ω/km | A | A | mm | kg/km | kg/km | |
| 3×35 | SM | 0,868 | 126 | 135 | 28,1 | 304,5 | 1291,5 |
| 3×50 | SM | 0,641 | 149 | 158 | 31,5 | 435,6 | 1559,7 |
| 3×70 | SM | 0,443 | 191 | 196 | 35,2 | 609,0 | 1930,2 |
| 3×95 | SM | 0,320 | 234 | 234 | 40,2 | 826,5 | 2601,2 |
| 3×120 | SM | 0,253 | 273 | 268 | 43,9 | 1044,0 | 3043,9 |
| 3×150 | SM | 0,206 | 311 | 300 | 49,6 | 1305,0 | 3980,6 |
| 3×185 | SM | 0,164 | 360 | 342 | 54,0 | 1609,5 | 4634,7 |
| 3×240 | SM | 0,125 | 427 | 398 | 59,9 | 2088,0 | 5547,4 |
| 3×300 | SM | 0,100 | 507 | 457 | 65,5 | 2610,0 | 6493,5 |
| 4 Core NA2XRY | |||||||
| 4×35 | SM | 0,868 | 126 | 135 | 30,4 | 406,0 | 1513,8 |
| 4×50 | SM | 0,641 | 149 | 158 | 34,3 | 580,0 | 1873,2 |
| 4×70 | SM | 0,443 | 191 | 196 | 39,7 | 812,0 | 2595,8 |
| 4×95 | SM | 0,320 | 234 | 234 | 43,9 | 1102,0 | 3138,6 |
| 4×120 | SM | 0,253 | 273 | 268 | 49,6 | 1392,0 | 4142,7 |
| 4×150 | SM | 0,206 | 311 | 300 | 54,2 | 1740,0 | 4821,5 |
| 4×185 | SM | 0,164 | 360 | 342 | 59,1 | 2146,0 | 5613,9 |
| 4×240 | SM | 0,125 | 427 | 398 | 66,2 | 2784,0 | 6811,7 |
| 4×300 | SM | 0,100 | 507 | 457 | 71,9 | 3480,0 | 7976,2 |
| 3+1 Core NA2XRY | |||||||
| 3×50+35 | SM/SM | 0,641/0,868 | 149 | 158 | 32,6 | 536,5 | 1824,2 |
| 3×70+35 | SM/SM | 0,443/0,868 | 191 | 196 | 37,3 | 710,5 | 2420,7 |
| 3×95+50 | SM/SM | 0,320/0,641 | 234 | 234 | 41,8 | 971,5 | 2950,0 |
| 3×95+70 | SM/SM | 0,320/0,443 | 234 | 234 | 41,8 | 1029,5 | 3040,3 |
| 3×120+50 | SM/SM | 0,253/0,641 | 273 | 268 | 46,0 | 1189,0 | 3412,5 |
| 3×120+70 | SM/SM | 0,253/0,443 | 273 | 268 | 46,0 | 1247,0 | 3477,9 |
| 3×120+95 | SM/SM | 0,253/0,320 | 273 | 268 | 46,1 | 1319,5 | 3558,6 |
| 3×150+70 | SM/SM | 0,206/0,443 | 311 | 300 | 51,0 | 1508,0 | 4533,5 |
| 3×185+95 | SM/SM | 0,164/0,320 | 360 | 342 | 55,7 | 1885,0 | 5246,6 |
| 3×240+120 | SM/SM | 0,125/0,253 | 427 | 398 | 61,8 | 2436,0 | 6345,7 |
| 3×300+150 | SM/SM | 0,100/0,206 | 507 | 457 | 67,2 | 3045,0 | 7633,0 |
