Medium Voltage Single Core Aluminium NA2XS2Y / NA2XS(F)2Y / NA2XS(FL)2Y Cables

The robust and UV-resistant oversheath makes this cable ideally suited for fixed outdoor installations where there may be an element of mechanical stress and sunlight exposure. Its properties allow the laying of this cable in winter conditions as cold as -20oC.

NA2XS2Y 6/10 (12)kV, 12/20 (24)kV, 18/30 (36)kV Cable

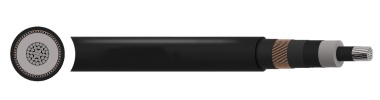

NA2XS2Y-from-Huadong-Cable-Group

  • Application: for distribution networks and generation units, suitable for external installation including in direct in ground and in buried cable ducts. UV Resistant.
  • Conductor: Class 2 Stranded Aluminium
  • Conductor Screen: Semi-conductive material
  • Insulation: XLPE
  • Insulation Screen: Semi-conductive material (bonded)
  • Screen: Copper wires and copper tape
  • Outer Sheath: MDPE
  • Sheath Colour: Red Black

NA2XS2Y XLPE MDPE & HDPE 8.7/15 (17.5) kV Cable

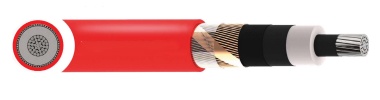

NA2XS2Y-XLPE-MDPE-from-Huadong-Cable-Group

  • Application: Medium Voltage Aluminium MDPE & HDPE power distribution cable with particular application in wind energy installations.
  • Conductor: Class 2 stranded compacted aluminium
  • Conductor Screen: Semi-conductive extruded XLPE
  • Insulation: XLPE
  • Insulation Screen: Semi-conductive extruded XLPE
  • Wrapping: Non swelling semi conductive tape
  • Metallic Screen: Copper Wires and Tape
  • Wrapping: Polyester tape
  • Sheath: MDPE & HDPE
  • Sheath Colour: Red

NA2XS(F)2Y 6/10 (12)kV, 12/20 (24)kV, 18/30 (36)kV Cable

NA2XS2Y-from-Huadong-Cable-Group

  • Application: cables with additional waterblocking properties for distribution networks and generation units, suitable for external installation including in direct in ground and in buried cable ducts. UV Resistant.
  • Conductor: Class 2 Stranded Aluminium
  • Conductor Screen: Semi-conductive material
  • Insulation: XLPE
  • Insulation Screen: Semi-conductive material (bonded)
  • Longitudinal Waterblocking: Semi-conductive swellable tape
  • Screen: Copper wires and copper tape
  • Longitudinal Waterblocking: Swellable Tapes
  • Outer Sheath: MDPE (Medium Density Polyethylene)
  • Sheath Colour: Red Black

NA2XS(F)2Y XLPE MDPE & HDPE 8.7/15 (17.5) kV Cable

NA2XS2Y-from-Huadong-Cable-Group

  • Application: Medium Voltage Aluminium MDPE & HDPE power distribution cable with particular application in wind energy installations. Longitudinally sealed cables for aid protection against water ingress.
  • Conductor: Class 2 stranded Aluminium
  • Conductor Screen: Semi-conductive extruded XLPE
  • Insulation: XLPE
  • Insulation Screen: Semi-conductive extruded XLPE
  • Longitudinal Waterblock: Semi-conductive water swelling tape
  • Metallic Screen: Copper Wires and Tape
  • Longitudinal Waterblock: Non-conductive water swelling tape
  • Sheath: MDPE & HDPE
  • Sheath Colour: Black

NA2XS(FL)2Y 6/10 (12)kV, 12/20 (24)kV, 18/30 (36)kV Cable

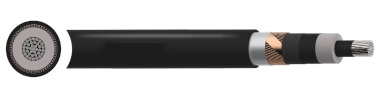

NA2XSFL2Y-from-Huadong-Cable-Group

  • Application: Medium voltage power cables with additional waterblocking properties for distribution networks and generation units, suitable for external installation including in direct in ground and in buried cable ducts. UV Resistant
  • Conductor: Class 2 Stranded Aluminium
  • Conductor Screen: Semi-conductive material
  • Insulation: XLPE
  • Insulation Screen: Semi-conductive material (bonded)
  • Longitudinal Waterblocking: Semi-conductive swellable tape
  • Screen: Copper wires and copper tape
  • Longitudinal Waterblocking: Swellable Tapes
  • Radial Waterblocking: Al/PET (Aluminium/Polyester) Tape tightly bonded to sheath
  • Outer Sheath: MDPE
  • Sheath Colour: Red Black

NA2XS(FL)2Y XLPE MDPE & HDPE 8.7/15 (17.5)kV Cable

NA2XSFL2Y-from-Huadong-Cable-Group

  • Application: Medium Voltage Aluminium MDPE & HDPE power distribution cable with particular application in wind energy installations. Longitudinally and radially sealed cables for aid protection against water ingress.
  • Conductor: Class 2 stranded Aluminium
  • Conductor Screen: Semi-conductive extruded XLPE
  • Insulation: XLPE
  • Insulation Screen: Semi-conductive extruded XLPE
  • Longitudinal Waterblock: Semi-conductive water swelling tape
  • Metallic Screen: Copper Wires and Tape
  • Longitudinal Waterblock: Non-conductive water swelling tape
  • Radial Waterblock: Al/PET (Aluminium/Polyester) Tape tightly bonded to sheath
  • Sheath: MDPE & HDPE
  • Sheath Colour: Black

NA2XS2Y 6/10 (12)kV Cable Datasheet

NO. OF CORES NOMINAL CROSS SECTIONAL AREA (mm²) NOMINAL CONDUCTOR DIAMETER NUMBER WIRES CONDUCTOR NOM. THICKNESS SEMI-CON. LAYER NOMINAL INSULATION THICKNESS MINIMUM INSULATION THICKNESS NOMINAL DIAMETER OVER INSULATION
Conductor Screen mm mm mm mm mm mm mm
1 50 16 8.2 7 x 2.90 0.5 0.4 3.4 2.96 16.4
1 70 16 9.7 19 x 2.18 0.5 0.4 3.4 2.96 17.9
1 95 16 11.4 19 x 2.55 0.5 0.4 3.4 2.96 19.6
1 120 16 12.65 19 x 2.90 0.5 0.4 3.4 2.96 20.9
1 150 25 14.4 19 x 3.16 0.5 0.4 3.4 2.96 22.6
1 185 25 15.75 37 x 2.55 0.5 0.4 3.4 2.96 24.4
1 240 25 18.2 37 x 2.90 0.5 0.4 3.4 2.96 26.9
1 300 25 20.5 61 x 2.55 0.5 0.4 3.4 2.96 29.2
1 400 35 23 61 x 2.90 0.5 0.4 3.4 2.96 31.7
1 500 35 26 61 x 3.20 0.5 0.4 3.4 2.96 34.7
1 630 35 30.2 61 x 3.65 0.5 0.4 3.4 2.96 38.9

NA2XS(F)2Y 18/30 (36)kV Cable Datasheet

NO. OF CORES NOMINAL CROSS SECTIONAL AREA (mm²) NOMINAL CONDUCTOR DIAMETER NUMBER WIRES CONDUCTOR NOM. THICKNESS SEMI-CON. LAYER NOMINAL INSULATION THICKNESS MINIMUM INSULATION THICKNESS NOMINAL DIAMETER OVER INSULATION
Conductor Screen mm mm mm mm mm mm mm
1 50 16 8.2 7 x 2.90 0.5 0.4 8 7.1 25.2
1 70 16 9.7 19 x 2.18 0.5 0.4 8 7.1 26.7
1 95 16 11.4 19 x 2.55 0.5 0.4 8 7.1 28.4
1 120 16 12.65 19 x 2.90 0.5 0.4 8 7.1 29.7
1 150 25 14.4 19 x 3.16 0.5 0.4 8 7.1 31.4
1 185 25 15.75 37 x 2.55 0.5 0.4 8 7.1 33.2
1 240 25 18.2 37 x 2.90 0.5 0.4 8 7.1 35.7
1 300 25 20.5 61 x 2.55 0.5 0.4 8 7.1 38
1 400 35 23 61 x 2.90 0.5 0.4 8 7.1 40.5
1 500 35 26 61 x 3.20 0.5 0.4 8 7.1 43.5
1 630 35 30.2 61 x 3.65 0.5 0.4 8 7.1 47.7

NA2XS(FL)2Y 18/30 (36)kV Cable Datasheet

NO. OF CORES NOMINAL CROSS SECTIONAL AREA (mm²) NOMINAL CONDUCTOR DIAMETER NUMBER WIRES CONDUCTOR NOM. THICKNESS SEMI-CON. LAYER NOMINAL INSULATION THICKNESS MINIMUM INSULATION THICKNESS NOMINAL DIAMETER OVER INSULATION
Conductor Screen mm mm mm mm mm mm mm
1 50 16 8.2 7 x 2.90 0.5 0.4 8 7.1 25.2
1 70 16 9.7 19 x 2.18 0.5 0.4 8 7.1 26.7
1 95 16 11.4 19 x 2.55 0.5 0.4 8 7.1 28.4
1 120 16 12.65 19 x 2.90 0.5 0.4 8 7.1 29.7
1 150 25 14.4 19 x 3.16 0.5 0.4 8 7.1 31.4
1 185 25 15.75 37 x 2.55 0.5 0.4 8 7.1 33.2
1 240 25 18.2 37 x 2.90 0.5 0.4 8 7.1 35.7
1 300 25 20.5 61 x 2.55 0.5 0.4 8 7.1 38
1 400 35 23 61 x 2.90 0.5 0.4 8 7.1 40.5
1 500 35 26 61 x 3.20 0.5 0.4 8 7.1 43.5
1 630 35 30.2 61 x 3.65 0.5 0.4 8 7.1 47.7
