Application of NGFLGöu / (N)FLGöu(STN)
NGFLGöu is to be used in dry, humid and wet locations as well as in the open-air as a flexible power and control cable for medium-level mechanical loads. This cable is suitable for connecting movable parts of machine tools, material handling equipment and large machines provided it is exposed to bending in only one plane.
(N)FLGöu (STN) is to be used in dry, humid and wet locations as well as in the open-air as a flexible power and control cable for medium-level mechanical loads. This cable is suitable for connecting movable parts of machine tools, material handling equipment and large machines.

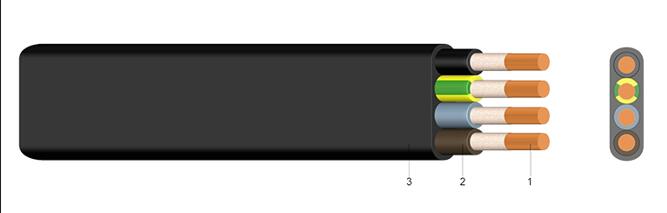

300/500V NGFLGöu Rubber Flat Cable
- Construction:
- 1 ….. fine-stranded bare copper
- 2 ….. core insulation of a rubber compound (3Gl3), laid up parallel
- 3 ….. outer sheath out of a rubber compound (5GM3), black, flame retardant
- According to:
- DIN VDE 0250-809
- DIN EN 60228 class 5 and 6 (construction)
- HD 308 S2 (core identification)
- Technical data:
- Nominal voltage Uo/U: 300 / 500 Volt
- Temperature range: in motion: -35°C till +80°C; fixed: -40°C till +80°C
- Operating temperature short circuit: 200°C
- Short circuit time max.: 5 [sec]
- Flammability standard: EN 60332-1-2

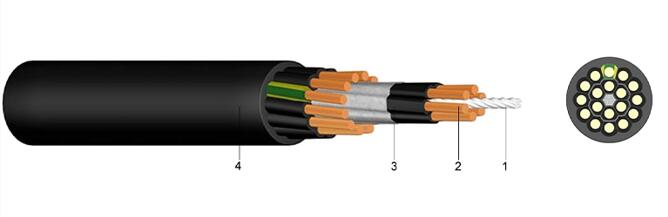

450/750V (N)FLGöu (STN) Rubber Control Cable with Supporting Element
- Construction:
- 1 ….. supporting element out of cord
- 2 ….. fine-stranded bare copper
- 3 ….. core insulation of a rubber compound
- 4 ….. outer sheath of rubber (5GM1), black
- According to:
- adapted to DIN VDE 0250
- DIN EN 60228 class 6 (construction)
- Core identification: 1 core green/yellow, all other cores black with figures
- Technical data:
- Nominal voltage Uo/U [V]: 450 / 750 Volt
- Temperature range in motion: -25°C till +60°C
- Operating temperature short circuit °C: 250
- Short circuit time max. [sec]: 5
- Bending radius one time / fixed x diameter: 4
- Bending radius in motion x diameter: 5
- Flammability standard: EN 60332-1-2
NGFLGöu Parameter List
| Number of cores and nominal cross section | Copper figure | Cond. construction (appr. value) | Overall measures | Weight |
| mm² | kg/km | mm | appr. mm | appr. kg / km |
| 4 x 1,5 | 60 | 84 x 0,16 | 6,2 x 17,5 | 200 |
| 5 x 1,5 | 75 | 84 x 0,16 | 6,2 x 21,5 | 240 |
| 7 x 1,5 | 105 | 84 x 0,16 | 6,2 x 29,0 | 360 |
| 8 x 1,5 | 120 | 84 x 0,16 | 6,2 x 31,5 | 370 |
| 12 x 1,5 | 180 | 84 x 0,16 | 6,5 x 47,0 | 620 |
| 24 x 1,5 | 360 | 84 x 0,16 | 13,5 x 56,0 | 1.01 |
| 4 x 2,5 | 100 | 140 x 0,16 | 7,5 x 21,0 | 280 |
| 5 x 2,5 | 125 | 140 x 0,16 | 7,5 x 27,0 | 400 |
| 7 x 2,5 | 175 | 140 x 0,16 | 7,5x 35,0 | 520 |
| 8 x 2,5 | 200 | 140 x 0,16 | 7,5 x 39,0 | 550 |
| 12 x 2,5 | 300 | 140 x 0,16 | 8,0 x 56,0 | 800 |
| 24 x 2,5 | 600 | 140 x 0,16 | 17,0 x 72,5 | 1.69 |
| 4 x 4 | 160 | 224 x 0,16 | 9,0 x 26,0 | 410 |
| 4 x 6 | 240 | 192 x 0,21 | 9,5 x 29,0 | 600 |
| 4 x 10 | 400 | 320 x 0,21 | 11,0 x 33,0 | 800 |
| 4 x 16 | 640 | 512 x 0,21 | 13,0 x 38,0 | 1.15 |
(N)FLGöu (STN) Parameter List
| Number of cores and nominal cross section | Copper figure | Cond. construction (appr. value) | Overall diameter appr. | Weight appr. |
| mm² | kg/km | mm | mm | kg / km |
| 7 x 1 | 70 | 56 x 0,16 | 14,0 | 220 |
| 12 x 1 | 120 | 56 x 0,16 | 19,0 | 430 |
| 18 x 1 | 180 | 56 x 0,16 | 20,0 | 510 |
| 24 x 1 | 240 | 56 x 0,16 | 23,0 | 670 |
| 36 x 1 | 360 | 56 x 0,16 | 26,0 | 900 |
| 48 x 1 | 480 | 56 x 0,16 | 30,0 | 1220 |
| 4 x 1,5 | 60 | 84 x 0,16 | 11,0 | 180 |
| 5 x 1,5 | 75 | 84 x 0,16 | 12,0 | 200 |
| 7 x 1,5 | 105 | 84 x 0,16 | 15,0 | 280 |
| 9 x 1,5 | 135 | 84 x 0,16 | 18,0 | 400 |
| 12 x 1,5 | 180 | 84 x 0,16 | 20,0 | 540 |
| 18 x 1,5 | 270 | 84 x 0,16 | 21,0 | 600 |
| 24 x 1,5 | 360 | 84 x 0,16 | 25,0 | 840 |
| 4 x 2,5 | 100 | 140 x 0,16 | 14,0 | 250 |
| 7 x 2,5 | 175 | 140 x 0,16 | 17,5 | 380 |
| 12 x 2,5 | 300 | 140 x 0,16 | 22,5 | 710 |
