Application
Everywhere, where in case of fire human life and material assets are to be protected and safety conciousness take a special significance, e. g. in industrial complexes, power stations, communal establishment, hotels, airports, underground railway networks, hospitals and outpatients clinic (DIN VDE 0107), department stores, data processing centres, theaters, cinemas, in multi-storey buildings, public gatherings, schools etc. (DIN VDE 0108), mining works, offshore plants, leading centres, traffic communication, emergency power supply and alarm systems. Suitable for fixed installation in dry and moist rooms, in, above, on and beneath plaster as well as in masonary walls and in concrete. These cables are suitable for outdoor applications and in underground by using in conduits or tubes. For the installation in conduit all precautions must be taken that no accumulation of water can occur in the pipes.

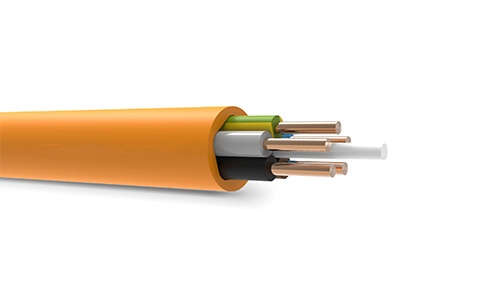

(N)HXH FE180/E90 0,6/1 kV Halogen-free security cable, with improved fire characteristics
- Voltage: 0,6/1 kV
- Temperature range: -30°C to +70°C
- Conductor: Bare copper-conductor
- Core identification to DIN VDE 0293-308
- GN-YE conductor, 3 cores and above
- Cores stranded in layer
- Core wrapping with glass-fibre tape as flame-protection
- Outer sheath of polyolefin-compound, flame retardant
- Sheath colour orange

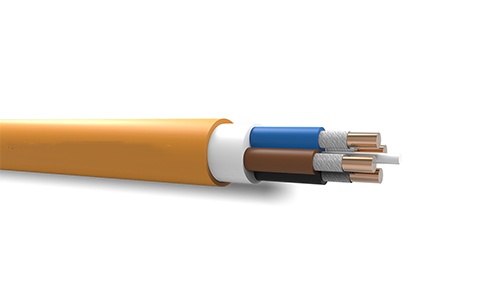

(N)HXH (FRHF) FE180/E90 300/500 V Halogen-free installation cable, with improved properties under fire
- Voltage: 300/500 V
- Temperature range: -5°C to +90°C
- Conductor: Cu, class 1 or 2 according to EN 60228
- Insulation: Ceramizable (silicone) compound
- Sheath: LSZH compound, orange
- (N)HXH FE180/E90
- (N)HXH (FRHF) FE180/E90
| No.cores x cross-sec. mm² | Outer diameter [mm] | Weight (kg/km) |
| 1×16 rm | 11,0 | 255,0 |
| 1×25 rm | 12,5 | 375,0 |
| 1×35 rm | 13,5 | 475,0 |
| 1x50rm | 15,0 | 625,0 |
| 1×70 rm | 16,5 | 855,0 |
| 1×95 rm | 18,0 | 1140,0 |
| 1x120rm | 20,5 | 1410,0 |
| 1x150rm | 22,5 | 1730,0 |
| 3×1,5 re | 14,0 | 280,0 |
| 3×2,5 re | 15,0 | 330,0 |
| 3×4 re | 16,0 | 400,0 |
| 3×6 re | 17,0 | 480,0 |
| 3×35/16 rm | 28,0 | 1850,0 |
| 3×50/25 rm | 32,0 | 2500,0 |
| 3×70/35rm | 36,0 | 3350,0 |
| 4×2,5 re | 15,0 | 325,0 |
| 4×1,5 re | 16,0 | 385,0 |
| 4×4 re | 17,0 | 470,0 |
| 4×6 re | 18,0 | 580,0 |
| 4x10re | 20,0 | 790,0 |
| 4×16 re | 22,0 | 1100,0 |
| 5×1,5 re | 16,0 | 375,0 |
| 5×2,5re | 17,0 | 445,0 |
| 5×4 re | 18,0 | 560,0 |
| 5x6re | 20,0 | 690,0 |
| 7×1,5 re | 19,0 | 560,0 |
| 7×2,5 re | 21,0 | 650,0 |
| 10×1,5re | 23,0 | 750,0 |
| 10×2,5 re | 25,0 | 910,0 |
| 12×1,5 re | 25,0 | 850,0 |
| 12×2,5 re | 26,0 | 1000,0 |
| No.cores x cross-sec. mm² | Outer diameter [mm] | Weight (kg/km) |
| 2×1,5 RE | 6,9 | 63 |
| 2×2,5 RE | 7,8 | 90 |
| 2×4 RE | 9,3 | 132 |
| 2×6 RE | 10,4 | 181 |
| 3×1,5 RE | 7,3 | 85 |
| 3×2,5 RE | 8,3 | 122 |
| 3×4 RE | 10,0 | 185 |
| 3×6 RE | 11,2 | 257 |
| 4×1,5 RE | 8,1 | 109 |
| 4×2,5 RE | 9,2 | 160 |
| 4×4 RE | 10,9 | 237 |
| 4×6 RE | 12,3 | 331 |
| 5×1,5 RE | 8,9 | 134 |
| 5×2,5 RE | 10,1 | 194 |
| 5×4 RE | 12,2 | 295 |
| 5×6 RE | 13,7 | 412 |
| 5×10 RE | 16,8 | 658 |
| 5×16 RM | 20,4 | 1023 |
| 7×1,5 RE | 9,8 | 179 |
| 7×2,5 RE | 11,2 | 264 |
