Application
These cables are intended for fixed installation in dry and moist rooms as well as in masonry and concrete, in and under plaster; not for underground installation. For installations where fire, smoke emission and toxic fumes create a potential risk to life and equipment.

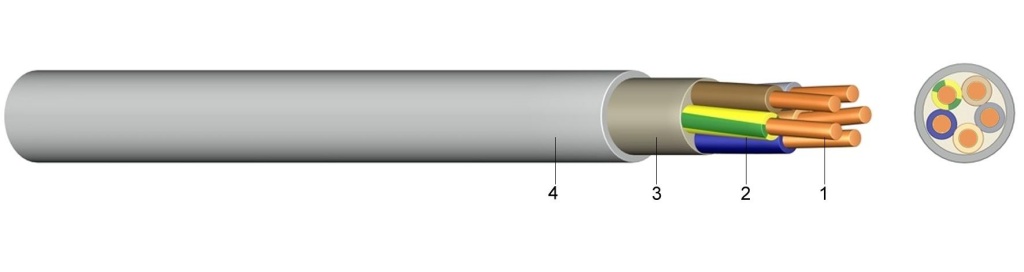

Construction
- 1. Conductor: ….. solid or stranded bare copper
- 2. Insulation: …..core insulation of cross-linked polyethylene (2XI1)
- 3. bedding: ….. core covering of a halogen-free filling compound
- 4. Sheath: ….. outer sheath of halogen-free polymer (HM2), grey
Standards
- VDE 0250 part 214
- Flame Retardant according to IEC/EN 60332-3-24
Technical Data
Voltage Rating: 300/500V
Temperature Rating:-5ºC to +70ºC
Minimum Bending Radius:
1.5mm2 to 10mm2: 4x overall diameter (red. to 2x OD at termination)
16mm2 and above: 5 x overall diameter (red. to 3x OD at termination)
Core Identification:
2 core: Blue Brown
3 core: Blue Brown Green/Yellow
4 core: Brown Black Grey Green/Yellow
5 core: Brown Black Grey Blue Green/Yellow
7 core and above: number coded
NHXMH-J / NHXMH-O Cable Technical Sheet
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA | CONDUCTOR CLASS | NOMINAL OVERALL DIAMETER | NOMINAL WEIGHT |
| mm2 | mm | kg/km | ||
| 1 | 1.5 | 1 | 5.2 | 92 |
| 1 | 2.5 | 1 | 5.6 | 110 |
| 1 | 4 | 1 | 7.1 | 135 |
| 1 | 6 | 1 | 7.4 | 160 |
| 1 | 10 | 1 | 7.8 | 215 |
| 1 | 16 | 2 | 8.8 | 295 |
| 2 | 1.5 | 1 | 8.2 | 110 |
| 2 | 2.5 | 1 | 9 | 130 |
| 2 | 4 | 1 | 9.8 | 173 |
| 3 | 1.5 | 1 | 8.7 | 120 |
| 3 | 2.5 | 1 | 9.6 | 159 |
| 3 | 4 | 1 | 11 | 223 |
| 3 | 6 | 1 | 12.5 | 320 |
| 3 | 10 | 1 | 15 | 520 |
| 3 | 16 | 2 | 19.7 | 850 |
| 4 | 1.5 | 1 | 9.2 | 151 |
| 4 | 2.5 | 1 | 10.2 | 200 |
| 4 | 4 | 1 | 12.2 | 300 |
| 4 | 6 | 1 | 13.2 | 395 |
| 4 | 10 | 1 | 15.8 | 595 |
| 4 | 16 | 2 | 20 | 935 |
| 5 | 1.5 | 1 | 10 | 168 |
| 5 | 2.5 | 1 | 11.1 | 238 |
| 5 | 4 | 1 | 13.6 | 350 |
| 5 | 6 | 1 | 15 | 480 |
| 5 | 10 | 1 | 17.7 | 773 |
| 5 | 16 | 2 | 22 | 1290 |
| 5 | 25 | 2 | 27 | 1725 |
| 7 | 1.5 | 1 | 10.2 | 210 |
| 7 | 2.5 | 1 | 12.2 | 300 |
