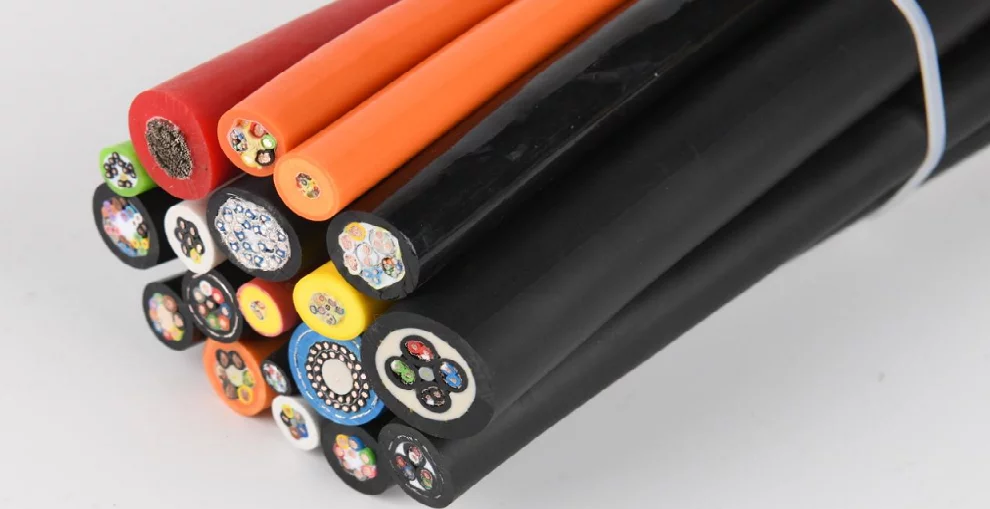

Pendant cable for control or feeder applications in lifts and hoists. The two steel load bearing elements can be detached withoutdamaging the outer sheath and fixed independently from the cable gland. Two steel cores run parallel to the outer sheath. Offers high flexibility at lower temperatures. These cables are not suitable for drum reeling installations.
Pendant hoist cables are manufactured for use in heavy industry, for use alongside other crane cables, in operations including mining, quarrying, and the construction industry. Our Pendant Hoist control cables are designed to operate under high mechanical stresses, as well as torsion, torque and tension.
Temperature Rating
- • Without External Stain Relief: -10O C to 90O C (14O F to 194O F)
- • With External Strain Relief: -10O C to 105O C (14O F to 221O F)

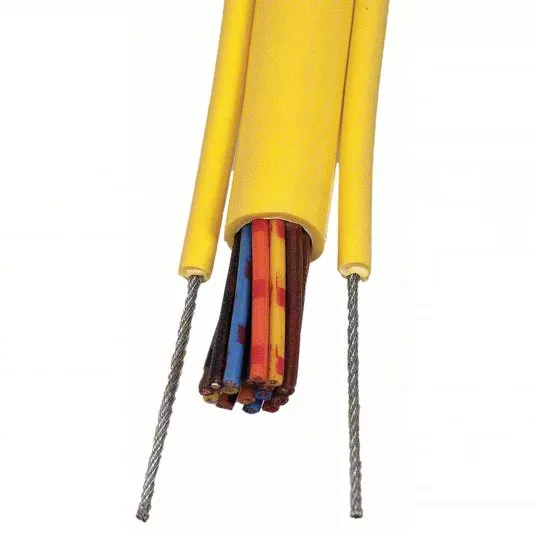

8~24 Cores Pendant Hoist Control Cable with Internal Strain Relief
- Voltage: 300/500V
- Conductor: Fine stranded bare/tinned copper
- Cores: 8~24 cores
- Insulation: XLPE
- Lay Up: Cores laid up in concentric layers
- Core color: Black cores with white numbers.
- Outer sheath: PVC
- Suspension Support: Galvanized steel wire ropes at both sides
- Sheath color: Yellow, Black or other
- Pulling Force: 2100 N for each steel core
- Maximum Suspended Height: 80 meters

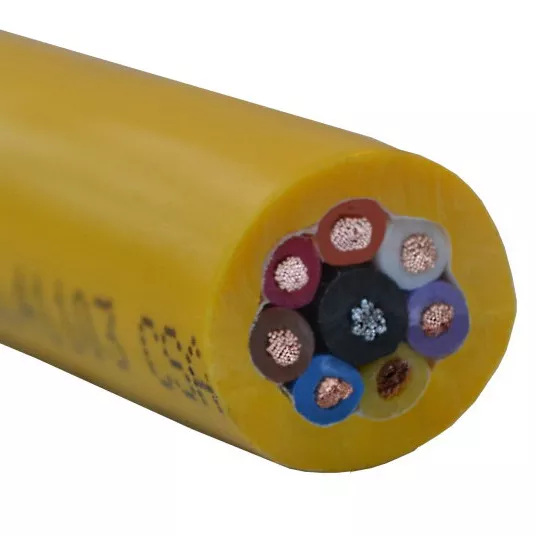

8~36 CoresPendant Hoist Control Cable without Internal Strain Relief
- Voltage: 300/500V
- Conductor: Fine stranded bare/tinned copper
- Cores: 8~36 cores
- Insulation: XLPE
- Lay Up: Cores laid up in concentric layers
- Core color: Black cores with white numbers.
- Outer sheath: PVC
- Suspension Support: Galvanized steel wire ropes at both sides
- Sheath color: Yellow, Black or other
- Pulling Force: 2100 N for each steel core
- Maximum Suspended Height: 80 meters

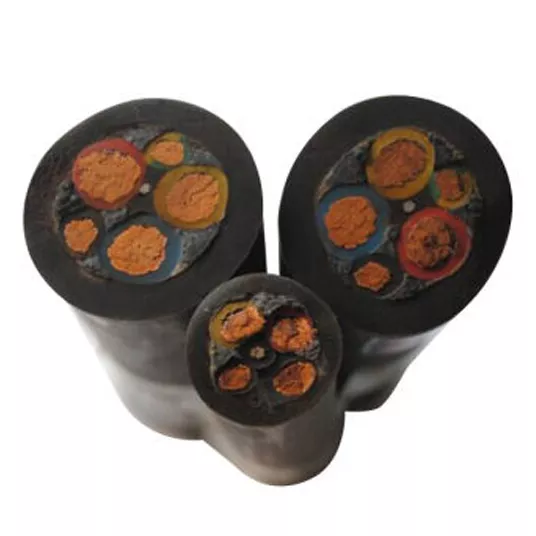

450/750V Passenger Hoist Rubber Cable
- Rated voltage: Uo/U: 450/750 V
- Conductor material: Bare copper
- Core insulation: CPE
- Stranding: stranded in layers
- Outer sheath: CPE
- Lay filler: Center filler bar
- Braid material: Polyester
- Operat. temp. fixed min/max: –40 °C / +60 °C
- Operat. temp. moved min/max: -30 °C / +60 °C
- Temp. at conductor: +60 °C
- Burning behavior: acc. to IEC 60332-1
- Application: Use in dry, humid, wet locations, for outdoor use, and it is designed for passenger hoist use.
Recommended common rubber cables for large machinery
PUR-HF Low Voltage Chain Festoon Cable
- Voltage Rating (Uo/U): 0.6/1kV
- Conductor: Class 5 flexible tinned copper
- Insulation: HF (Halogen Free) compound based on polyester
- Outer Sheath: TPU, PUR HFFR (Polyurethane – Halogen Free, Flame Retardant)
- Temperature Rating:
- Fixed installation: -50°C to +80°C
- Mobile operation: -40°C to +80°C
- Cores: 3,4,5
- Section aera: 1.5mm2-185mm2
- Application: For use as energy and control cable in festoon systems and as a chain cable. Also suitable as drum reeling cable under moderate mechanical stresses, torsion, tension and torque.
PUR/TPU Spreader LV Reeling Cable
- Voltage Rating (Uo/U): 0.6/1kV
- Conductor: Class 5 flexible tinned copper
- Insulation: Halogen free compound based on polyester
- Lay Up: Central Aramid strength member, cores in concentric layers
- Inner and Outer Sheath: TPU, PUR-HF (Halogen Free, flame retardant Polyurethane)
- Braiding: Anti-twisting element – Aramid yarns braiding
- Sheath Colour: Black, Yellow or Orange.
- Reeling Application: Up to 240m/min horiz. / Up to 180m/min vertica
- Application: Vertical reeling cable under high mechanical stresses, torsion, tension and torque. Mainly used for spreader reeling applications. Strength member to increase tensile load, acceleration and speed
Medium Voltage Material Handling Equipment (N)TSCGEWÖU Cable
- Voltage Rating (Uo/U): 3.6/6kV; 6/10kV, 8.7/15kV, 12/20kV
- Phase/Earth Conductor: Class 5 flexible tinned copper/Copper
- Insulation: Rubber compound
- Inner Sheath: Rubber compound
- Section area: 25-185mm2
- Cores: 3+3
- Maximum Short Circuit Temperature: 250°C
- Mobile Condition: +25°C to + 80°C
- Static Condition: +40°C to + 80°C
- Application: Flexible cable for fixed distribution lines in mines and alongside material handling equipment. Suitable for indoor and outdoor applications
