Application: the aerial bundled cables designed for fixed installation as overhead power lines up to 1000 V incl,To supply 120/220V aerial service for tem service at construction sites, as a service drop (power pole to service entrance) as a secondary cable (Pole to pole), or street lighting. For service at 1000V or lower at a maximum conductor temperature of 90℃.

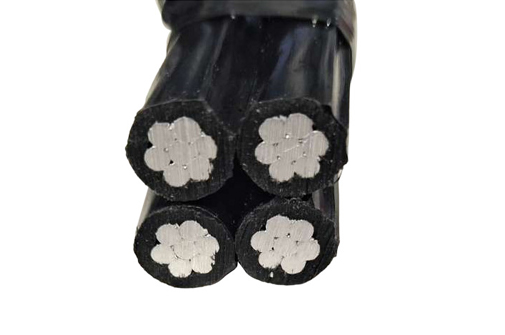

Recline Cable Nigeria ABC Cable
- Description: Stranded Aluminum/Aluminum Alloy conductor with a XLPE sheath.
- Application: Can be used for fixed installation as overhead power lines up to 1.000 V incl. Not suitable for direct burial.
Recline Cable Nigeria ABC Cable Parameter
| Number of Cores | Nominal Cross Section | Overal Diameter | Weight |
| No. | mm^2 | mm | Kg/Km |
| 1 | 10 | 5.9 | 40.4 |
| 1 | 16 | 72 | 63.7 |
| 1 | 25 | 8.4 | 91.7 |
| 1 | 35 | 9.7 | 125.6 |
| 1 | 50 | 10.9 | 164 |
| 1 | 70 | 12.6 | 226.2 |
| 1 | 95 | 15.1 | 320.2 |
| 1 | 120 | 16 | 381.6 |
| 1 | 150 | 17.8 | 470.8 |
| 1 | 185 | 19.9 | 590.4 |
| 1 | 240 | 22.5 | 764.3 |
| 2 | 10 | 11.8 | 80.9 |
| 2 | 16 | 14.4 | 127.4 |
| 2 | 25 | 16.8 | 183.4 |
| 2 | 35 | 19.4 | 251.2 |
| 2 | 50 | 21.8 | 327.9 |
| 2 | 70 | 25.2 | 452.4 |
| 2 | 95 | 30.2 | 640.5 |
| 2 | 120 | 32 | 763.1 |
| 2 | 150 | 35.6 | 941.7 |
| 2 | 185 | 39.8 | 1180.9 |
| 2 | 240 | 45 | 1528.5 |
| 3 | 10 | 9.6 | 121.3 |
| 3 | 16 | 15.7 | 191.2 |
| 3 | 25 | 24.5 | 275 |
| 3 | 35 | 33.8 | 376.8 |
| 3 | 50 | 46.2 | 491.9 |
| 3 | 70 | 66.7 | 678.6 |
| 3 | 95 | 92.5 | 960.7 |
| 3 | 120 | 1163 | 1144.7 |
| 3 | 150 | 143.1 | 1412.5 |
| 3 | 185 | 179.8 | 1771.3 |
| 3 | 240 | 234.6 | 2292.8 |
| 4 | 10 | 9.6 | 161.8 |
| 4 | 16 | 15.7 | 254.9 |
| 4 | 25 | 24.5 | 366.7 |
| 4 | 35 | 33.8 | 502.3 |
| 4 | 50 | 46.2 | 655.8 |
| 4 | 70 | 66.7 | 904.8 |
| 4 | 95 | 92.5 | 1280.9 |
| 4 | 120 | 116.3 | 1526.2 |
| 4 | 150 | 1431 | 1883.3 |
| 4 | 185 | 179.8 | 2361.7 |
| 4 | 240 | 234.6 | 3057 |
