In industrial applications, sophisticated motions increasingly need highly flexible cables that can be twisted. It requires copper core, shielding, and sheath material must withstand the extrusion force and radial pressure caused when the cable bends and twists. PUR sheath material significantly protects the inside components from damage when the cable is twisted. This cable is suitable for an industrial robot, manipulator arm, and other movable applications. As per testing results, the maximum torsion angle can be 270°and the bending cycle is 3 million times. Huadong Cable Group can customize all kinds of special cables according to customers’ needs.
Get quote by email: trade@huadongcablegroup.com

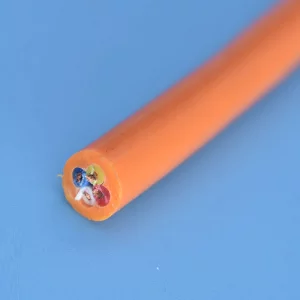

Robot flexible cable
- Conductor: bare copper
- Core number: 4 cores
- Insulation material: polyethene
- Sheath material: polyurethane
- Color: Orange
- Application: manipulator arms & industrial robot
- Description: The cable is composed of 4 power supply conductors. Polyurethane is abrasion resistant and torsion resistant, so it is very suitable for industrial robot applications.

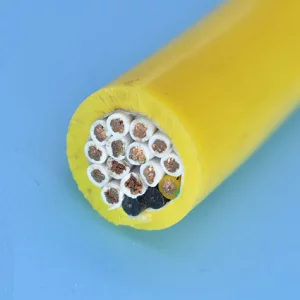

Anti-torsion robot cable
- Conductor: Fine stranded bare/tinned copper acc. to EN 60228 standard.
- Wire gauge: 28AWG to 4AWG
- Insulation: PE
- Shielding: Tinned copper braiding
- Core color: TBD acc. to DIN 47100 standard.
- Outer sheath: low adhesive PUR (polyurethane)
- Sheath color: Yellow
- Rated voltage: 300/500V (Acc. to DIN VDE 0245)
- Testing volatge: 2000V (Acc. to DIN VDE 0281-2)
- Temperature range: -25℃ till +80℃
- Operating temperature: -25℃ till +80℃
- Bending radius: Fixed installation 4xOD, In motion 10xOD
- Movable speed: 180°/S
- Oil resistance: Yes (Acc. to DIN EN 50363-10-2)

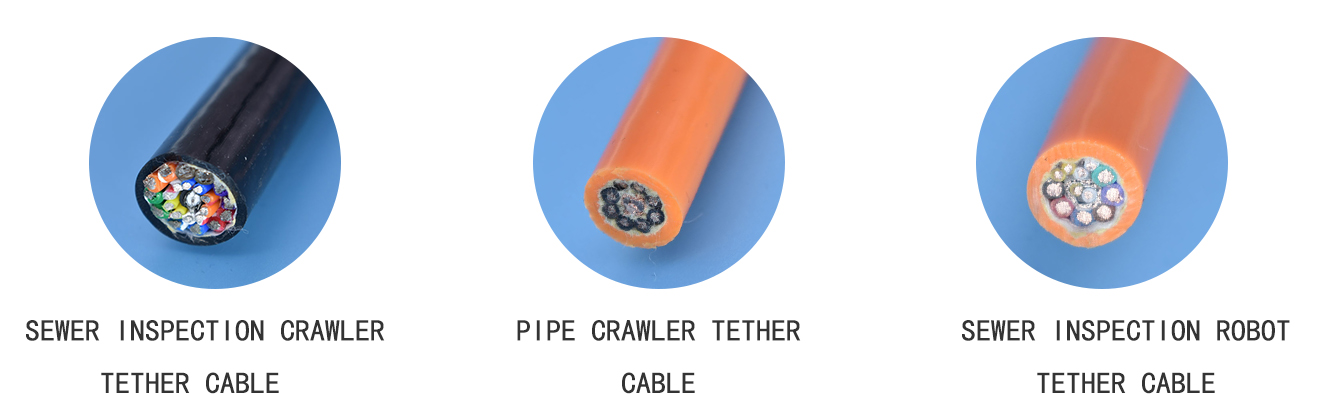

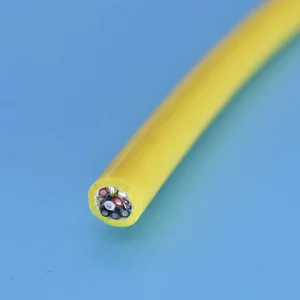

Pipe camera tether cable
- Conductor: tinned copper
- Core number: 12 cores
- Insulation material: polyethene
- Sheath material: polyurethane
- Strength member: Kevlar fiber
- Shielding: Aluminum foil+drain wires
- Breaking strain: 100kgf
- Overall diameter: 8mm
- Color: Yellow
- Application: pipe crawler tether & camera tether
