Duplex Service Drop Cable
- Description: One concentric-lay-stranded all aluminum conductor covered with HMW polyethylene or cross-linked polyethylene twisted together with one bare either AAC, ACSR, or AAAC concentric lay stranded neutral.
- Application: Used in the overhead distribution of power from pole to building weatherhead.
- Specification Data:
- 1. ASTM B-230: Aluminum 1350-H19 wire for electrical purposes
- 2. ASTM B-231: Concentric-lay-stranded aluminum 1350 conductors
- 3. ASTM B-232: Concentric-lay-strande aluminum conductors, coated-steel reinforced (ACSR)
- 4. ASTM C-8.35: Specifications for weather-resistant polyethylene-covered wire and cable
AAC Conductor Duplex Service Drop Cable Parameter
| Code Word | Phase Conductor | Bare Neutral Messenger | Allowable Ampacities+ | |||||
| Size (AWG) | Stranding | Covering Thickness (mils.) | Size (AWG) | Stranding | Rated Strength (lbs.) | POLY | XLP | |
| Pekingese | 6 | 1 | 45 | 6 | 7 | 563 | 70 | 85 |
| Collie | 6 | 7 | 45 | 6 | 7 | 563 | 70 | 85 |
| Dachshund | 4 | 1 | 45 | 4 | 7 | 881 | 90 | 115 |
| Spaniel | 4 | 7 | 45 | 4 | 7 | 881 | 90 | 115 |
| Doberman | 2 | 7 | 45 | 2 | 7 | 1350 | 120 | 150 |
| Malemute | 1/0 | 19 | 60 | 1/0 | 7 | 1990 | 160 | 205 |
ACSR Conductor Duplex Service Drop Cable Parameter Data
| Code Word | Phase Conductor | Bare Neutral Messenger | Allowable Ampacities+ | |||||
| Size (AWG) | Stranding | Covering Thickness (mils.) | Size (AWG) | Stranding | Rated Strength (lbs.) | POLY | XLP | |
| Setter | 6 | 1 | 45 | 6 | 6/1 | 1190 | 70 | 85 |
| Shepherd | 6 | 7 | 45 | 6 | 6/1 | 1190 | 70 | 85 |
| Eskimo | 4 | 1 | 45 | 4 | 6/1 | 1860 | 90 | 115 |
| Terrier | 4 | 7 | 45 | 4 | 6/1 | 1860 | 90 | 115 |
| Chow | 2 | 7 | 45 | 2 | 6/1 | 2850 | 120 | 150 |
| Bull | 1/0 | 19 | 60 | 1/0 | 6/1 | 4380 | 160 | 205 |
AAAC 6201 Alloy Duplex Service Drop Cable Parameter
| Code Word | Phase Conductor | Bare Neutral Messenger | Allowable Ampacities+ | |||||
| Size (AWG) | Stranding | Covering Thickness (mils.) | ACSR Equivalent (AWG) | Stranding | Rated Strength (lbs.) | POLY | XLP | |
| Chihuahua | 6 | 1 | 45 | 6 | 7 | 1110 | 70 | 85 |
| Vizsla | 6 | 7 | 45 | 6 | 7 | 1110 | 70 | 85 |
| Harrier | 4 | 1 | 45 | 4 | 7 | 1760 | 90 | 115 |
| Whippet | 4 | 7 | 45 | 4 | 7 | 1760 | 90 | 115 |
| Schnauzer | 2 | 7 | 45 | 2 | 7 | 2800 | 120 | 150 |
| Heeler | 1/0 | 19 | 60 | 1/0 | 7 | 4460 | 160 | 200 |

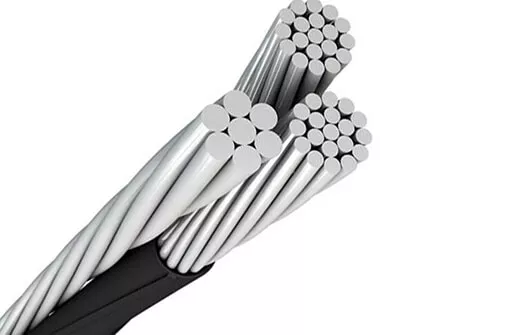

Triplex Service Drop Cable
- Description: Two stranded all aluminum conductors covered with HMW polyethylene or XLP twisted around a bare stranded aluminum conductor.
- Application: Used in the overhead transmission of power from pole to building weatherhead.
- Specification Data:
- 1. ASTM B-230: Aluminum 1350-H19 wire for electrical purposes
- 2. ASTM B-231: Concentric-lay-stranded aluminum 1350 conductors
- 3. ASTM B-232: Concentric-lay-strande aluminum conductors, coated-steel reinforced (ACSR)
- 4. ASTM C-8.35: Specifications for weather-resistant polyethylene-covered wire and cable
AAC Neutral-Messenger Triplex Service Drop Cable Parameter
| Code Name | Phase Conductor | Bare Neutral Messenger | Allowable Ampacities+ | |||||
| Size (AWG) | Stranding | Covering Thickness (mils.) | Size (AWG) | Stranding | Rated Strength (lbs.) | POLY | XLP | |
| Patella | 6 | 7 | 45 | 6 | 7 | 563 | 70 | 85 |
| Oyster | 4 | 7 | 45 | 4 | 7 | 881 | 90 | 115 |
| Clam | 2 | 7 | 45 | 2 | 7 | 1350 | 120 | 150 |
| Murex | 1/0 | 7 | 60 | 1/0 | 7 | 1990 | 160 | 205 |
| Purpura | 1/0 | 19 | 60 | 1/0 | 7 | 1990 | 160 | 205 |
| Nassa | 2/0 | 7 | 60 | 2/0 | 7 | 2510 | 185 | 235 |
| Trophon | 2/0 | 19 | 60 | 2/0 | 7 | 2510 | 185 | 235 |
| Melita | 3/0 | 19 | 60 | 3/0 | 19 | 3310 | 215 | 275 |
| Portunus | 4/0 | 19 | 60 | 4/0 | 19 | 4020 | 245 | 315 |
| Nannynose | 336.4 | 19 | 80 | 336.4 | 19 | 6146 | 325 | 420 |
ACSR Neutral-Messenger Triplex Service Drop Cable Parameter
| Code Name | Phase Conductor | Bare Neutral Messenger | Allowable Ampacities+ | |||||
| Size (AWG) | Stranding | Covering Thickness (mils.) | Size (AWG) | Stranding | Rated Strength (lbs.) | POLY | XLP | |
| Paludina | 6 | 1 | 45 | 6 | 6/1 | 1190 | 70 | 85 |
| Voluta | 6 | 7 | 45 | 6 | 6/1 | 1190 | 70 | 85 |
| Scallop | 4 | 1 | 45 | 6 | 6/1 | 1190 | 90 | 115 |
| Whelk | 4 | 1 | 45 | 4 | 6/1 | 1860 | 90 | 115 |
| Strombus | 4 | 7 | 45 | 6 | 6/1 | 1190 | 90 | 115 |
| Periwinkle | 4 | 7 | 45 | 4 | 6/1 | 1860 | 90 | 115 |
| Cockle | 2 | 7 | 45 | 4 | 6/1 | 1860 | 120 | 150 |
| Conch | 2 | 7 | 45 | 2 | 6/1 | 2850 | 120 | 150 |
| Janthina | 1/0 | 7 | 60 | 2 | 6/1 | 2853 | 160 | 205 |
| Neritina | 1/0 | 7 | 60 | 1/0 | 6/1 | 4380 | 160 | 205 |
| Ranella | 1/0 | 19 | 60 | 2 | 6/1 | 2853 | 160 | 205 |

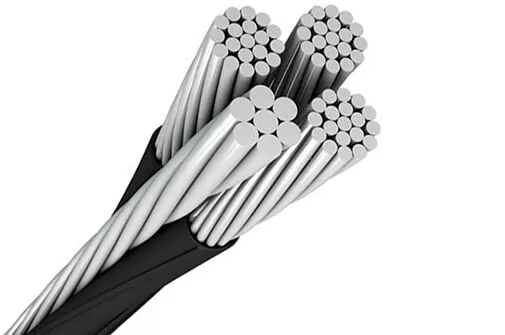

Quadruplex Service Drop Cable
- Description: Three stranded all aluminum conductors covered with HMW or cross-linked (XLP) polyethylene twisted around a bare ACSR conductor.
- Application: Used in the overhead distribution of power from pole to building weatherhead.
- Specification Data:
- 1. ASTM B-230: Aluminum 1350-H19 wire for electrical purposes
- 2. ASTM B-231: Concentric-lay-stranded aluminum 1350 conductors
- 3. ASTM B-232: Concentric-lay-strande aluminum conductors, coated-steel reinforced (ACSR)
- 4. ASTM C-8.35: Specifications for weather-resistant polyethylene-covered wire and cable
AAC Neutral-Messenger Quadruplex Service Drop Cable Parameter
| Code Name | Phase Conductor | Bare Neutral Messenger | Allowable Ampacities+ | |||||
| Size (AWG) | Stranding | Covering Thickness (mils.) | Size (AWG) | Stranding | Rated Strength (lbs.) | POLY | XLP | |
| Clydesdale | 4 | 1 | 45 | 4 | 7 | 881 | 80 | 100 |
| Pinto | 4 | 7 | 45 | 4 | 7 | 881 | 80 | 100 |
| Mustang | 2 | 7 | 45 | 2 | 7 | 1350 | 105 | 135 |
| Criollo | 1/0 | 19 | 60 | 1/0 | 7 | 1990 | 140 | 180 |
| Percheron | 2/0 | 19 | 60 | 2/0 | 7 | 2510 | 160 | 205 |
| Hanovarian | 3/0 | 19 | 60 | 3/0 | 19 | 3310 | 185 | 235 |
| Oldenburg | 4/0 | 19 | 60 | 4/0 | 19 | 4020 | 210 | 27 |
ACSR Neutral-Messenger Quadruplex Service Drop Cable Parameter
| Code Name | Phase Conductor | Bare Neutral Messenger | Allowable Ampacities+ | |||||
| Size (AWG) | Stranding | Covering Thickness (mils.) | Size (AWG) | Stranding | Rated Strength (lbs.) | POLY | XLP | |
| Morochuca | 6 | 1 | 45 | 6 | 44348 | 1190 | 60 | 75 |
| Chola | 6 | 7 | 45 | 6 | 44348 | 1190 | 60 | 75 |
| Morgan | 4 | 1 | 45 | 4 | 44348 | 1860 | 80 | 100 |
| Hackney | 4 | 7 | 45 | 4 | 44348 | 1860 | 80 | 100 |
| Palomino | 2 | 7 | 45 | 2 | 44348 | 2850 | 105 | 135 |
| Standardbred | 1/0 | 7 | 60 | 1/0 | 44348 | 4380 | — | — |
| Costena | 1/0 | 19 | 60 | 1/0 | 44348 | 4380 | 140 | 180 |
| Grullo | 2/0 | 19 | 60 | 2/0 | 44348 | 5310 | 160 | 205 |
AAAC Neutral-Messenger Quadruplex Service Drop Cable Parameter
| Code Name | Phase Conductor | Bare Neutral Messenger | Allowable Ampacities+ | |||||
| Size (AWG) | Stranding | Covering Thickness (mils.) | ACSR Equivalent (AWG) | Stranding | Rated Strength (lbs.) | POLY | XLP | |
| Bay | 6 | 1 | 45 | 6 | 7 | 1110 | 60 | 75 |
| French Coach | 6 | 7 | 45 | 6 | 7 | 110 | 60 | 75 |
| German Coach | 4 | 1 | 45 | 4 | 7 | 1760 | 80 | 100 |
| Arabian | 4 | 7 | 45 | 4 | 7 | 1760 | 80 | 100 |
| Belgian | 2 | 7 | 45 | 2 | 7 | 2800 | 105 | 135 |
| Shetland | 1/0 | 19 | 60 | 1/0 | 7 | 4460 | 140 | 180 |
| Thoroughbred | 2/0 | 19 | 60 | 2/0 | 7 | 5390 | 160 | 205 |
| Trotter | 3/0 | 19 | 60 | 3/0 | 7 | 6790 | 185 | 235 |
