As a measure, inspection, and control cable, it has tinned copper shielding and is suitable for machine tool building, equipment installation projects, power stations, heating and cooling systems, office automation, and data processing system.

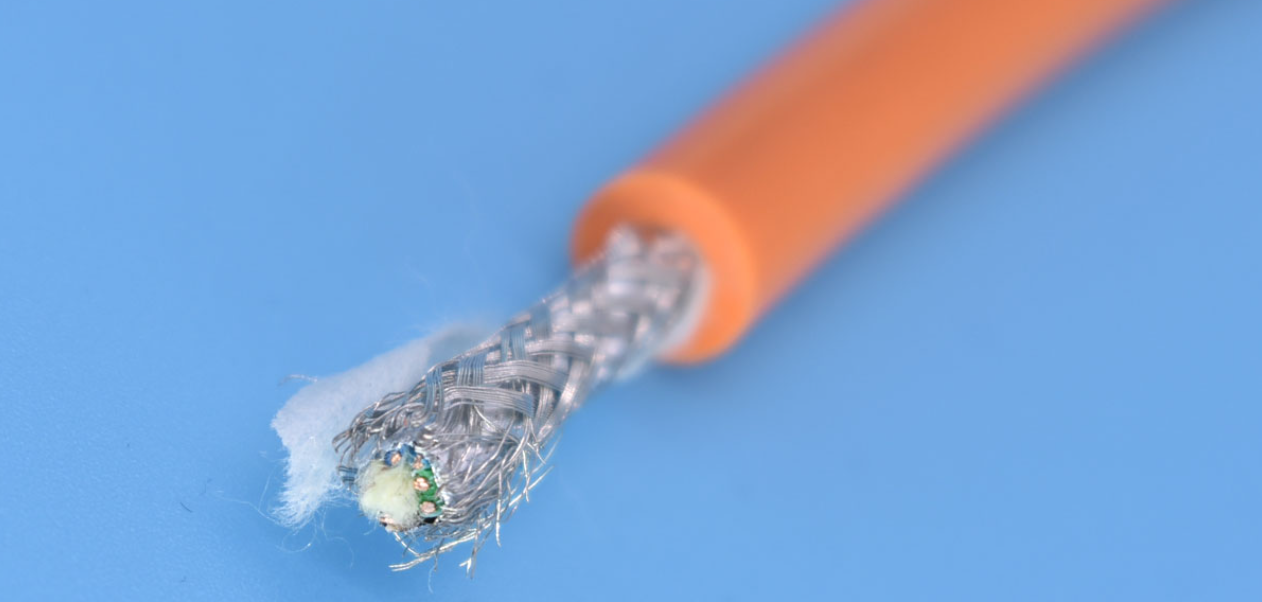

It has flame resistance, excellent insulation, and stable chemical properties. Effectively avoid electromagnetic interference as the cable has dual shielding of aluminum foil and copper braiding. Shielded servo cable can be customized according to the customer’s request in Huadong Factory.
- Construction
- Conductor: Fine stranded bare/tinned copper
- Wire gauge: 28AWG to 4AWG
- Insulation: TPE compound
- Insulation color: TBD acc. to DIN 47100 standard.
- Shielding: Tinned copper braiding
- Inner sheath: PVC
- Outer sheath: low adhesive PVC
- Sheath color: Yellow
- Technical data
- Rated voltage: 600/1000V
- Testing volatge: 4000V
- Temperature range: -20℃ till +70℃
- Operating temperature: -20℃ till +70℃
- Bending radius: Fixed installation 4xOD, In motion 7xOD
- Running speed: max 10m/s
- Anti-radiation: medium
- Oil resistance: Yes (acc. to DIN EN 50363-4-1)
