Description

VFD cable organizes and protects variable frequency drive input and motor power wiring, and is designed to reduce VFD-related interference (EMI) on nearby equipment. These shielded multi-conductor cables have a black thermoplastic elastomer (TPE) outer jacket, and are available with 4 conductors in up to 2 AWG wire size. A variety of constructions and voltages are available including 600V, 2KV, 2KV armored & sheathed, and 8KV and 15KV medium voltage armored & sheathed. Grounding systems are offered in full conductor size, 3 symmetrical bare, and 3 symmetrical insulated. Shielding options include copper tape shield, tinned copper braid + poly aluminum tape, and tinned copper armor + aluminum poly tape. Whether onshore or offshore, in a refinery or on a platform, HWC has the right VFD power cable for your application.

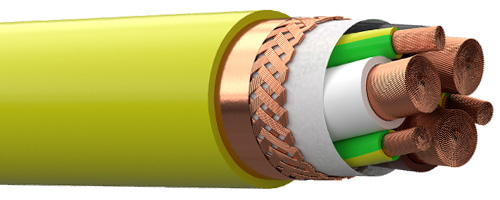

0.6/1kv 4 core EMC VFD Cable

01-2

  • Voltage: 2kV, 5kV, 8kV, 15kV, 25kV
  • Type: Flat or Round
  • Conductor: Flexible tinned copper
  • Insulation: EPR (90°C)
  • Insulation Shielding: Tinned copper and color-coded nylon braid
  • Ground Check Conductor: Flexible tinned copper with yellow XLPE insulation
  • Ground Wires: Flexible tinned copper
  • Jacket: CPE or TPU
  • Standard: IEC, BS, DIN, VDE, ASTM, CSA or Customized

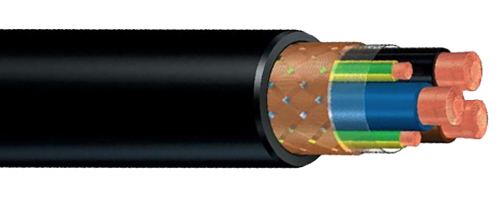

3+3Core EMC Type P Marine VFD Cable

33-vfd-cable1

  • Voltage: 2kV, 5kV
  • Core: 3 Core
  • Conductor: Flexible tinned copper
  • Insulation: EPR (90°C)
  • Insulation Shielding: Tinned copper and color coded nylon braid
  • Ground Conductor: Flexible tinned copper located in the center of the cable
  • Control Ground Conductor: Tinned Copper Conductor/EPR Insulation
  • Jacket: CPE (Blue, Green, Yellow, Orange, Red, Black)

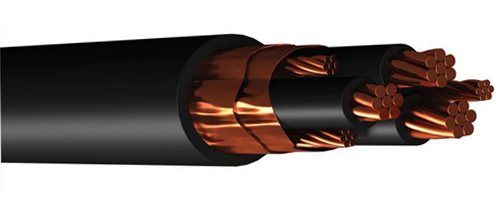

0.6/1KV 3+3 Core XLPO VFD Power Cable

VFD-power-cable

  • Voltage: 2kV, 5kV
  • Core: 3 Core
  • Conductor: Flexible tinned copper
  • Insulation: EPR (90°C)
  • Insulation Shielding: Tinned copper and color coded nylon braid
  • Ground Wires: Flexible tinned copper
  • Control Check Conductor: Tinned copper with yellow insulation located in the central of the cable
  • Separator Tape: Non-conducting
  • Jacket: CPE (Blue, Green, Yellow, Orange, Red, Black)

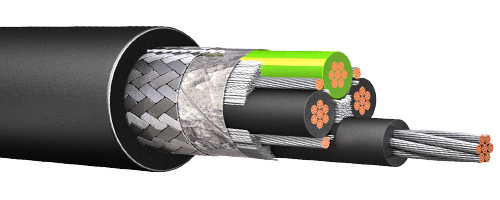

0.6/1kV Foil&Braid Shielded VFD Cable

005

  • Voltage: 600/1000V Type TC-ER, 90°C
  • Core: 3+3 Core
  • Conductor: Flexible tinned copper
  • Insulation: XLPO/XLPE
  • Insulation Shielding: Braid/Foil Shield with Full Size Drain Wire
  • Ground Conductor: One full-size tinned copper conductor with green/yellow polyvinyl chloride (PVC) insulation
  • Jacket: PVC
  • Color code: Black with number surface printed in contrasting ink

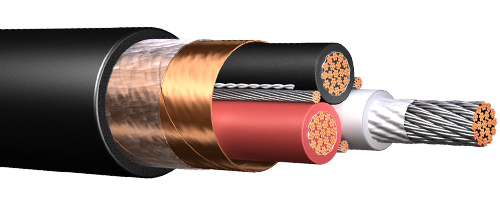

0.6/1kV Copper Tape Shielded VFD Cable

006

  • Voltage: 600/1000V Type TC-ER, 90°C
  • Core: 3+3 Core
  • Conductor: Flexible tinned copper
  • Insulation: XLPO
  • Insulation Shielding: Copper Tape Shielded
  • Ground Conductor: Three symmetrically placed flexible stranded tinned copper conductors in direct contact with the shield
  • Jacket: PVC
  • Color code: 262MCM and larger: black and numbered
  • 4/0AWG and smaller: red, white, black

0.6/1kV Foil & Braid w/ Signal Pair

007

  • Voltage: 600/1000V Type TC-ER, -40C°C to 90C°
  • Core: Signal Pair
  • Conductor: Tinned Copper Conductors + Signal Pair
  • Insulation: XLPE
  • Insulation Shielding: Overall +85% TC Braid Shield
  • Ground Conductor: Full-sized Insulated Grounds
  • Jacket: PVC
  • Color code: Black with number surface printed in contrasting ink
  • 3+3 Core XLPE VDF Cable Parameter
  • 3+3 Core XLPE VDF Cable Parameter
  • 3+3 Core XLPE VDF Cable Parameter
n˚ x Section (mm2) Diameter under the braid (mm) Overall Diameter (mm) Weight (kg/km)
4 G 1,5 7,0 10,4 155
4 G 2,5 7,9 11,3 195
4 G 4 9,2 12,4 260
4 G 6 10,6 14,0 345
4 G 10 12,9 17,2 595
3 x 16 + 3 G 2,5 13,5 17,2 670
3 x 25 + 3 G 4 16,8 21,4 1085
3 x 35 + 3 G 6 19,4 24,1 1455
3 x 50 + 3 G 10 22,8 28,0 2025
3 x 70 + 3 G 10 27,1 32,5 2650
3 x 95 + 3 G 16 30,5 36,1 3455
3 x 120 + 3 G 16 34,6 41,0 4345
3 x 150 + 3 G 25 38,9 45,5 5450
3 x 185 + 3 G 35 43,4 50,4 6755
3 x 240 + 3 G 50 49,2 56,6 8680
3 x 300 + 3 G 50 55,3 63,0 10695
Size (AWG/kcmil) Number of Conductor Conductor Stranding Insulation Thickness (inches) Ground Wire Size (AWG) Ground Wire Stranding Jacket Thickness (inches) Overall Dia. (inches) Weight (lbs/Mft.)
14 3 19 0.030 18 x 3 19 0.06 0.466 158
12 3 19 0.030 16 x 3 19 0.06 0.509 199
10 3 37 0.030 14 x 3 19 0.06 0.552 258
8 3 37 0.045 14 x 3 19 0.06 0.653 368
6 3 61 0.045 12 x 3 19 0.06 0.737 517
4 3 133 0.045 12 x 3 19 0.08 0.956 814
2 3 133 0.045 10 x 3 37 0.08 1.103 1,178
1 3 209 0.055 10 x 3 37 0.08 1.221 1,462
1/0 3 266 0.080 10 x 3 37 0.08 1.447 1,886
2/0 3 323 0.080 10 x 3 37 0.08 1.538 1,951
4/0 3 532 0.080 8 x 3 37 0.11 1.883 3,102
262 3 646 0.065 6 x 3 61 0.11 1.981 3,642
313 3 777 0.065 6 x 3 61 0.11 2.08 4,658
373 3 925 0.065 6 x 3 61 0.11 2.215 5,318
444 3 1110 0.065 6 x 3 61 0.11 2.367 6,177
535 3 1332 0.080 6 x 3 61 0.11 2.676 7,787
646 3 1591 0.080 4 x 3 133 0.14 2.893 9,155
777 3 1924 0.080 4 x 3 133 0.14 3.164 10,914
n˚ x Section (mm2) Diameter under the braid (mm) Overall Diameter (mm) Weight (kg/km)
4 G 1,5 7,0 10,4 155
4 G 2,5 7,9 11,3 195
4 G 4 9,2 12,4 260
4 G 6 10,6 14,0 345
4 G 10 12,9 17,2 595
3 x 16 + 3 G 2,5 13,5 17,2 670
3 x 25 + 3 G 4 16,8 21,4 1085
3 x 35 + 3 G 6 19,4 24,1 1455
3 x 50 + 3 G 10 22,8 28,0 2025
3 x 70 + 3 G 10 27,1 32,5 2650
3 x 95 + 3 G 16 30,5 36,1 3455
3 x 120 + 3 G 16 34,6 41,0 4345
3 x 150 + 3 G 25 38,9 45,5 5450
3 x 185 + 3 G 35 43,4 50,4 6755
3 x 240 + 3 G 50 49,2 56,6 8680
3 x 300 + 3 G 50 55,3 63,0 10695

VFD Cable Application Cables

001

Industry VFD System

002

Metallurgical industry

003

Automated Manufacturing

004

Food Processing Industry
