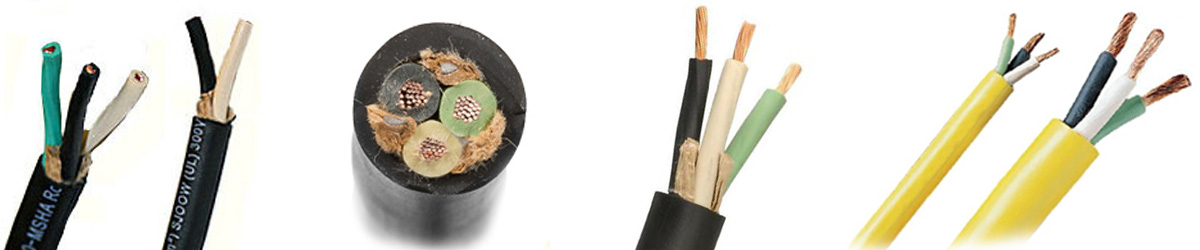

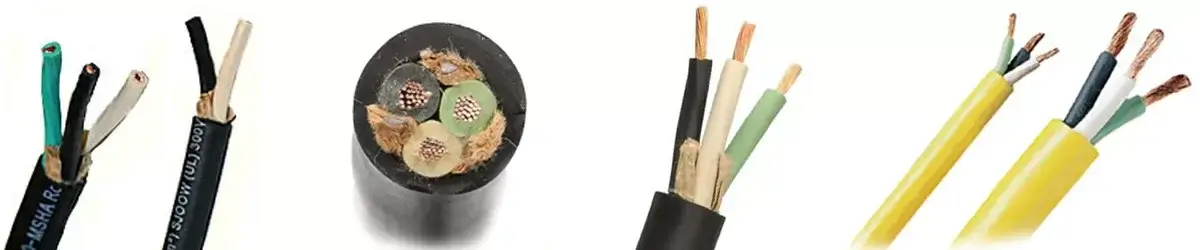

Huadong group is a professional rubber cable (include: sjoow cable, sjo cable, soow cable, h07rn-f, 2pnct cable, mining rubber cable, pump cable etc) manufacturer.
Structure description
- 1. Insulation: Ethylene Propylene Diene Monomer (EPDM) or EP compound
- 2. Jacket: rubber or CPE or CP compound
- 3. Voltage: 300 Volt
- 4. -40ºC to +90ºC
- 5. 90ºC 300 Volt UL /CSA Portable Cord
- 6. Excellent resistance to oil and moisture Good tensile strength, elongation and aging characteristics High flexibility Excellent abrasion resistance Water-resistant UL Listed and CSA Certified for indoor and outdoor use.
What’s mean the ‘S’ ‘J’ ‘O’ ‘OO’
The ‘S’ and ‘J’ letters in each of these types mean that they are ‘J’unior ‘S’ervice. Junior service simply means that the voltage rating of the cord is 300 volts. A single ‘O’ designates an oil resistant outer jacket, while the double ‘OO’ stands for oil-resistant insulation and an oil-resistant outer jacket. Finally, the ‘W’ stands for weather and water-resistant and is CSA approved for indoor or outdoor use.
SJOOW Cable Parameter Sheet
| (AWG) | Nominal stranding | Nominal overall diameter | Max.conductor resistance at 20℃(Ω/km) | ||
| AWG | mm | inch | mm | ||
| 6 | 259/30 | 259/0.254 | 0.43 | 10.92 | 1.33 |
| 4 | 418/30 | 418/0.254 | 0.475 | 12.07 | 0.84 |
| 2 | 646/30 | 646/0.254 | 0.54 | 13.72 | 0.53 |
| 1 | 836/30 | 836/0.254 | 0.58 | 14.73 | 0.42 |
| 1/0 | 1032/30 | 1032/0.254 | 0.615 | 15.62 | 0.33 |
| 2/0 | 1290/30 | 1290/0.254 | 0.655 | 16.64 | 0.26 |
| 3/0 | 1672/30 | 1672/0.254 | 0.72 | 18.29 | 0.21 |
| 4/0 | 2066/30 | 2066/0.254 | 0.78 | 19.81 | 0.17 |

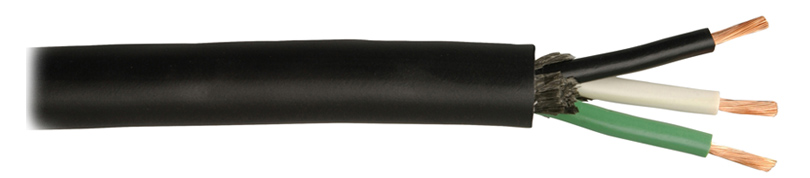

SOOW Cable Parameter Date
| PartNo. | CableSize | Conductor Stranding | Amps | Jacket thick |
| SOOW 2/3 | 2AWG | 133/11 | 95 | 0.155 |
| SOOW 4/5 | 4AWG | 119/25 | 48 | 0.155 |
| SOOW 6/4 | 6AWG | 101/26 | 45 | 0.845 |
| SOOW 8/5 | 8AWG | 65/26 | 28 | 0.86 |
| SOOW 10/2 | 10AWG | 104/30 | 30 | 0.095 |
| SOOW 12/4 | 12AWG | 65/30 | 16 | 0.07 |
| SOOW 14/4 | 14AWG | 41/30 | 15 | 0.575 |
| SOOW 16/3 | 16AWG | 26/30 | 13 | 0.06 |
SJO Cable Parameter Date
| Part Number | AWG Size | Conductor Stranding | Approx LBS/MFT | Nom. Insul. Thick. (in) | Amps |
| SJO 18/3 | 18 | 16/30 | 60 | 0.03 | 10 |
| SJO 16/2 | 16 | 26/30 | 60 | 0.03 | 13 |
| SJO 16/3 | 16 | 26/30 | 75 | 0.03 | 13 |
| SJO 14/2 | 14 | 41/30 | 75 | 0.03 | 18 |
| SJO 14/3 | 14 | 41/30 | 105 | 0.03 | 18 |
| SJO 12/2 | 12 | 65/30 | 105 | 0.03 | 25 |
| SJO 12/3 | 12 | 65/30 | 140 | 0.03 | 25 |
| SJO 10/3 | 10 | 104/30 | 240 | 0.045 | 30 |
| SJO 10/4 | 10 | 104/30 | 325 | 0.045 | 25 |
