CRANE SPREADER REELING CABLE is specifically designed and manufactured to withstand abusive environments, high hoist and trolley speeds, and extreme mechanical stresses predominant on vertical reeling systems found in new generation ships to shore container cranes.We can customize all kinds of special cables according to customer’s needs.

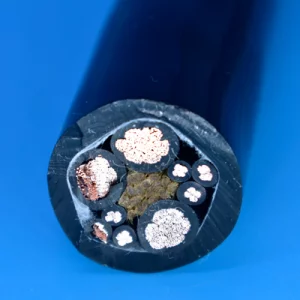

3+6 cores spreader-flex cable round YSLTK YSLYCYK spreader hoisting cable
- Conductor: Fine stranded bare/tinned copper
- Insulation: PE (polyethylene)
- Core color: TBD acc. to DIN 47100 standard.
- Outer sheath: PUR (polyurethane)
- Sheath color: Grey(RAL 7001), Black(RAL 9005) or Orange(RAL 2003)
- Rated voltage: 0.6/1KV(600/1000V)
- Max.permissble operating voltage AC: 0.7/1.2KV
- Max.permissble operating voltage DC: 0.9/1.8KV
- AC Test Voltage: 3.5KV(5 Min.)
- Temperature range: -40℃ till +80℃
- Operating temperature: -40℃ till +80℃
- Max. tensile load on the conductor: 15N/mm2
- Min.bending radius: Acc.to VDE 0298 part 3
- Travel speed: Basket operation:160m/min
