Voltage: 1.8/3Kv, 3.6/61Kv, 1/35 KV

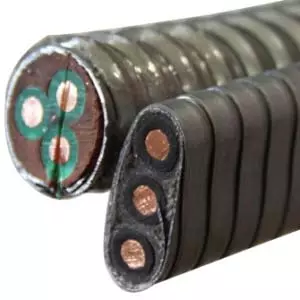

Type: Flat or Round
Cores: 3
Condutor: Solid copper/Uncoated copper Conductor
Insulation: EPR or EPDM Rubber
Sheath: Lead or NBR

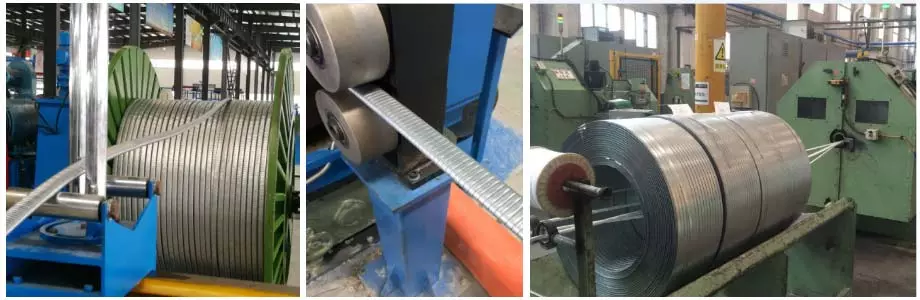

Armoured: Galvanized Steel armor
Get quote by email: trade@huadongcablegroup.com
Test voltage of the finished product before leaving the factory
| Rated voltage (KV) | Test voltage(KV) |
| 1.8/3 | DC 30/5min or AC 10KV/1min,no-breakdown |
| 3.6/6 | DC 35/5min or AC 13KV/1min,no-breakdown |
Get quote by email: trade@huadongcablegroup.com

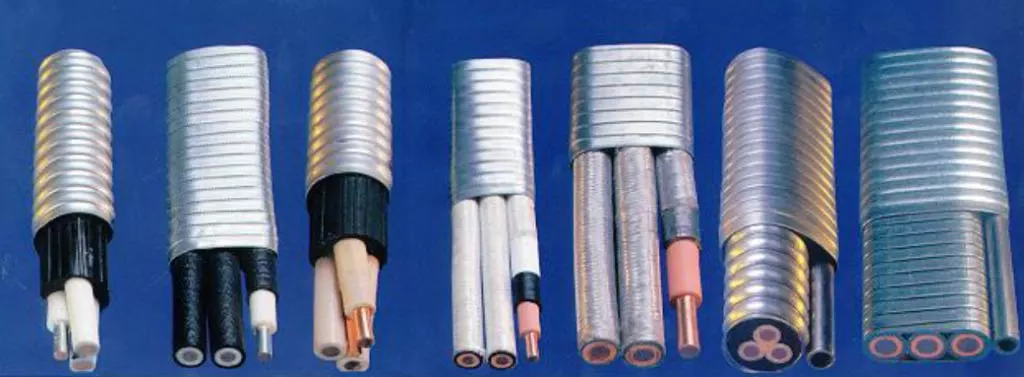

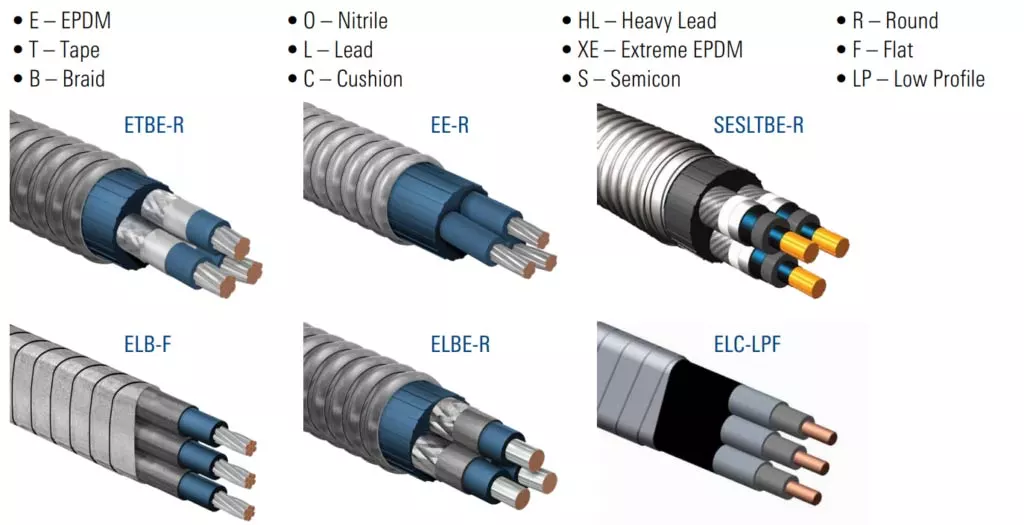

The Submersible Oil Pump Cable Type and Name
| Cable type | Description | Max working
temperatur |
Product range (cross section) mm2 |
| QYPN | PP insulated and NBR sheathed, galvanized steel tape interlocked armoring, cable for submersible oil pump |
96 | 10,13,16,20,33,42 |
| QYPNY | PP insulated and NBR sheathed, galvanized steel tape interlocked armoring, round cable for submersible oil pump |
96 | 10,13,16,20,33,42 |
| QYEN | EPR insulated and NBR sheathed galvanized steel tape interlocked armoring, for submersible oil pump |
140 | 10,13,16,20,33,42 |
| QYENY | EPR insulated and NBR sheathed,galvanized steel tape interlocked armoring,round cable for submersible oil pump |
140 | 10,13,16,20,33,42 |
| QYEE | EPR insulated and sheathed,galvanized steel tape interlocked armoring,cable for submersible oil pump |
175 | 10,13,16,20,33,42 |
| QYEEY | EPR insulated and sheathed,galvanized steel tape interlocked armoring,round cable for submersible oil pump |
175 | 10,13,16,20,33,42 |
| QYEQ | EPR insulated and lead sheathed,galvanized steel tape interlocked armoring,cable for submersible oil pump |
204 | 10,13,16,20,33,42 |
| QYYEQ | Polyimide-F46 composite film and EPR insulated,lead sheathed, galvanized steel tape interlocked armoring,cable for submersible oil pump |
232 | 10,13,16,20,33,42 |
| QYYEEY | Polyimide-F46 composite film and EPR insulated,EPR sheathed, galvanized steel tape interlocked armoring,round cable for submersible oil pump |
204 | 10,13,16,20,33,42 |
Get quote by email: trade@huadongcablegroup.com
Flat Oil pump cable application and features:
The product is applicable to the flat power cable for electric submersible oil(submersible water and halogen element) pump at rated voltage up to and including 3.6/6kv, the lower end fo flat power cable is connected to the submersible motor and the upper end of flat power cable is connected to the cabinet on the ground. Long-term operating temperature of conductor shall be 120 C°
Get a quote by email: trade@huadongcablegroup.com
Round Oil pump cable application and features:
The product is applicable to the round power cable for electric submersible oil(submersible water and halogen element) pump at rated voltage up to and including 3.6/6 KV, The lower end of round power cable is connected to the submersible motor and the upper end of round power cable is connected to the cabinet on the ground. Long-term operating temperature of cnductor shall be 90 C
