Application of submersible water pump cable
This Submersible Water Pump cable is suitable for various types of the lead wire of submersible motor (lead from underwater to above-water). This product can be equipped with a waterproof joint (it can be supplied completely as request). The features of lead wire are convenient in use, good waterproof property. Even if it exists in external damage, it can also guarantee the motor is not suffered from damage caused by water. This is a new type of waterproof cable.

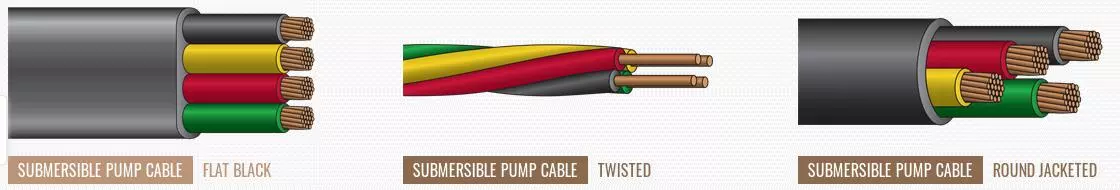

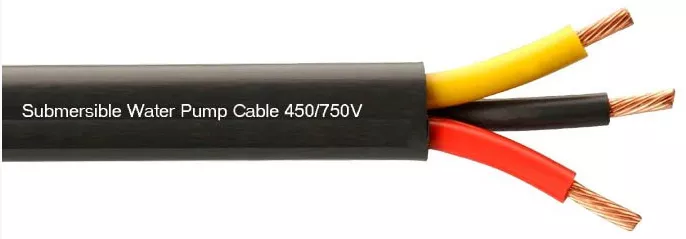

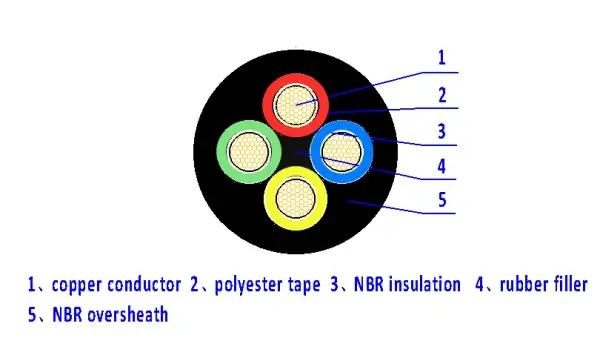

Roud type subermersible pupmp cable structute decsription
- Voltage: 300/500V, 450/750V, 600/1000V
- Test Voltage: 1.5KV, 2.5KV, 3.5KV and so on.
- Type: Flat/Round or twisted
- Conductor Working temperature: 85°C
- Insulation: EPR/PVC/Rubber.
- Ambient temperature: Fixed: -40°C to 90°C; Mobile:-25°C to 90°C
- Flame retardant: VDE 0482-332-1-2/IEC 60332-1 and so on.
Flat subermersible pupmp cable structute decsription
- Application: For wiring within the casing of deep well submersible water pumps
- Conductor: Annealed bare stranded copper conductors PVC insulated and run parallel with a PVC black jacket to form a 75°C 600 Volt Multi-Conductor.
- Feature – Operating temperature range -40° C to 75° C
- – Resistant to acid, abrasion, alkalis, flame, gas, and oil
Get quote by email: trade@huadongcablegroup.com

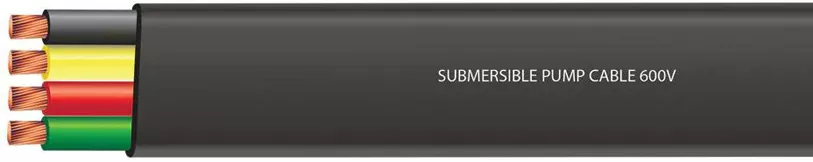

Flat Jacket Submersible Pump Cables With Ground
| CONDUCTOR SIZE | NO OF | NOS OF DIA. OF | Ground Conductor Size | CORE DIA. | NOMINAL SHETH THICKNESS |
| AWG | CONDUCTOR | WIRE | AWG | MM | MM |
| 14 | 3 | 41×0.254 | 14 | 3.85 | 1.15 |
| 12 | 3 | 65×0.254 | 12 | 4.5 | 1.15 |
| 10 | 3 | 105×0.254 | 10 | 5.3 | 1.15 |
| 8 | 3 | 168×0.254 | 10 | 6.5 | 1.4 |
| 6 | 3 | 226×0.254 | 8 | 8 | 2 |
| 4 | 3 | 420×0.254 | 8 | 10.1 | 2 |
| 2 | 3 | 665×0.254 | 6 | 11.3 | 2.2 |
| 1 | 3 | 817×0.254 | 6 | 13.6 | 2.2 |
| 1/0 | 3 | 1045×0.254 | 6 | 15.6 | 2.2 |
| 2/0 | 3 | 1330×0.254 | 6 | 18 | 2.2 |
Get quote by email: trade@huadongcablegroup.com
JHS subermersible pump cable paramete date
| Conductor | Nominal Core Dia. | Approx. Overall Dimensions of doubble Sheathed Cable | CCurrent rating at 40 degree | ||
| Nominal Area in | Nos. & Dia. of wire | 3 Core | 4 Core | Amps | |
| Sq. mm. | Nos./mm | mm | mm | mm | |
| 1.5 | 22/0.30 | 3.25 | 10 | 10.8 | 14 |
| 2.5 | 36/0.30 | 3.84 | 11 | 12.5 | 18 |
| 4 | 56/0.30 | 4.5 | 13 | 14.1 | 26 |
| 6 | 84/0.30 | 5.3 | 14.6 | 16 | 31 |
| 10 | 140/0.30 | 6.5 | 18 | 20.35 | 42 |
| 16 | 224/0.30 | 8 | 21.2 | 23.4 | 57 |
| 25 | 350/0.30 | 10.1 | 26 | 28.8 | 72 |
| 35 | 490/0.30 | 11.3 | 28.3 | 31.5 | 90 |
| 50 | 703/0.30 | 13.6 | 33.5 | 37.3 | 115 |
| 70 | 988/0.30 | 15.3 | 37.8 | 42.2 | 143 |
| 95 | 1349/0.30 | 18 | 43.5 | 48.8 | 165 |
