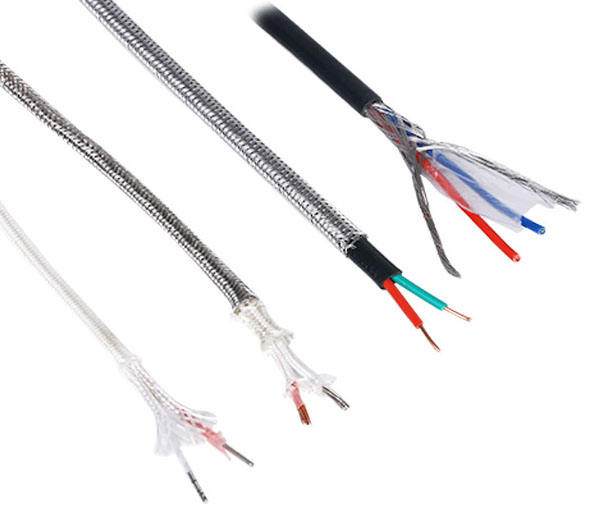

Huadong Cable Group supplies a range of thermocouple extension high-temperature cable that are manufactured in accordance with various International Standards, including type-k, type-e, type-e, type-t ,200°C~260°C FEP/PFA/PTFE/Silicone rubber/Polyimide Insulation (fiberglass Braided shielded） high-temperature cable.

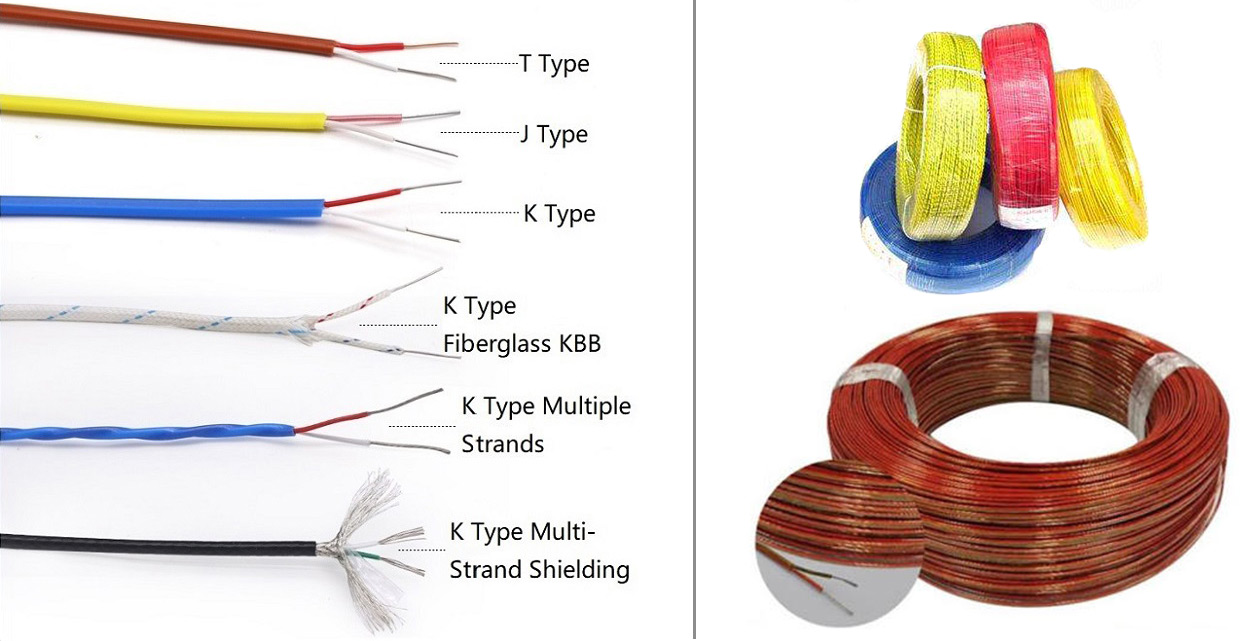

Thermocouple Extension Construction
- Rate Voltage: 300V, 600V
- Conductor: Tnickel-chrome, nickel-silicone, Iron, Copper-nickel, copper
- types: Type K, Type-J, Type-T, Type KX,
- Insulation: FEP, PVC or Silicone rubber
- Temperatrure Range: -60℃ ~ +1000℃
- O.D Tolerance: ±0.2mm
- Color: Red, white, yellow, green, blue, black, transparent, yellow/grenen double-color, etc.
- Braiding: Fiberglass, Tinned copper, Nickel copper etc.
- AWG: 20, 22, 24, 26, 28, 30, 32.
- Note: we accept customer’s OEM requirement for any wire and cable.
- Application: These cable are used for temperature measurement and control systems in electric power, metallurgy, petroleum, chemical, textile of some factories and scientific research departments

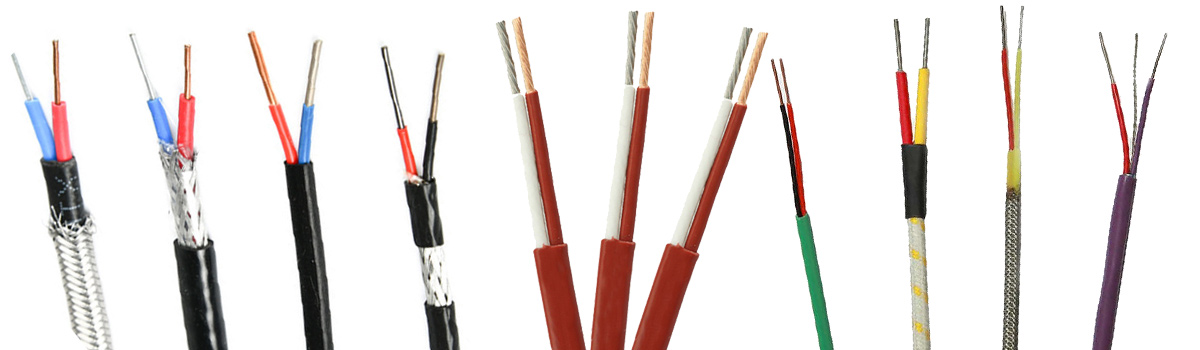

The parameter of thermocouple extension cable
| Calibration of thermocouple | Model number of Compensation cable | Alloy wire name of Compensation cable |
| S or R | SC or RC | Cu-CuNi |
| K | KC | Cu-CuNi |
| KX | NiCr-NiSi | |
| N | NC | Fe-CuNi |
| NX | NiCrSi-NiSiMg | |
| E | EX | NiCr-CuNi |
| J | JX | Fe-CuNi |
| T | TX | Cu-CuNi |
Range of Temperature Degree
| insulation | PTFE | PFA | TEF | FEP | PVC | FG | Silicone | Quartz Fiber |
| Max temp(°c) | 260 | 260 | 200 | 200 | 108 | 400 | 200 | 800 |
Mybe the following high-temp cable that you are looking for

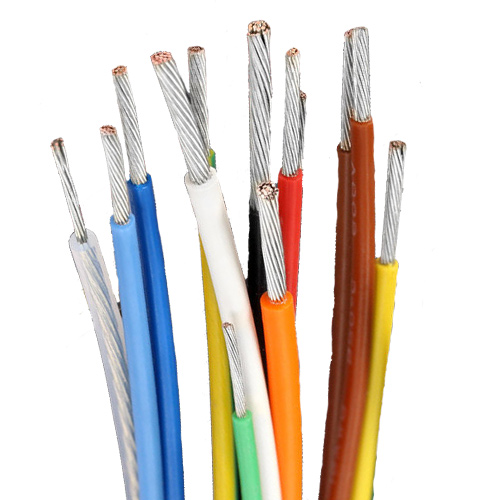

200~250°C FEP/PFA/PTFE Insulation High-Temp Cable
- Construction:
- Rate Voltage: 150V, 300V, 600V
- Conductor: Tinned, Silver or Nickel Copper
- Insulation: FEP, ETFE, PFA Teflon etc
- Temperatrure Range: -80℃ ~ +150℃/+200℃ or -80℃ ~ +250℃
- O.D Tolerance: Red, white, yellow, green, blue, black, transparent, double-color, etc.
- AWG: 20, 22, 24, 26, 28, 30, 32.
- Note: we accept customer’s OEM requirement for any wire and cable.
- Application: This insulated wire and cable caters for the use of electrical appliance working in the environment of high temperature, such as the cooker, air conditioner, oven, furnace, aviation device, military equipment, ocean ship, lighting, transformer, etc.

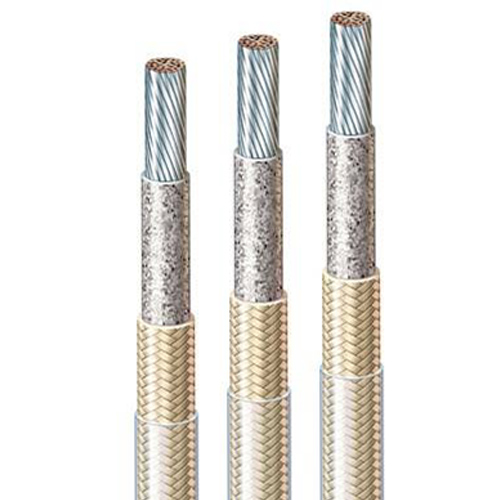

200℃ Silicone Rubber & Glassfiber Braided Insulated High-temp Wire
- Construction
- Rate Voltage: 600V
- Conductor: Tinned Copper
- Insulation: Silicone Rubber
- Pleach: Silicone +Fiberglass
- Temperature Range: -60℃ ~ +150/200℃ (UL3071) -60℃ ~ +200℃
- O.D Tolerance: ± 0.1mm
- Color: White, Blue, Red, Black, Brown, Yellow, Green, Transarent, Yellow/Green
- UL3605 AWG: 20, 18,17, 16, 14, 12, 11, 10, 8, 7, 5, 3, 2, 1/0, 2/0.
- UL3071 AWG: 14,16, 17, 18.
- Application: Used for heating source for lighting, electric machinery, air condiioning, oven, drying path, auto ignition, and household appliances etc.

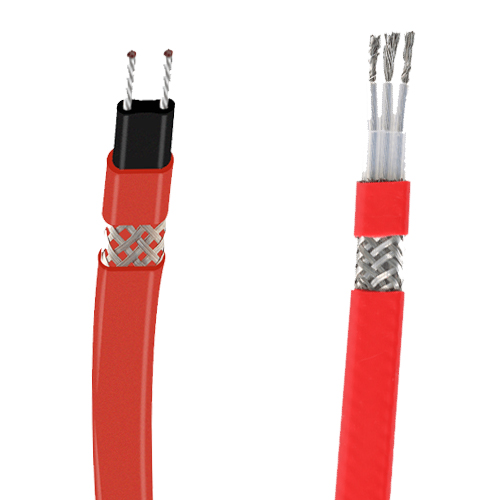

150~185°C Self-Regulating Heat Trace Cable
- Construction:
- Voltage: 208-277V, 110-120V
- Maximum maintaining Temperature: 65°C (150°F)
- Maximum Exposure Temperature: 85°C (185°F)
- Area classification: 1, Zone 2 (Gas), Zone 21, Zone 22 (Dust) and ordinary location
- Application: It is designed to provide pipe freeze protection and high-temperature maintenance for long lines applications.It is generally used in pipes and tanks.
Also, it is extremely flexible, even on irregular shapes such as on pumps, valves, and flanges. There are single-conductor, twin-conductor, and tri-conductor structure available.

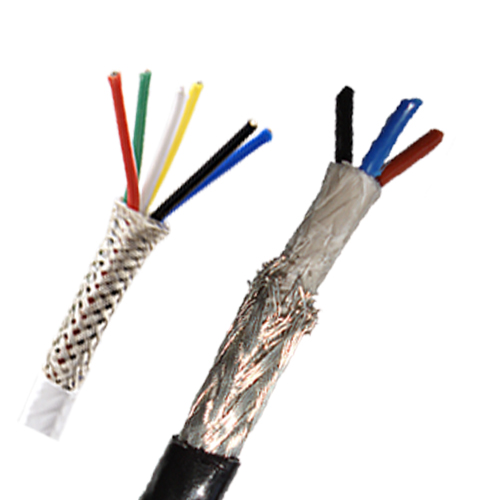

Multi-cores Shielded High-Temp Wire
- Construction:
- Rate Voltage: 600V
- Conductor: Tin/Sliver-plated copper/Nickel plated copper
- Core: Multi-core, 16-4/0 AWG PEP wire
- Insulation: PFA, ETFE, PTFE, Silicone Rubber
- Temperature Range: 130°C-150°C，180°C~ +200°C, 230°C~ +260°C
- Braid: Tinned copper wire
- Jacket: PTFE/PFA
- Color: white, blue, red, black, brown, yellow/green, Transparent, etc
- Type of thermocouple: S, R, B, K, E, J, T.
- Application: they are the same with the temperature connect wire for headlamp, Home application industrial machine, electrothermal products
