Description

Type P marine cable was designed and constructed for the demanding environments of offshore drilling and petroleum facilities use in a multitude of harsh environments both offshore and onshore. These cables are available in power, control, instrumentation, communication and VFD construction and built to be oil and abrasion resistant with great flexibility for easy installation. Huadong Cable Group’s Type P is flame retardant and we can offer Mud-Resistant and Fire-Resistant cable as well.

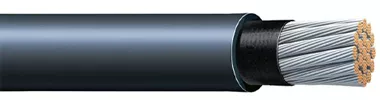

0.6/1kV 1-5Cores Unarmoured Flexible Copper Type P Marine Power Cable

1-core-Type-P-LV-Unarmoured-power-cable

  • Voltage: 0.6/1kV or 2kV
  • Cores: 1-5 cores
  • Conductor: flexible stranded tinned annealed copper wire
  • Insulation: XLPO
  • Armoured: Unarmoured
  • Sheath: NBR(Neoprene Type N)
  • Features: Resistant Oil, abrasion, moisture, petrochemical and sunlight.

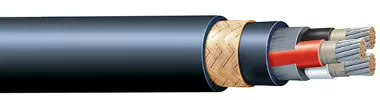

0.6/1kV 1-5Core Armoured Flexible Copper Type P Marine Power Cable

3-ore-Type-P-LV-armoured-power-cable

  • Voltage: 0.6/1kV or 2kV
  • Cores: 1-5 cores
  • Conductor: flexible stranded tinned annealed copper wire
  • Insulation: XLPO
  • Armored: copper wire braid
  • Sheath: NBR(Neoprene Type N)
  • Features: Resistant Oil, abrasion, moisture, petrochemical and sunlight.

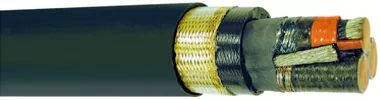

5kV-15kV MMV 3 Core Flexible Copper Type P Marine Power Cable

Type-P-MV-armoured-power-cable

  • Voltage: 5kV, 8kV, 15kV
  • Cores: 3 Core
  • Conductor: flexible stranded tinned annealed copper wire
  • Insulation: EPR(100%  &133% Insulation levels)
  • Armored: copper wire braid
  • Jacket/Sheath: NBR(Neoprene Type N)
  • Features: Resistant Oil, abrasion, moisture, petrochemical and sunlight.

Unarmoured IS+OS Shield Type P Marine Insturmentation Cable

unarmourd-instrument-cable

  • Voltage: 0.6/1kV
  • Size: 14~18AWG
  • Pairs: 2~24 Pairs or
  • Conductor: flexible stranded tinned annealed copper wire
  • Insulation: XLPO
  • Individual shield: AL/PS Tape W/Tinned Copper drain wire
  • Overall shield: AL/PS Tape W/Tinned Copper drain wire
  • Outer Sheath: NBR(Neoprene Type N)
  • Features: Resistant Oil, abrasion, moisture, petrochemical and sunlight.
  • Application: Designed for the demanding environments of offshore drilling and petroleum facilities

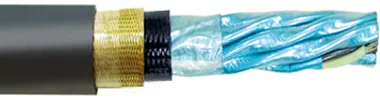

Pairs Individually Shield Armoured Type P Marine Instrmentation Cable

Pairs-armoured-instrument-cable

  • Voltage: 0.6/1kV
  • Size: 14~18AWG
  • Pairs: 1~24 Pairs or
  • Conductor: Tinned copper class 5
  • Pairs: tinned drain wire and polyester-backed aluminum foil tap
  • Insulation: Flame retardant polyolefin
  • Individual shield: AL/PS Tape W/Tinned Copper drain wire
  • Armored: Tinned copper basket weave wire
  • Outer Sheath: thermosetting compound
  • Application: Designed for the demanding environments of offshore drilling and petroleum facilities

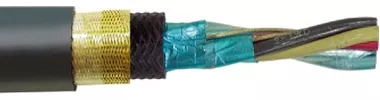

Triads Individually Shield Armoured Type P Marine Instrmentation Cable

Traid-armoured-instrument-cable

  • Voltage: 0.6/1kV
  • Conductor: tinned copper, class 5
  • Size AWG: 16-18AWG
  • Number of pairs: 1-12 pars
  • Insulation: Flame retardant polyolefin
  • Triads: tinned drain wire and polyester-backed aluminum foil tap
  • Jacket: chemical and thermosetting compound
  • Armor(Optional): Tinned copper basket weave wire
  • Sheath: chemical and thermosetting compound
  • Application: Designed for the demanding environments of offshore drilling and petroleum facilities

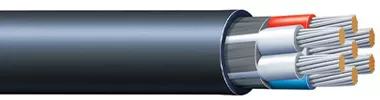

0.6/1kV Unarmouired Non-shield Type P Flexible Marine FR-Control Cable

unarmoured-control-cable

  • Voltage: 0.6/1kV
  • Cores: 2~60 cores
  • Size: 16~18AWG
  • Conductor: tinned copper class 5
  • Insulation: XLPO
  • Jacket: NBR(Neoprene Type N)
  • Features: Resistant Oil, abrasion, moisture, petrochemical and sunlight.

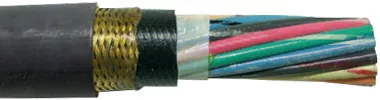

0.6/1kV Armoured Non-shield Type P Flexible Marine Control Cable

multicoe-contrp1-cable

  • Voltage: 0.6/1kV
  • Conductor: Flexible tinned copper wire Class 5
  • Cores: 2~60 cores
  • Size: 16~18AWG
  • Insulation: XLPO
  • Jacket/Sheath: NBR(Neoprene Type N)
  • Features: Resistant Oil, abrasion, moisture, and sunlight.

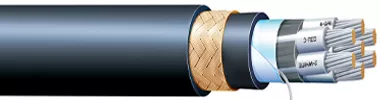

0.6/1kV Armoured Shield Type P Felxible Marine Control Cable

armoured-shield-control-cable

  • Voltage: 0.6/1kV
  • Conductor: Flexible tinned copper wire Class 5
  • Cores: 2~60 cores
  • Size: 16~18AWG
  • Insulation: XLPO
  • Shield: AL/PS Tape W/Tinned Copper drain wire
  • Jacket/Sheath: NBR(Neoprene Type N)
  • Features: Resistant Oil, abrasion, moisture, and sunlight.

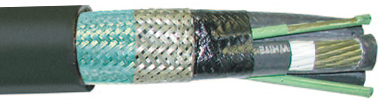

2kV Braid Shield Unarmoured Type P Flexible Marine VFD Cable

2kv-fd-cable

  • Voltage: 2kV
  • Conductor: tinned copper class 5
  • Cores: 3+3
  • Size: 3G x 4~18AWG
  • Insulation: XLPO
  • Ground Conductor: Tinned Copper wire
  • Overall Braid shield: tinned copper wire
  • Jacket/Sheath: NBR(Neoprene Type N)
  • Features: Resistant Oil, abrasion, moisture, and sunlight.

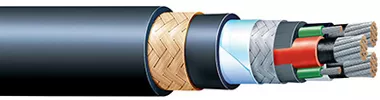

2kV Braid Shield Armoured Type P Flexible Marine VFD Cable

2kv-armoured-VFD-Cable

  • Voltage: 2kV
  • Conductor: tinned copper class 5
  • Cores: 3+3
  • Size: 3G x 4~18AWG
  • Insulation: XLPO
  • Ground Conductor: Tinned Copper wire
  • Overall Braid shield: tinned copper wire
  • Armoured: bronze wire braid
  • Jacket/Sheath: NBR(Neoprene Type N)
  • Features: Resistant Oil, abrasion, moisture, and sunlight.

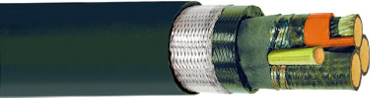

5/8kV Braid Shield Armoured Type P Felxible Marine VFD Cable

5-8kv

  • Voltage: 5-8kV
  • Conductor: tinned copper wire Class 5
  • Cores: 3+3
  • Size: 16~18AWG
  • Insulation: EPR
  • Insulation shield: tinned copper wire braid
  • Armoured: Overall tinned copper braid
  • Jacket/Sheath: thermosetting compound
  • Features: Resistant Oil, abrasion, moisture, and sunlight.
  • 0.6/1 kV Type P Power Cable Parameter
  • 5kV 3 Core Type P Power Cable Parameter
  • 2kV 3+3 Core Type P VFD Cable Parmater
Size Unarmored Armored (B) Armored and Sheath (BS) Ampacity
AWG mm2 Diameter (inches) Weight (lbs/ MFt.) Diameter (inches) Weight (lbs/ MFt.) Diameter (inches) Weight (lbs/ MFt.)
110°C 100°C 95°C
16 1.3 0.402 97 0.452 160 0.62 222 17 16 16
14 2.1 0.438 126 0.488 196 0.65 262 27 25 22
12 3.3 0.486 170 0.536 247 0.668 319 33 31 27
10 5.2 0.585 267 0.635 361 0.788 458 44 41 36
8 7.6 0.71 375 0.76 489 0.93 668 56 52 48
6 12.5 0.795 563 0.845 661 1.04 872 75 70 64
4 21 1.04 898 1.1 1066 1.295 1272 99 92 85
2 34 1.191 1358 1.241 1476 1.472 1734 131 122 113
1 43 1.37 1732 1.42 1817 1.61 2222 153 143 131
1/0 54 1.47 2042 1.52 2278 1.775 2642 176 164 152
2/0 70 1.61 2715 1.66 2807 1.914 3441 201 188 175
3/0 86 1.786 3234 1.836 3333 2.103 3781 234 218 202
4/0 109 1.985 4043 2.035 4376 2.304 4957 270 252 235
Size Unarmored Armored & Sheathed (BS) Ampacity DC Resistance at 25°C (ohms/1000 ft.) Grounding Conductor
AWG/kcmil mm2 Diameter (inches) Weight (Lbs./ 1000 ft.) Diameter (inches) Weight (Lbs./ 1000 ft.) In Free Air (amps)
6 12.5 1.294 918 1.539 88 0.445 6
4 21 1.469 1252 1.773 1371 116 0.3 6
2 34 1.615 1620 1.935 1847 152 0.184 6
1 43 1.746 1942 2.045 2299 175 0.147 4
1/0 54 1.845 2257 2.149 2646 201 0.117 4
2/0 70 1.996 2744 2.3 2994 232 0.093 4
3/0 86 2.081 3110 2.398 3540 266 0.074 3
4/0 109 2.222 3714 2.539 3966 306 0.058 3
262 132 2.41 4486 2.789 4614 348 0.048 3
313 159 2.488 4599 2.867 5614 386 0.04 2
373 189 2.659 5825 3.038 5760 429 0.034 2
444 227 2.892 6946 3.27 7061 455 0.028 1
535 273 3.036 7961 3.415 8297 528 0.024 1
646 326 3.249 9274 3.627 9317 584 0.02 1
Size mm2 Nominal Diameter (Inches) Weight (Lbs./ 1000 Ft.) Ampacity DC Resistance at 25°C (Ohms/1000 Ft.) AC Resistance at 90°C, 60Hz Voltage Drop (Volts/Amp/ 1000 Ft.) Green Insulated Ground Conductor (3x) Size (AWG)
AWG/kcmil In Free Air (Amps) Single Banked in Trays (Amps)
6 12.5 1.815 1814 88 75 0.445 0.556 0.82 10
4 21 2.028 2391 116 99 0.3 0.376 0.564 10
2 34 2.174 2879 152 129 0.184 0.23 0.359 10
1 43 2.29 3387 175 149 0.147 0.184 0.294 8
1/0 54 2.356 3551 201 171 0.117 0.147 0.242 8
2/0 70 2.477 4053 232 197 0.093 0.117 0.199 8
3/0 86 2.588 4609 266 226 0.074 0.094 0.166 6
4/0 109 2.815 5393 306 260 0.058 0.075 0.139 6
262 132 2.968 6218 348 296 0.048 0.063 0.121 6
313 159 3.166 7126 386 328 0.04 0.053 0.106 6
373 189 3.289 8121 429 365 0.034 0.045 0.094 4
444 227 3.437 9035 455 387 0.028 0.039 0.085 4
535 273 3.735 10585 528 449 0.024 0.033 0.076 4
  • 0.6/1kV Type P Pairs Instrumentation Cable
  • 0.6/1kV Type P Triads Instrumentation Cable
  • 0.6/1kV Type P Control Cable
Size Number Unarmored Armored (B) Armored and Sheath (BS)
AWG Pairs Diameter (inches) Weight (lbs/MFt.) Nominal Diameter (inches) Weight (lbs/MFt.) Diameter (inches) Weight (lbs/MFt.)
18 8 0.782 342 0.832 468 1.027 607
18 12 0.99 533 1.04 692 1.261 1089
18 16 1.093 661 1.143 843 1.338 1325
18 18 1.23 776 1.28 973 1.488 1216
18 24 1.442 958 1.492 1194 1.758 1564
16 8 0.885 448 0.935 589 1.114 724
16 10 1.03 763 1.08 736 1.289 1222
16 12 1.065 631 1.115 808 1.31 1014
16 16 1.175 806 1.225 1049 1.396 1237
16 18 1.259 901 1.309 1112 1.504 1317
16 24 1.472 1120 1.522 1361 1.755 1685
14 4 0.736 324 0.786 440 0.991 799
14 5 0.772 392 0.822 515 1.031 678
14 8 0.956 548 1.006 736 1.18 911
14 12 1.205 851 1.255 1037 1.45 1275
Size Number Unarmored Armored (B) Armored and Sheath (BS)
AWG Pairs Nominal Diameter (inches) Weight (lbs/MFt.) Nominal Diameter (inches) Weight Diameter (inches) Weight (lbs/MFt.)
18 1 0.354 69 0.404 160 0.557 167
18 2 0.649 204 0.702 303 0.876 430
18 3 0.703 236 0.753 345 0.927 477
18 4 0.775 316 0.825 398 0.975 594
18 5 0.889 353 0.939 497 1.113 658
18 7 0.957 461 1.007 614 1.202 785
18 8 1.025 589 1.075 735 1.14 900
18 12 1.221 792 1.271 990 1.642 1195
16 1 0.376 81 0.426 206 0.579 265
16 3 0.76 366 0.81 411 1.018 571
16 4 0.82 410 0.87 457 1.001 646
16 6 0.95 628 1 791 1.198 1024
16 7 1.029 524 1.079 688 1.248 1026
16 8 1.108 684 1.158 793 1.312 1101
Size Number Unarmored Armored (B) Ampacity
AWG Conductors Diameter (inches) Weight (lbs/MFt.) l Diameter (inches) Weight (lbs/MFt.) 110°C 100°C 95°C
16 8 0.581 202 0.631 289 12 11 11
16 10 0.635 251 0.685 322 9 8 11
16 16 0.72 333 0.77 441 9 8 11
16 20 0.786 382 0.836 514 9 8 11
16 24 0.9 549 0.95 646 8 7 11
14 10 0.69 327 0.74 403 14 13 15
14 12 0.714 356 0.764 449 14 13 15
14 14 0.76 417 0.81 549 14 13 15
14 20 0.935 598 0.985 708 14 13 15
14 24 1.025 721 1.075 829 12 11 15
12 4 0.516 201 0.566 247 33 31 27
12 5 0.561 226 0.611 315 27 25 22
12 6 0.611 282 0.661 397 27 25 22
12 10 0.77 434 0.82 509 17 16 19
12 20 1.02 805 1.07 942 17 16 19
12 24 1.135 1033 1.185 1162 15 14 19
