Application & Features
Type SEOOW & SJEOOW Flexible Cords — 600 Volt and 300 Volt, 105°C Flexible Cord. Premium Oil Resistance, Sunlight, Water Resistance and Flame Retardant, UL / CSA listed. Type SEOOW & SJEOOW Flexible Cords are permitted for indoor and outdoor temporary power uses, portable industrial machinery and compressors, food processing and washdown facilities. Type SEOOW & SJEOOW Cords are suitable for use in temperatures between -60°C to maximum 105°C.

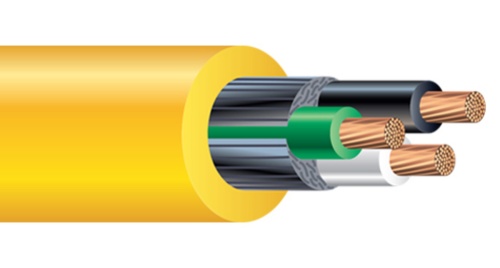

Construction
- Flexible stranded copper conductors
- Color coded TPE rubber insulation cabled with fillers as needed.
- A separator applied over conductors and fillers.
- Overall TPE Rubber jacket
Standards
- UL 62 Flexible Cords and Cables
- CSA C22.2 No. 49 Flexible Cords and Cables
- Passes CSA FT2 Flame Test
- RoHS-2 (European Directive 2011/65/EU)
- NEC Article 400 Flexible Cords, Cables and Fixture Wire
- NEC Article 501.140 Class I Division 2
| Size (AWG or kcmil) | No. of Conductors | No. of Strands | Nom. OD (mils) | Nominal Total Weight (lbs/1000′) | Conductor Colors |
| 16 AWG | 5 | 26 | 503 | 132 | BLACK/WHITE/RED/GREEN/ORANGE |
| 16 AWG | 10 | 26 | 638 | 212 | |
| 16 AWG | 12 | 26 | 691 | 258 | |
| 12 AWG | 3 | 65 | 592 | 185 | BLACK/WHITE/GREEN |
| 12 AWG | 3 | 65 | 592 | 185 | BLACK/WHITE/GREEN |
| 10 AWG | 7 | 104 | 845 | 469 | BLACK/WHITE/RED/GREEN/ORANGE/BLUE/WHITE-BLACK |
