Type ST, STO, STOO, STOW, STOOW Flexible Cord UL62 Certified
Power cords can be used in overhead, exposed, or even direct-burial applications and are most commonly used in the electric utility, industrial, and commercial markets.
Type ST
S = Service Grade;T = Thermoplastic; Hard service cord with all thermoplastic construction.
Type STO
Same as ST, but with oil-resistant thermoplastic outer jacket.
Type STOO
Same as STO but conductor insulation and jacket BOTH oil resistant
Type STOW
Same as STO, but weather-resistant rated.
Type STOOW
Same as STOW but conductor insulation and jacket BOTH oil resistant

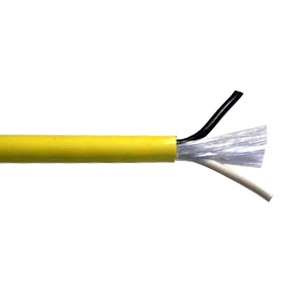

Type ST FLEXIBLE PORTABLE CORD 600V CABLE
Conductor: Annealed stranded bare copper per ASTM B-174
Insulation: Thermoplastic PVC
Jacket: Yellow PVC (other colors available upon request)
Compliances: UL Listed / CSA Certified / RoHS Compliant
Temperature Rating: -20ºC to +105ºC
600V Type STO & STOW FLEXIBLE PORTABLE CORD
Conductor: Annealed stranded bare copper per ASTM B-174
Jacket: Oil-Resistant PVC Rubber Jacket color-coded according to NEC.
Cabling: Conductors are assembled round with fillers as needed. A seperator is applied over the assembly.
Standards: UL Listed / CSA Certified / MSHA Approved
600V Type STOOW FLEXIBLE PORTABLE CORD
Conductor: stranded bare copper
Insulation: Heat, moisture, and oil resistant resistant PVC
Filler and Binder: Fillers as needed to make core round and binder as needed to keep core assembly round on certain constructions
Jacket: Sunlight, heat, moisture, and oil resistant PVC
Standards: UL Listed / CSA Certified
Type ST Cord Parameter
Type STO Cord Parameter
Type STOW Cord Parameter
Type STOOW Cord Parameter
AWG
# of Cond..
Stranding
Insul.Thickness (in)
Jacket Thickness(in)
Nom.OD (in)
18
2
16/30
0.03
0.06
0.345
18
3
16/30
0.03
0.06
0.361
18
4
16/30
0.03
0.06
0.39
16
2
26/30
0.03
0.06
0.369
16
3
26/30
0.03
0.06
0.387
16
4
26/30
0.03
0.06
0.419
14
2
41/30
0.045
0.08
0.501
14
3
41/30
0.045
0.08
0.526
14
4
41/30
0.045
0.08
0.569
12
2
65/30
0.045
0.095
0.573
12
3
65/30
0.045
0.095
0.601
No of Cond.
Size AWG
Stranding
Approx Weight Lbs./Mft.
2
18
16/30
73
3
18
16/30
77
4
18
16/30
103
2
16
26/30
75
3
16
26/30
91
4
16
26/30
109
2
14
41/30
130
3
14
41/30
160
4
14
41/30
194
2
12
65/30
175
3
12
65/30
216
4
12
65/30
263
2
10
104/30
232
3
10
104/30
278
4
10
104/30
340
3
8
65/.016
420
4
8
65/.016
470
3
6
133/.014
600
4
6
133/.014
800
Gauge
Conductors
Stranding
Material Weight (Lbs./M’)
16
3
26/30
83
16
4
26/30
101
14
3
41/30
148
14
4
41/30
178
12
3
65/30
198
12
4
65/30
242
10
3
104/30
254
10
4
104/30
317
Cond. Size
Cond. Number
Cond. Strands
Approx. Weight
AWG/Kcmil
No.
No.
lb/1000ft
16
3
26
87
16
3
65
92
16
3
65
92
16
3
26
89
16
3
26
89
16
4
26
104
16
5
65
143
16
6
65
166
16
8
65
200
16
8
65
217
16
10
65
232
16
12
65
279
14
3
41
146
14
3
41
146
14
3
41
155
14
3
41
158
14
3
41
156
12
3
65
195
12
3
65
210
12
4
65
246
10
3
105
262
10
3
105
265
10
4
104
304
