Subsea/Underwater Umbilical Cable & Umbilical Cable Connector

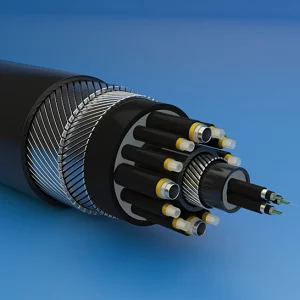

Umbilical cable is an important facility in the subsea production system for the offshore oil exploitation. It provides a control and communication link between the surface vessel and the subsea equipment. The umbilical cable is a composite structure that is composed of multiple components and various materials. A typical umbilical cable usually consists of tubes or hoses, optical fibre cables, electrical cables, inner sheaths and fillers which are assembled into an inner core. Steel armor wires are used to provide the tension capability or to achieve the necessary stability. The outer sheath provides protection for the inner components (ISO, 2009). Umbilical cables should maintain sufficient tension stiffness to withstand large loads induced by self-weight, wave and the motion of the surface vessel, which leads to an urgent requirement for the prediction of the mechanical behaviour.

Umbilical Cable Connector description

The umbilical connector carries power and communications between the subsea unit and topside unit. It is a wet-mateable subsea connector which is designed to be made and broken in wet conditions topside. It should not be disconnected subsea.

The deck integration cable can be connected directly to this connector to test and configure the system before an umbilical or subsea whip is connected for deployment subsea. Ensure that the orientation of the missing pin is correctly aligned when mating the plug and socket. If the connectors are mis-aligned and the connection is forced together then damage may occur to the plug, socket or whole unit.

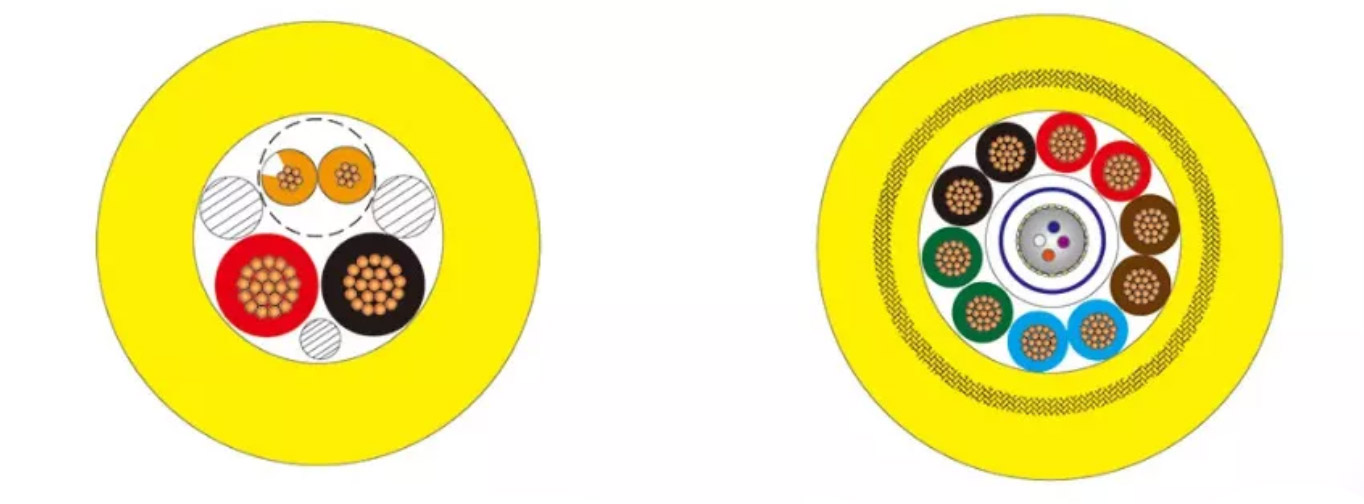

Umbilical cable for ROV

• Fiber : G652D
• Fiber Count : 1~20cores
• Electric Unit : 4 x 3 x 4m2 (category 5)
• Inner sheath : Black HDPE
• Outer armoure : Galvanised steel wire(GSW)
• Outer sheath : Black HDPE
• Applications: used for early warning and monitoring
• of coastal waters and ports.
• Features: longitudinal water-ingress proof cable core section
• good flexibility, excellent repeated bending performance, retractable in numerous times
• transmission of both optical signals and power feeding
• Double HDPE layers, excellent redial water blocking performance

Get Quote

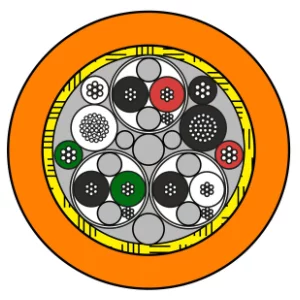

12 Cores Umbilical Cable

• Description: 2×0,8 mm² (2×18 AWG) Power conductors
• Strength member: Vectran fiber braid
• Outer jacket: Orange polyurethane (1,5 mm)
• Outside diameter: Ø 12,2 mm
• Electrical resistance conductors 18 AWG: < 19,50 ohm/km @ 20°C
• Working voltage: 250 V
• Weight in air: 155 kg/km
• Weight in fresh water: 38 kg/km
• Weight in sea water: 35 kg/km
• Breaking strength: 1500 kg
• Working load max.: 375 kg
• Static bending radius min.: 61 mm
• Dynamic bending radius min.: 122 mm
• Operating temp -40°c – +90 °C
• Length available up to 1000 m

Get Quote

Technical of umbilical cable connector
