Huadong Cable Group design rubber h01n2 d welding cable for the transmission high currents from electric welding machines to the welding tool on manually or automatically operated line and spot welding machines.
Structure

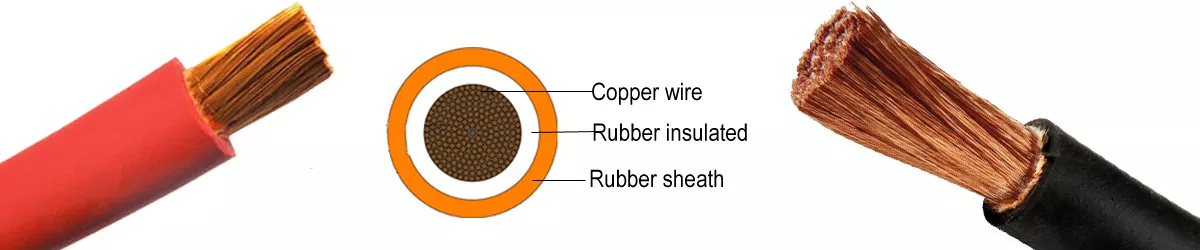

- Conductor: bare annealed copper flexible conductor for class 5
- Insulated: flexible Single or double insulation of rubber
- Sheath: flexible PVC/rubber

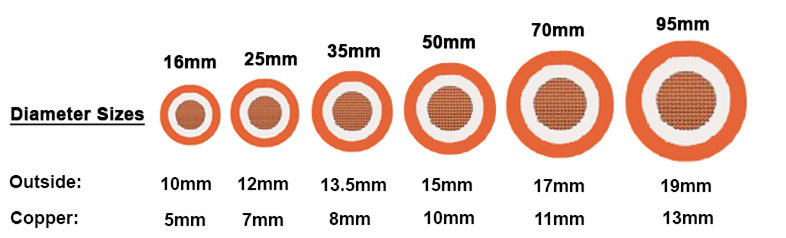

- No.Cross-section: 10mm2, 16mm2, 25mm2, 35mm2, 50mm2, 70mm2, 95mm2, 120m2, 150mm2, 185mm2.
- ASTM Standard AWG Size: 6awg, 4awg, 2awg, 1awg, 1/0awg, 2/0awg, 3/0awg, 4/0awg, 250awg, 350awg, 500awg.
- Color: Choice of Black, Orange, Red or Yellow Blue jacket, single & double insulated.
- Standard: IEC60245, ASTM, VDE, DIN etc.according to the other standards required by the customer.
| Model | Name | Main applications | Working temperature of core ≤0C |
| 60245-81(YH) | Natural Rubber Sheath for Welding Cable | Always used indoor | 65 |
| 60245-82(YHF) | Neoprene Rubber Sheath Welding Cable | Always used outdoor | 65 |
Application of H01n2 d welding cable
These cables are used as a connection to welding robots in the automotive industry, transport adn conveyor system shipyards and for manually / automatically operated lines and spot welding.
The robust cable structure makes them resistant to low and high temperatures, ozone and radiation, oils, acids, fats and petrols.
h01n2 d Welding Cable Parameter to ASTM Standard
| (AWG) | Nominal stranding | Nominal overall diameter | Max.conductor resistance at 20℃(Ω/km) | ||
| AWG | mm | inch | mm | ||
| 6 | 259/30 | 259/0.254 | 0.43 | 10.92 | 1.33 |
| 4 | 418/30 | 418/0.254 | 0.475 | 12.07 | 0.84 |
| 2 | 646/30 | 646/0.254 | 0.54 | 13.72 | 0.53 |
| 1 | 836/30 | 836/0.254 | 0.58 | 14.73 | 0.42 |
| 1/0 | 1032/30 | 1032/0.254 | 0.615 | 15.62 | 0.33 |
| 2/0 | 1290/30 | 1290/0.254 | 0.655 | 16.64 | 0.26 |
| 3/0 | 1672/30 | 1672/0.254 | 0.72 | 18.29 | 0.21 |
| 4/0 | 2066/30 | 2066/0.254 | 0.78 | 19.81 | 0.17 |
| struction | Conductor Resistance | Current Carrying Capacity | Operating Capacity | |
| 20℃ | Current Rating For Single Cycle Operatuon Over A Maximum Period Of 5 Minutes (Amps) | |||
| No.xmm2 | Ω/km | 1 | 0.85 | 0.6 |
| 10 | ≤1.91 | 100 | 103 | 108 |
| 16 | ≤1.21 | 135 | 145 | 175 |
| 25 | ≤0.78 | 180 | 195 | 230 |
| 35 | ≤0.554 | 225 | 245 | 290 |
| 50 | ≤0.386 | 285 | 305 | 365 |
| 70 | ≤0.272 | 355 | 385 | 460 |
| 95 | ≤0.206 | 430 | 470 | 560 |
| 120 | ≤0.161 | 500 | 540 | 650 |
| 150 | ≤0.129 | 580 | 630 | 750 |
