Huadong Cable Group‘s marine Cables are proven effective, safe, long-lasting, and reliable in various challenging conditions such as corrosion, moisture, salty water, oil, heat, etc. All cables we designed to meet all product quality and safety requirements such as JIS C3410, IEC 60092, and NEK606 standards. It passed ABS, CCC, UL classifications. Being a professional marine cable manufacturer, Huadong cable can manufacture a wide range of cables for your specific requirements.

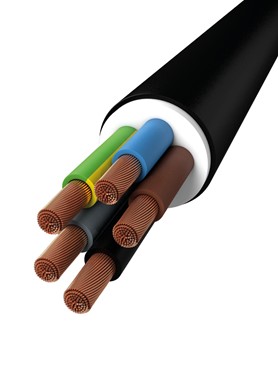

XZ1-K (AS) Marine Cable
- Voltage: 0.6/1KV
- Conductor: Electrolytic annealed copper conductor, class 5 according to IEC 60228
- Insulation: Cross-linked polyethylene insulation, type HF XLPE-90 ºC according to IEC 60092-351.
- Assembly: The cores are twisted together
- Filler: If needed, the filler is thermoplastic polyolefin of natural colour with low smoke and halogen free under fire conditions.
- Outer sheath: Thermoplastic polyolefin, black colour, with low smoke and halogen free under fire conditions, type SHF1 according to IEC 60092-359.
- Applications: For fixed installations on ships and offshore units in all locations. All cable materials are free of halogens, with low fumes emission and fire retardant. These cables are especially suitable for the installation in ships in power, lighting and control circuits.

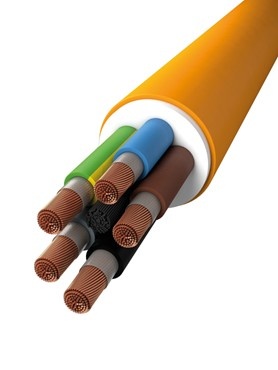

XZ1-K (AS+) Marine Cable
- Voltage: 0.6/1KV
- Conductor: Flexible bare copper wires Class V Acc. to UNE-EN 60228
- Insulation: Mica tape + HF XLPE-90°C (IEC 60092-360)
- Assembly: Insulated conductors laid up together in concentric layers
- Outer sheath: Halogen-free compound SHF1 (IEC 60092-360)
- Colour: Orang
- Application: Flexible power and control cable for fixed installations in ships and offshore units. Especially recommended when a good fire
performance is required and the integrity of the circuit must be guarantee in case of fire

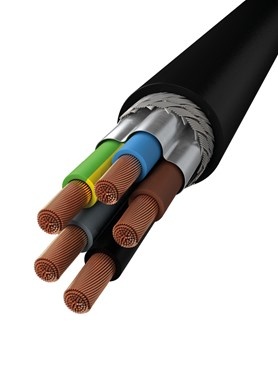

XTCuZ1-K (AS) Marine Cable
- Voltage: 0.6/1KV
- Conductor: Electrolytic annealed copper conductor, class 5 according to IEC 60228
- Insulation: Cross-linked polyethylene insulation, type HF XLPE-90 ºC according to IEC 60092-360
- Assembly of cores: The cores are twisted together.
- Inner covering: Halogen free material and compatible with others components. Aluminium-polyester tape.
- Braid/Armour: Outer sheath: Thermoplastic polyolefin, black colour, with low smoke and halogen free under fire conditions, type SHF1 according to IEC 60092-360.
- Outer sheath: Halogen-free, flame retardant, polyolefin based compound (SHF 1).
- Applications: For fixed installations on ships and offshore units in all locations. Cables for power circuits where shielding is required or areas that require additional protection against possible shock.

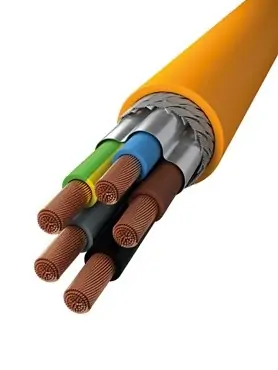

XTCuZ1-K (AS+) Marine Plus Cable
- Voltage: 0.6/1KV
- Conductor: Electrolytic copper, class 5 (fexible), based on EN 60228.
- Insulation:Mica Tape + LSZH XLPE 90ºC
- Armour: Coverage of 100% composed by an aluminium-polyester tape and a tinned copper braid.
- Outer sheath: LSZH polyolefn outer sheath SHF1 type. Orange colour, non-toxic, fre retardant and fire resistant.
- Applications: 1 Marine use. 2 Public places.
XTCuZ1-K (AS+) with bedding Marine Cable
- Voltage: 0.6/1KV
- Conductor: Electrolytic copper, class 5 (fexible), based on EN 60228 and IEC 60228.
- Insulation: Mica Tape + LSZH XLPE 90ºC.
- Armour bedding: LSZH polyolefn inner sheath.
- Armour: Coverage of 100% composed by an aluminium-polyester tape and a tinned copper braid.
- Outer sheath: LSZH polyolefn outer sheath SHF1 type. Orange colour, non-toxic, fre retardant and fire resistant.
- Applications: 1 Marine use. 2 Public places.

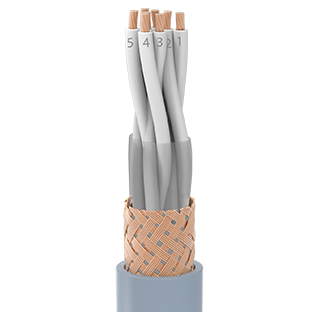

FA2XCH/FM2XAH/FM2XAAF Control Marine Cable
- Conductor: Electrolytic, stranded, annealed copper wire IEC 60228 Class 2 (Class 5 and / or tinned on request)
- Insulation: Cross linked polyethylene compound (XLPE).
- Inner Covering: Separating foil.
- Outer sheath: Halogen-free, flame retardant, polyolefin based compound (SHF 1).
- Color: Black or Grey
- Marine Cable XZ1-K (AS)
- Marine Cable XTCuZ1-K (AS)
| nº x Section (mm2) | Diameter (mm) | Weight (Kg/Km) |
| 4 x 1,5 | 9,7 | 140 |
| 4 x 2,5 | 10,6 | 185 |
| 4 x 4 | 12,1 | 262 |
| 4 x 6 | 13,5 | 351 |
| 4 x 10 | 16,0 | 544 |
| 4 x 16 | 18,7 | 802 |
| 4 x 25 | 23,7 | 1.271 |
| 4 x 35 | 25,9 | 1.69 |
| 4 x 50 | 31,3 | 2.396 |
| 4 x 70 | 35,8 | 3.284 |
| 4 x 95 | 40,6 | 4.282 |
| 4 x 120 | 44,8 | 5.391 |
| 4 x 150 | 50,2 | 6.748 |
| 4 x 185 | 56,5 | 8.262 |
| 4 x 240 | 63,7 | 10.763 |
| 5 x 1,5 | 10,4 | 165 |
| 5 x 2,5 | 11,8 | 229 |
| 5 x 4 | 13,3 | 315 |
| 5 x 6 | 15,0 | 431 |
| 5 x 10 | 17,7 | 670 |
| 5 x 16 | 20,8 | 991 |
| 5 x 25 | 25,9 | 1.554 |
| 5 x 35 | 29,1 | 2.095 |
| 5 x 50 | 34,5 | 2.942 |
| 7 x 1,5 | 11,4 | 204 |
| 7 x 2,5 | 13,0 | 284 |
| 10 x 1,5 | 13,4 | 277 |
| 12 x 1,5 | 14,3 | 326 |
| 12 x 2,5 | 17,2 | 477 |
| 14 x 1,5 | 15,4 | 333 |
| 16 x 1,5 | 16,6 | 384 |
| 19 x 1,5 | 17,3 | 435 |
| 19 x 2,5 | 20,3 | 632 |
| 24 x 1,5 | 19,5 | 542 |
| 27 x 1,5 | 20,7 | 601 |
| 27 x 2,5 | 24,3 | 876 |
| nº x Section (mm2) | Diameter (mm) | Weight (Kg/km) |
| 4 x 1,5 | 10,2 | 150 |
| 4 x 2,5 | 11,2 | 200 |
| 4 x 4 | 12,6 | 270 |
| 4 x 6 | 14,6 | 390 |
| 4 x 10 | 17,1 | 575 |
| 4 x 16 | 19,8 | 825 |
| 4 x 25 | 24,0 | 1.22 |
| 4 x 35 | 26,3 | 1.62 |
| 4 x 50 | 31,7 | 2.255 |
| 4 x 70 | 36,6 | 3.155 |
| 4 x 95 | 41,5 | 4.09 |
| 4 x 120 | 45,6 | 5.095 |
| 4 x 150 | 51,0 | 6.33 |
| 4 x 185 | 57,4 | 7.7 |
| 4 x 240 | 64,5 | 9.945 |
| 5 x 1,5 | 10,9 | 180 |
| 5 x 2,5 | 12,3 | 240 |
| 5 x 4 | 14,4 | 360 |
| 5 x 6 | 15,9 | 470 |
| 5 x 10 | 18,6 | 700 |
| 5 x 16 | 21,7 | 1.01 |
| 5 x 25 | 26,3 | 1.515 |
| 5 x 35 | 29,5 | 2.025 |
| 5 x 50 | 34,9 | 2.81 |
| 7 x 1,5 | 11,9 | 220 |
| 7 x 2,5 | 14,0 | 335 |
| 10 x 1,5 | 14,5 | 330 |
| 12 x 1,5 | 15,2 | 370 |
| 12 x 2,5 | 18,1 | 520 |
| 14 x 1,5 | 16,2 | 420 |
| 16 x 1,5 | 17,5 | 475 |
| 19 x 1,5 | 18,2 | 530 |
| 19 x 2,5 | 21,1 | 745 |
| 24 x 1,5 | 20,4 | 665 |
| 27 x 1,5 | 21,6 | 720 |
| 27 x 2,5 | 25,4 | 1.025 |
| 37 x 1,5 | 24,1 | 945 |
