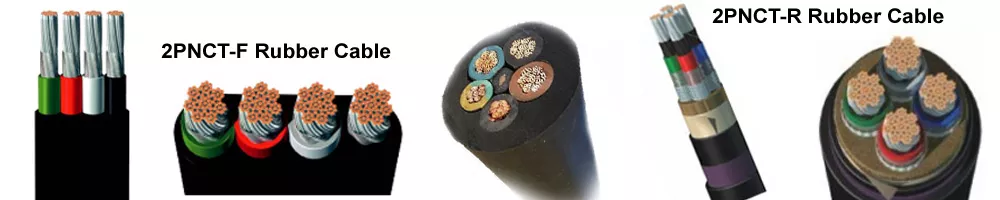

Construction decription of PNCT Rubber Cable
- Voltage: 600/1000V, 3000V Or other
- Color: Black or by request.
- Conductor: Flexible Copper/Tinned Copper
- Insulation: Rubber/EPR
- Cores: 1,2, 3, 4, 5, 6, 7, 8 Core and more cores
- Application: the the application ranges high tension unloader, impact resistance, Stacker & Reclaimer Abrasion Resistance Gantry, Craneetc.
- Standard: JIS C3327/IEC/VDE etc
- Packaging: Iron or Wooden Drum
Learn More Flexible Rubber Cable
- Flexible PVC/Rubber Sheath Welding Cable
- Waterproof Subermersbile Pump Cable
- Resistance Oil and Water SJOOW/SOOW/SJO Cable
- H07RN-F Heave Duty Mobile Equipmen Rubber Cable
- SJOOW/SOOW/SJO Cable
- Trailing Cable with Optica Fiber Composite Cable
- Reeling/Festoon Crane Cable
- Welding Cable
- Pendant Hoist Cable
- Spreader Hoist Cable
- PNCT Rubber Cable Used for Machine Equipment
- Rubber Cable Products List

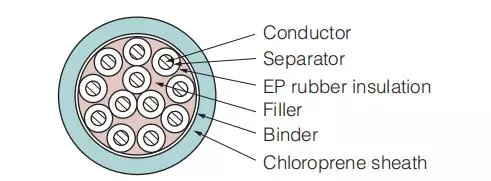

The Feature of CUR-2PNCT (Festoon System)
- High flexibility and bending resistance.(however, not suitable for applications where cables are subjected to lateral pressure, such as carrier drum system)
The Feature of CAR-2PNCT (Carrier DrumSystem)
- – High resistance to lateral pressure.
- – Reduced cable corkscrewing by making rubber sheath solidal structure.
- – Robust type of chloroprene is used as sheath.

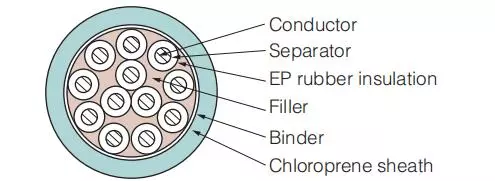

The Feature of RE-2PNCT (Carrier Drum System)
- – High resistance to lateral pressure.
- – Reduced cable corkscrewing by making rubber sheath solidal structure.
- – Robust type of chloroprene is used as sheath.

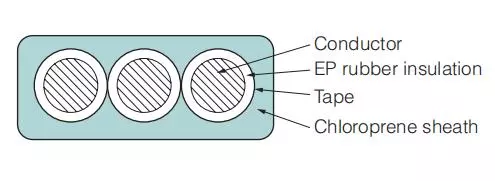

The Feature of H-2PNCT (Reel System)
- – High resistance to lateral pressure and wear.
- – Robust type of chloroprene is used as sheath.
- – Weather Resistance, Flame Retardance,Bending Resistance
- – Suitable for Unloader, Stacker & Reclaimer, Crane, etc

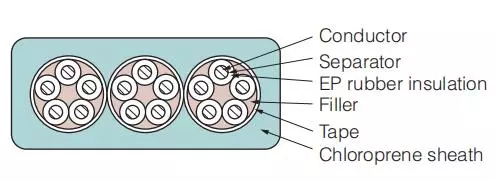

The Feature of SK-2PNCT (Festoon System)
- – High flexibility and bending resistance. (however, not suitable for reeling system)
- – More efficient cable installation because of its smaller bending radius than those of round cable.

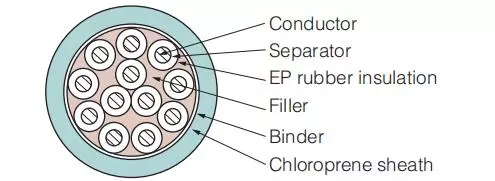

The Feature of TOR-2PNCT (Torsion System)
- – High torsion resistance.
- – Improved slipping performance between cores by individually taping on each core.
0.6/1KV HT-PNCT-F Rubber Cable Parameter Sheet
| Number | Conductor Composition | Outer Diameter | Thickness of Insulation | Thickness of Sheath | Insulation Resistance (20)(Min.) | Weight |
| Corexsqmm | Max./mm | mm | mm | mm | km | kg/km |
| 3×16 | 0.26 | 6 | 1.2 | 2.3 | 300 | 930 |
| 3×25 | 0.26 | 7.4 | 1.2 | 2.5 | 300 | 1290 |
| 3×35 | 0.26 | 8.7 | 1.2 | 2.7 | 200 | 1650 |
| 3×50 | 0.26 | 10.4 | 1.5 | 3 | 200 | 2290 |
| 3×95 | 0.26 | 14.5 | 2 | 3.7 | 200 | 4170 |
| 3×120 | 0.26 | 16.2 | 2 | 4 | 200 | 5090 |
| 3×150 | 0.26 | 18.2 | 2 | 4.2 | 200 | 6150 |
| 3×185 | 0.26 | 20.2 | 2.5 | 4.6 | 200 | 7710 |
| 4×25 | 0.31 | 7.4 | 1.2 | 2.7 | 300 | 1790 |
| 4×35 | 0.31 | 8.7 | 1.2 | 2.9 | 200 | 2290 |
| 4×50 | 0.31 | 10.4 | 1.5 | 3.2 | 200 | 3160 |
| 4×95 | 0.31 | 14.5 | 2 | 4 | 200 | 5720 |
| 4×120 | 0.31 | 16.2 | 2 | 4.3 | 200 | 6980 |
| 4×150 | 0.31 | 18.2 | 2 | 4.6 | 200 | 8450 |
| 4×185 | 0.31 | 20.2 | 2.5 | 5.1 | 200 | 10690 |
