XHHW-2 MC-HL Or Cu/XLPE/MC PVC Cable
- Voltage: 0.6/1KV
- Conductor: Bare,Annealed, Standed Copper Conductor
- Core: 2,3,4,5 and other.
- Insulation: XLPE
- Amoured: Aluminum Welded Corrugated Armour
- Sheath: PVC
- Specification: IEC60502-1, ICEA S-95, UL 44
- AWG: 1/0,2/0,4/0,4,6,8,10,12,14,16AWG
- MCM: 250,350,500,750, 1000MCM
- Application: Indoor and outer door(wet or dry location), Branch circuits for power, ligting, control and signaling, as aerial cable on a messenger, installation direct burial.

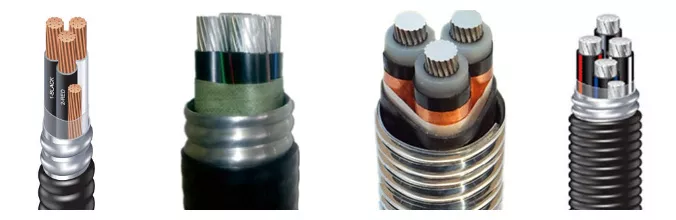

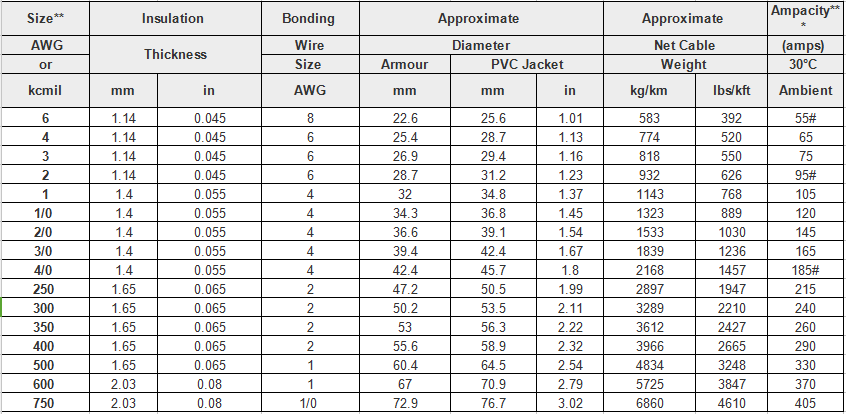

ACWU90 (–40°C) XLPE 600 Volts 90°C
- Standard: CSA C22.2 N° 51
- Conductor material: Aluminum/Aluminum Alloy
- Armoured: Interlocked Armored with Aluminum Alloy/Unarmoured
- Maximum operating voltage: 600V
- Maximum operating temperature: 90°C
- Application: For exposed and concealed wiring in dry or wet locations and where exposed to the weather.For use in ventilated, non-ventilated and ladder type cable trays in wet and dry locations.
- For direct earth burial (with protection as required by Inspection Authority).
- For service entrance above or below ground.
- For use in hazardous locations with approved connectors.
