Application: the crane cable is a term used to cover a range of specialist cables powering and controlling cranes, hoists, festoons, conveyors and gantries. Used across heavy industry including mining and marine, they must be robust and capable of handling both torsional and tensile stresses simultaneously.
Recommended common cables for large machinery

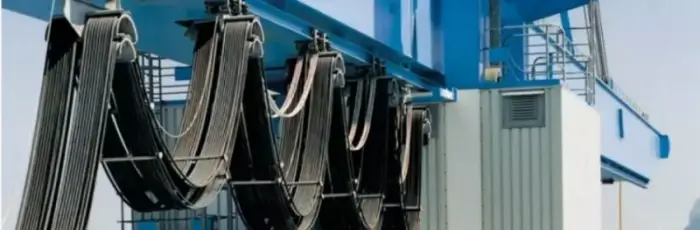

PUR-HF Low Voltage Chain Festoon Cable
- Voltage Rating (Uo/U): 0.6/1kV
- Conductor: Class 5 flexible tinned copper
- Insulation: HF (Halogen Free) compound based on polyester
- Outer Sheath: PUR HFFR (Polyurethane – Halogen Free, Flame Retardant)
- Temperature Rating:
- Fixed installation: -50°C to +80°C
- Mobile operation: -40°C to +80°C
- Cores: 3,4,5
- Section aera: 1.5mm2-185mm2
- Application: For use as energy and control cable in festoon systems and as a chain cable. Also suitable as drum reeling cable under moderate mechanical stresses, torsion, tension and torque.
PUR Spreader LV Reeling Cable
- Voltage Rating (Uo/U): 0.6/1kV
- Conductor: Class 5 flexible tinned copper
- Insulation: Halogen free compound based on polyester
- Lay Up: Central Aramid strength member, cores in concentric layers
- Inner and Outer Sheath: PUR-HF (Halogen Free, flame retardant Polyurethane)
- Braiding: Anti-twisting element – Aramid yarns braiding
- Sheath Colour: Black, Yellow or Orange.
- Reeling Application: Up to 240m/min horiz. / Up to 180m/min vertica
- Application: Vertical reeling cable under high mechanical stresses, torsion, tension and torque. Mainly used for spreader reeling applications. Strength member to increase tensile load, acceleration and speed
Medium Voltage Material Handling Equipment (N)TSCGEWÖU Cable
- Voltage Rating (Uo/U): 3.6/6kV; 6/10kV, 8.7/15kV, 12/20kV.
- Phase/Earth Conductor: Class 5 flexible tinned copper/Copper
- Insulation: Rubber compound
- Inner Sheath: Rubber compound
- Section area: 25-185mm2
- Cores: 3+3
- Maximum Short Circuit Temperature: 250°C
- Mobile Condition: +25°C to + 80°C
- Static Condition: +40°C to + 80°C
- Application: Flexible cable for fixed distribution lines in mines and alongside material handling equipment. Suitable for indoor and outdoor applications
Get quote by email: trade@huadongcablegroup.com
Crane Cable Product Range
Some of the crane cables most frequently specified within our portfolio include
| Crane Cable Product | Application Overview |
| YSLTOE cable | Spreader cable for gravity-fed collector buckets |

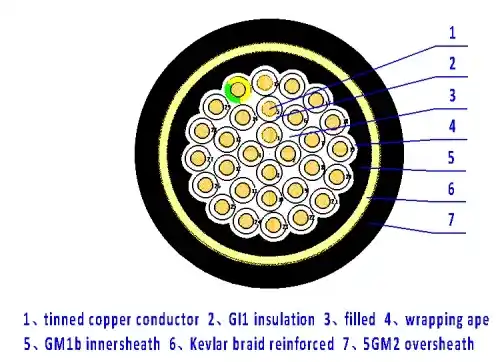

| NSHTOU cable | Drum winding cable |

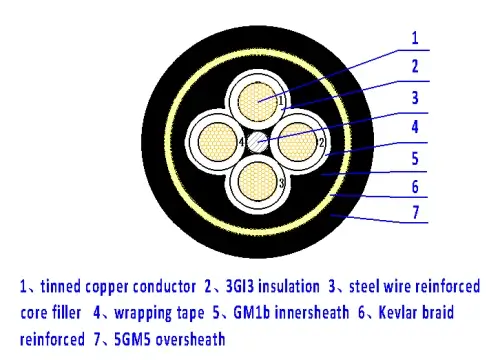

| (N)SHTOU cable | Drum winding cable with increased tensile strength |
| (N)SHTOU PUR cable | Drum winding cable with Polyurethane sheathing |
| (N)GRDGOU cable | Festoon cable |
| PUR-HF Festoon cable | Festoon cables including EMC protected cables |
Learn More Flexible Rubber Cable
- Flexible PVC/Rubber Sheath Welding Cable
- Waterproof Subermersbile Pump Cable
- Resistance Oil and Water SJOOW/SOOW/SJO Cable
- H07RN-F Heave Duty Mobile Equipmen Rubber Cable
- SJOOW/SOOW/SJO Cable
- Trailing Cable with Optical Fiber Composite Cable
- Reeling/Festoon Crane Cable
- Welding Cable
- Pendant Hoist Cable
- Spreader Basket Cable
- PNCT Rubber Cable Used for Machine Equipment
- Rubber Cable Products List

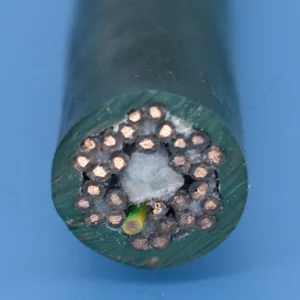

Towline cable pvc insulated for crane cable
- Specification:
- 1. conductor: Bare or Tinned stranded copper conductor, UL758
- 2. insulation: special PVC
- 3. jacket:PUR
- 4. Fixed Installation: -40°C to +90°C
- Movable Installation: -5°C to +80°C
- Application:
- PUR cable for static application in ground, in water, within facilities, in cable canals, in concrete, where heavier mechanical stresses are not expected, and the cable has to be protected against mechanical damages, also in conditions where cables are not exposed to heavier tensile strains. Used in electric power plants, transformer stations, industrial plants, metropolitan networks and in other electric plants where heavier current and thermal loads are expected.

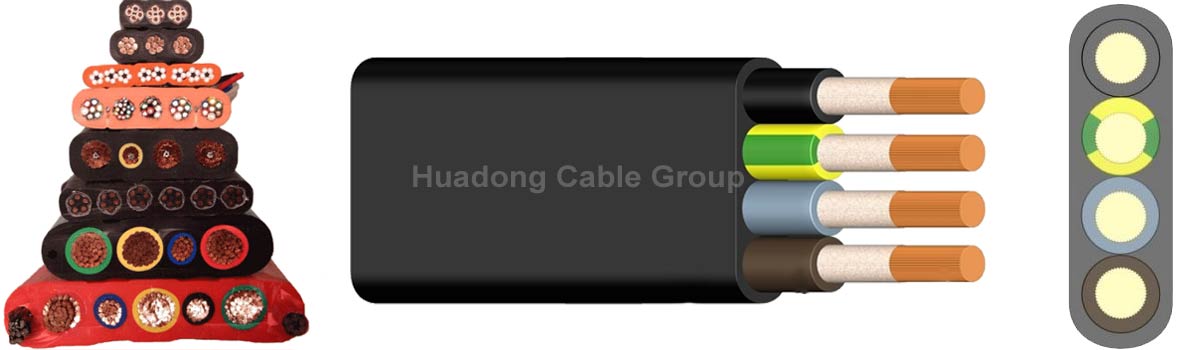

Flat Reeling/Festoon Rubber Crane Cable
- Voltage: 300/500V; 450/750V; 0.6/1kv
- Types: H07VVH6-F, YFFB, HT-PNCT; HT-PNCT-R;HT-PNCT-F,etc. other types can be produced according to client’s.
- Conductor: Class 5 Copper/Tinned Copper
- Insulation: Rubber/EPR
- Cores: Multi-Core
- Ingernation Standard: VDE0482,part 265-2-1 resp.EN50265-2-1 and IEC603321
- Application: For the connection of mobile parts of machine tools, conveyor plants andlarge-scale equipment, if the cable is exposed to bends in only one level (cable trolley). In dry, damp and wet rooms as well as outdoors.

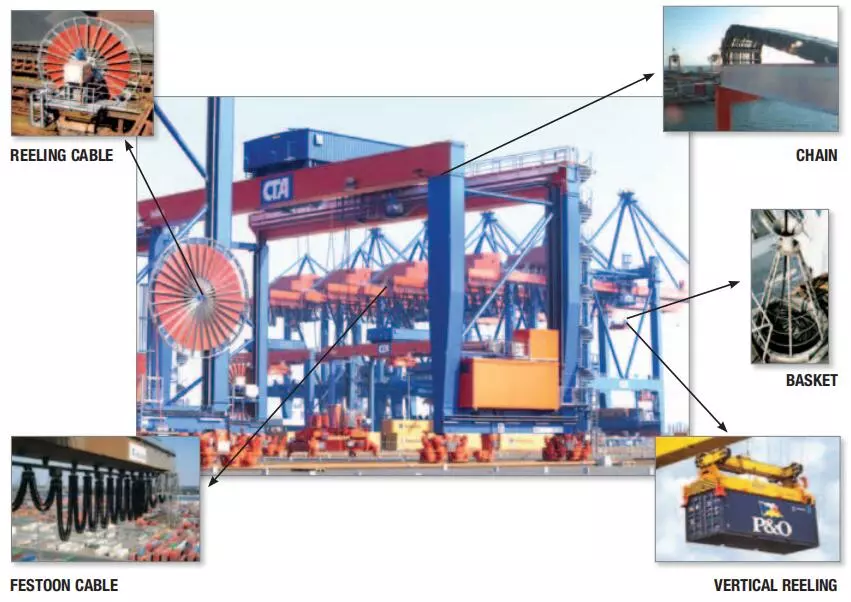

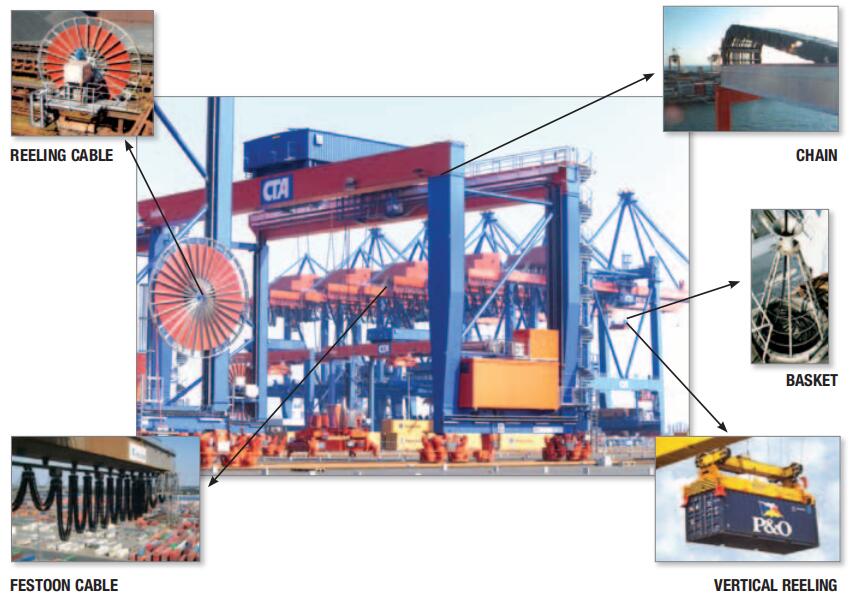

The diagram of crane cable application
