The H07RN-F cable is designed primarily as a trailing cable for use in the supply of energy for portable or mobile equipment. Heavy duty Harmonized cables are not only robust but also extremely flexible. PCP neoprene is also oil and flame retardant. Typical applications of the H07RN-F cable include transformers, pumps, welders, grinders, temporary lighting cable and feed cables to heavy mobile equipment.

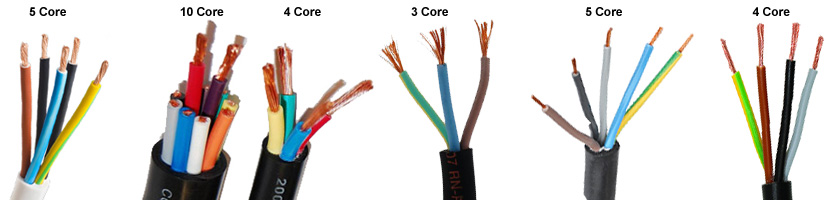

Construction decription of flexible H07RN-F Rubber Cable
- Voltage: 450/750V
- Conductor: Class 5 flexible plain copper to BS EN 60228:2005(previously BS6360)
- Cores: 1Core~12Cores
- Cross-sectional area: 0.75~240mm2
- Insulation: EPR(Ethylene Propylene Rubber) Type E14 to BS7655
- Sheath: PCP(Polychioroprene) Type EM3 to BS7655
- Sheath Color: Black
- Temperature Rating: conductor operation temperature -30°C to +60°C(85°C max)
- Minimum Bending Radius: Up to 25mm2:6xoverall diameter; Above to 25mm2:8xoverall diameter
- Standards: BS7919 CENELEC HD22 4S4

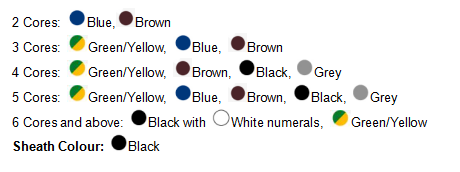

- Core identification:
Learn More Flexible Rubber Cable
- Flexible PVC/Rubber Sheath Welding Cable
- Waterproof Subermersbile Pump Cable
- Resistance Oil and Water SJOOW/SOOW/SJO Cable
- H07RN-F Heave Duty Mobile Equipmen Rubber Cable
- SJOOW/SOOW/SJO Cable
- Trailing Cable with Optical Fiber Composite Cable
- Reeling/Festoon Crane Cable
- Welding Cable
- Pendant Hoist Cable
- Spreader Basket Cable
- PNCT Rubber Cable Used for Machine Equipment
- Rubber Cable Products List
Get quote by email: trade@huadongcablegroup.com
The H07RN-F Flexible Rubber Cable Parameter Sheet
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA | NOMINAL THICKNESS OF INSULATION | NOMINAL OVERALL DIAMETER | NOMINAL WEIGHT |
| mm² | mm | mm | kg/km | |
| 4 | 6 | 1 | 16.4 | 449 |
| 4 | 10 | 1.2 | 21.8 | 833 |
| 4 | 16 | 1.2 | 25.4 | 1138 |
| 4 | 25 | 1.4 | 30.7 | 1714 |
| 4 | 35 | 1.4 | 33.4 | 2204 |
| 4 | 50 | 1.6 | 39.6 | 3029 |
| 4 | 70 | 1.6 | 44.9 | 4121 |
| 4 | 95 | 1.8 | 51.9 | 5361 |
| 4 | 120 | 1.8 | 61.3 | 7400 |
| 5 | 2.5 | 0.9 | 14 | 297 |
| 5 | 4 | 1 | 16.2 | 422 |
| 5 | 6 | 1 | 18.2 | 567 |
| 5 | 10 | 1.2 | 24 | 1010 |
| 5 | 16 | 1.2 | 28.2 | 1400 |
| 5 | 25 | 1.4 | 33.9 | 2096 |
| 5 | 35 | 1.4 | 37.2 | 2700 |
| 5 | 50 | 1.6 | 44 | 3730 |
| 5 | 70 | 1.6 | 54 | 4945 |
| 5 | 95 | 1.8 | 63 | 6430 |
| 7 | 2.5 | 0.9 | 17.6 | 445 |
| 12 | 2.5 | 0.9 | 21.4 | 702 |
